Lantronix

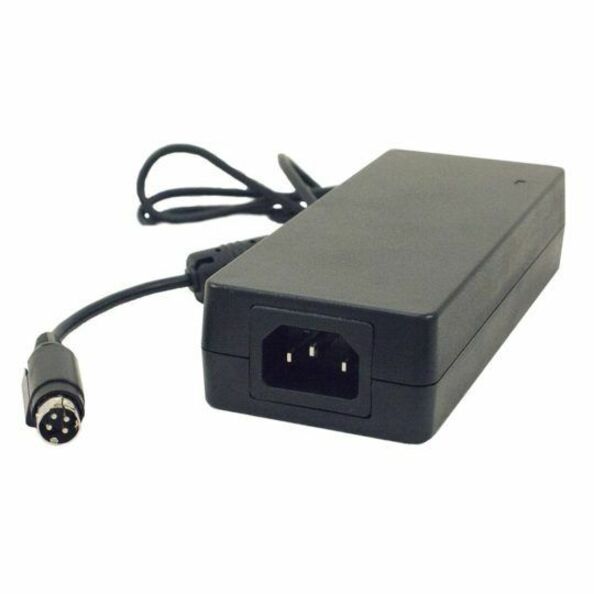

Lantronix 90 W 48 V Level VI AC adapter with Kycon KPPX-4P connector

Lantronix 25148-NA — 90 W 48 V Level VI AC Adapter

Lantronix|

MPN: 25148-NA

|

UPC: 648177040834

Low Stock (1 left)
$61.85$91.00

Ships from and sold by A5 IT

Request for QuoteCall 224-312-2244 for Sales
Free 2-3 Day ShippingArrives by Thursday, Oct 15
New, with full manufacturer warranty

Key Features

  • 90 W maximum output power for compatible equipment
  • 48 V DC output at up to 1.87 A
  • 90 ~ 264 VAC; 127 ~ 370 VDC input range
  • Kycon KPPX-4P connector for systems that require that connector
  • 3 pole AC inlet IEC320-C14
  • Level VI energy efficiency classification
  • -30°C to +70°C operating temperature
  • Deliver stable device power using 90 W output
Lantronix 25148-NA is a 90 W AC adapter for equipment that requires 48 V DC output and a Kycon KPPX-4P connector. The supplied data lists 1.87 A maximum output current. It accepts 90 ~ 264 VAC or 127 ~ 370 VDC input and uses a 3 pole AC inlet IEC320-C14. The adapter is listed with Level VI energy efficiency and Class 1 power with earth pin. The source data lists power injector support and identifies EOCPSE4020-110 and EOCPD4020-110 as compatible PoE injector models.

Ideal For

  • Replacement power for EOCPSE4020-110 and EOCPD4020-110 PoE injectors
  • Spare adapter stocking for equipment that requires 48 V DC output and a Kycon KPPX-4P connector
  • Procurement standardization around a 90 W, Level VI AC adapter
  • Power supply replacement where 90 ~ 264 VAC or 127 ~ 370 VDC input is required

Specifications

Depth2.4"
Width5.7"
Height1.3"
Weight15.84 oz
AC Inlet3 pole AC inlet IEC320-C14
ConnectorKycon KPPX-4P
ProtectionShort circuit/overload/over voltage/over temperature protection
Output Voltage48 V DC
AC Input Voltage90 ~ 264 VAC
DC Input Voltage127 ~ 370 VDC
Device SupportedPower Injector
Energy EfficiencyLevel VI
Maximum Output Power90 W
Operating Temperature-30°C to +70°C
Maximum Output Current1.87 A
Environmental ComplianceWEEE; RoHS

Frequently Asked Questions

What output does this adapter provide?▾

It provides 48 V DC output, up to 90 W maximum output power and 1.87 A maximum output current.

What input voltage does it support?▾

The input range is 90 ~ 264 VAC or 127 ~ 370 VDC.

Which PoE injector models are listed as compatible?▾

The supplied compatibility data lists EOCPSE4020-110 and EOCPD4020-110 PoE injectors.

What connector and AC inlet are listed?▾

The source data lists a Kycon KPPX-4P connector and a 3 pole AC inlet IEC320-C14.
