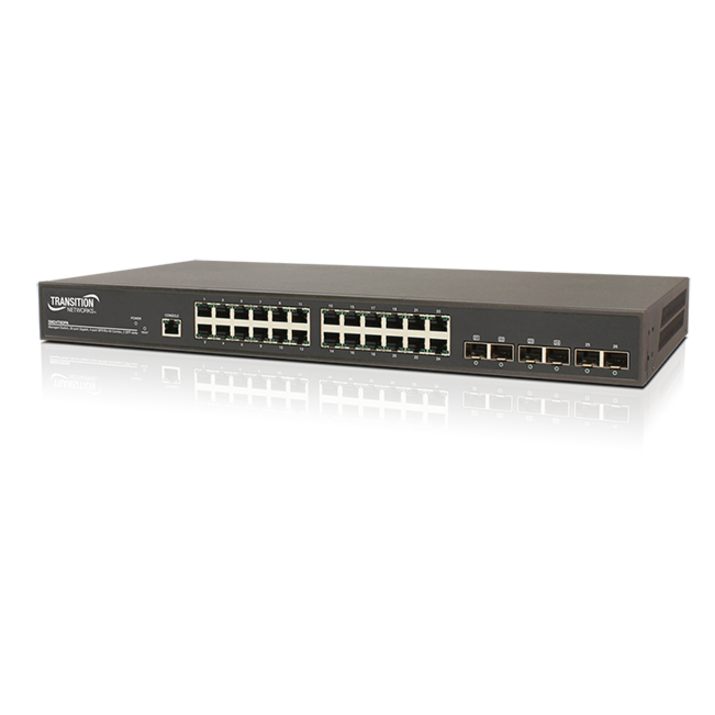

Lantronix SM24T6DPA-NA managed Layer 2 Gigabit Ethernet switch

Lantronix SM24T6DPA-NA — Managed Layer 2 Gigabit Switch

Name: Lantronix SM24T6DPA-NA — Managed Layer 2 Gigabit Switch
Brand: Lantronix
SKU: SM24T6DPA-NA
Price: 627.00 USD
Availability: InStock

Lantronix|

MPN: SM24T6DPA-NA

UPC: 648177039852

Low Stock (6 left)

$627.00

Ships from and sold by A5 IT

Request for QuoteCall 224-312-2244 for Sales

Free 2-3 Day Shipping within the United StatesArrives by Thursday, Oct 29

New, with full manufacturer warranty

Key Features

20 10/100/1000 RJ-45 ports connect copper Ethernet devices
4 100/1000 SFP/RJ-45 combo ports support flexible copper or fiber use
2 100/1000 SFP slots provide additional fiber connectivity
52 Gbps backplane supports access-layer switching capacity
Web Management, SNMP V1/V2c/V3, Telnet, and CLI provide switch management options
IPv4/IPv6 dual protocol stack and IPv4 / IPv6 Static Routing are supported
Rack-mountable form factor includes rack mount brackets
Connect high-density endpoints with 24 Gigabit copper ports

The Lantronix SM24T6DPA-NA is a managed Layer 2 Gigabit Ethernet switch for mixed copper and fiber access networks. It provides (20) 10/100/1000 RJ-45 ports, (4) 100/1000 SFP/RJ-45 combo ports, and (2) 100/1000 SFP slots. The switch uses a Store-and-Forward switching architecture with a 52 Gbps backplane and an 8K MAC address table. Software features include Web Management, SNMP V1/V2c/V3, Telnet, CLI, IEEE 802.3ad port trunk with LACP, IGMP Snooping V1/V2/V3, spanning tree support, VLAN features, and firmware update plus configuration backup/restore through TFTP and HTTP. Network control features include IPv4/IPv6 dual protocol stack, Jumbo Frame up to 9K bytes, RADIUS IEEE 802.1X, TACACS+, SSH, DHCP Relay including option 82, LLDP, IP Source Guard, Port Security, DHCP Server, Single IP Management, and Device Management System (DMS). The rack-mountable chassis lists 100-240VAC power input and operates from 0°C to 50°C.

Ideal For

Access-layer switching for mixed copper and fiber Ethernet networks
Rack-mounted deployment in wiring closets and equipment rooms
Network designs that need 100/1000 SFP uplinks with SFP/RJ-45 combo flexibility
Managed Layer 2 networks using VLAN, IGMP, spanning tree, and SNMP management

Specifications

Igmp	Support IGMP Snooping V1/V2/V3, GVRP, IGMP Proxy, and IGMP Querier
Humidity	5% to 90% (non-condensing)
Backplane	52 Gbps
SFP+ Slots	(2) 100/1000 SFP slots
Dimensions	17.4” [442 mm] x 8.3” [211 mm] x 1.73” [44 mm]
Management	Web Management, SNMP V1/V2c/V3, Telnet, CLI
Port Trunk	Supports IEEE 802.3ad port trunk with link aggregation control protocol (LACP) and static trunk
Jumbo Frame	Up to 9K bytes
Power Input	100-240VAC
RJ-45 Ports	(20) 10/100/1000 RJ-45 ports
Spanning Tree	Supports IEEE 802.1s MSTP, IEEE 802.1w RSTP and IEEE 802.1D STP Compliant
Layer Supported	2
Rj Console Port	(1) RJ console port
Mac Address Table	8K MAC address table
EMC Certifications	EN55022 Class A, IEC61000-3, EN55025, IEC61000-4, CISPR PUB.22 Class A, FCC Part 15, ICES-003 Class A
Network Technology	1000Base-X
Quality Of Service	Supports 8 egress queues per port enable differentiated management of up to 8 traffic types across the stack. Strict priority and WRR
Ethernet Technology	Gigabit Ethernet
Operating Temperature	0°C to 50°C
Safety Certifications	IEC 62368-1/EN62368-1, UL Listed
SFP+ RJ-45 Combo Ports	(4) 100/1000 SFP/RJ-45 combo ports
Switching Architecture	Store-and-Forward switching architecture

Documentation

Product Brief

SM24T6DPA Product Brief (A4)

SM24T6DPA Datasheet (PDF 201.90 KB)

Installation Guide Rev C (PDF 837.00 KB)

CLI Reference Guide Rev C (PDF 1.98 MB)

Web User Guide Rev D (PDF 9.27 MB)

SM24T6DPA Quick Start Guide Rev C

Frequently Asked Questions

What ports are on the SM24T6DPA-NA?▾

It provides (20) 10/100/1000 RJ-45 ports, (4) 100/1000 SFP/RJ-45 combo ports, and (2) 100/1000 SFP slots.

How can this switch be managed?▾

Management options include Web Management, SNMP V1/V2c/V3, Telnet, and CLI. The switch also supports Single IP Management and Device Management System (DMS).

Does it support IPv6?▾

Yes. The supplied Lantronix data lists support for the IPv4/IPv6 dual protocol stack and IPv4 / IPv6 Static Routing.

What is included for rack installation?▾

The listed package contents include the managed Layer 2 switch, rack mount brackets, and a power cord. The Lantronix part table also states that 19″ rack mount brackets are included.
