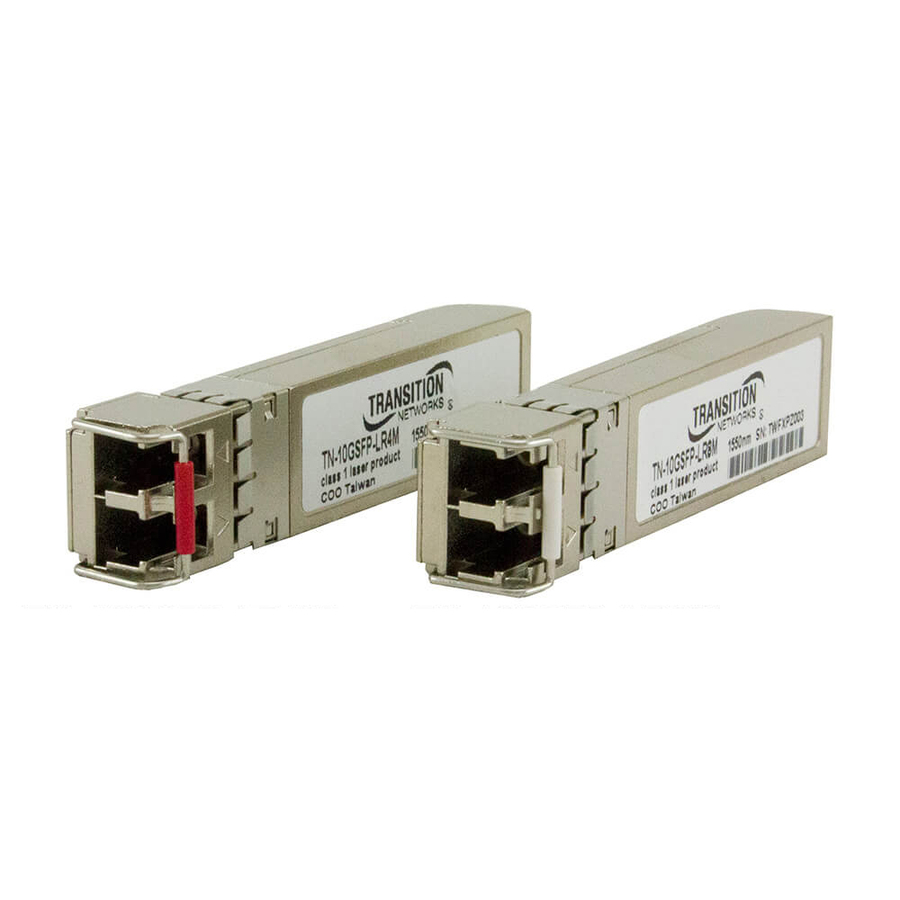

Lantronix TN-10GSFP-LR1M — TN-10GSFP-LRxM Series SFP+ Transceiver 10Gbase-LR/1000Base-LX
$350.74$522.50
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10Gbase-LR/1000Base-LX support for 10.3 Gbps / 1.25 Gbps data rates
- 1310nm single mode LC interface with 10km/6.2 mi. link length
- SFF-8472 Digital Diagnostic Function (DMI)
- SFF-8431 and SFF-8432 compliant SFP+ design
- MSA compatible 10G Small Form-Factor Pluggable (SFP+) module
- Single +3.3 V Power Supply
- 9.0 dB Link Budget
Lantronix TN-10GSFP-LR1M is a TN-10GSFP-LRxM Series SFP+ optical transceiver for 10Gbase-LR/1000Base-LX single mode fiber links with an LC interface. It uses 1310nm optics and supports 10km/6.2 mi. link length with a 9.0 dB Link Budget. The module is MSA compatible and includes SFF-8472 Digital Diagnostic Function (DMI). It is SFF-8431 and SFF-8432 compliant. Series specifications include 10.3 Gbps / 1.25 Gbps data rates, a single +3.3 V power supply, 0°C to 70°C operating temperature, and Lifetime warranty.
Ideal For
- 1G/10G optical network links over single mode fiber
- 10Gbase-LR connections using LC fiber interfaces
- 1000Base-LX single mode fiber connections
- Data networking deployments that require SFP+ Digital Diagnostic Function (DMI)
Specifications
| Series | TN-10GSFP-LRxM Series |
| Warranty | Lifetime |
| Standards | IEEE 802.3ae; IEEE 802.3z |
| Compliance | SFF-8431 and SFF-8432 Compliant |
| Data Rates | 10.3 Gbps / 1.25 Gbps |
| Fiber Mode | Single mode |
| Wavelength | 1310nm |
| Form Factor | SFP+ |
| Link Budget | 9.0 dB |
| Power Supply | +3.3V |
| Certifications | IEC-60825, FAD 21, CFR 1040.10 and 1040.11 |
| Connector Type | Duplex LC |
| Network Technology | 10Gbase-LR/1000Base-LX |
| Maximum Link Length | 10km/6.2 mi. |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 70°C |
| Environmental Compliance | RoHS Compliant |
| Digital Diagnostic Function | SFF-8472 Digital Diagnostic Function (DMI) |
| Dimensions Width X Depth X Height | 0.52” [13 mm] x 2.2” [56 mm] x 0.33” [8 mm] |
Frequently Asked Questions
What network technologies does TN-10GSFP-LR1M support?▾
TN-10GSFP-LR1M supports 10Gbase-LR/1000Base-LX with data rates of 10.3 Gbps / 1.25 Gbps.
What fiber type, wavelength, and distance does it use?▾
This SKU uses 1310nm single mode optics with an LC interface and supports 10km/6.2 mi. link length.
Does this SFP+ transceiver include DMI?▾
Yes. The TN-10GSFP-LRxM Series includes SFF-8472 Digital Diagnostic Function (DMI).
What is the temperature range?▾
The operating temperature is 0°C to 70°C. The storage temperature is -40°C to 85°C.
