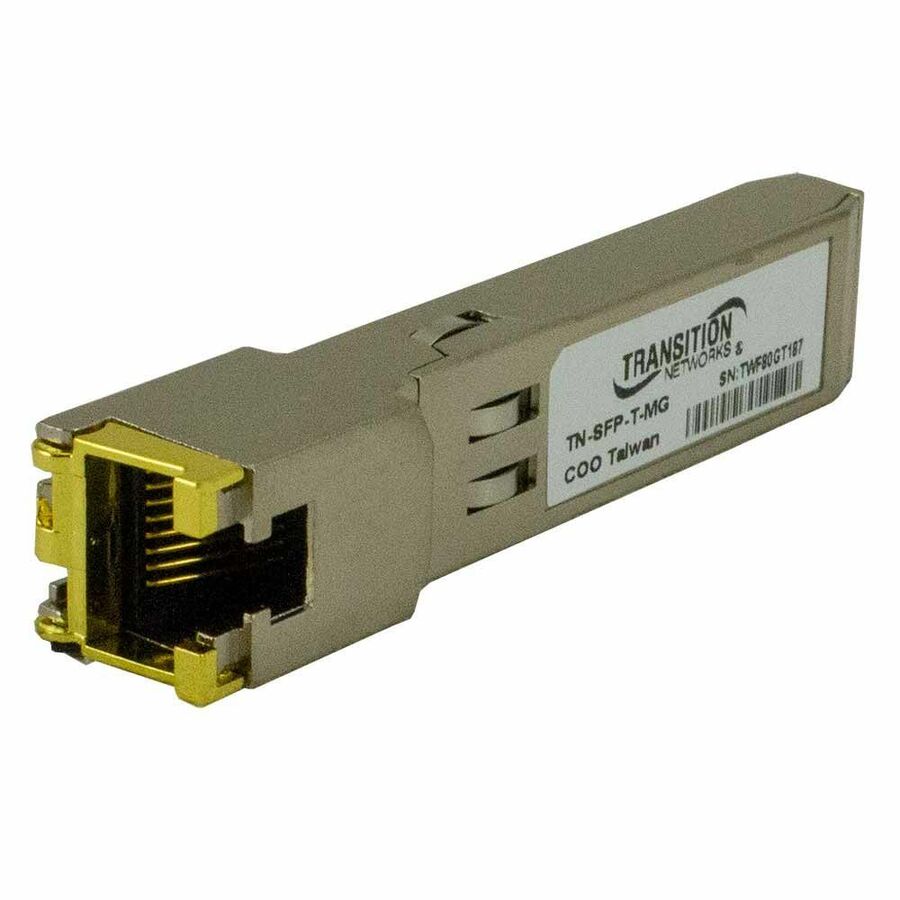

Lantronix TN-SFP-T-MG — RJ-45 Copper SFP Module
$176.00
Ships from and sold by A5 IT
Free 2-3 Day Shipping within the United StatesArrives by Thursday, Oct 29
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T RJ-45 interface with 100 m/328 ft. reach
- 1 x RJ-45 Network LAN port for twisted pair media
- Hot-pluggable SFP footprint optical transceiver form factor
- Digital Diagnostic Function included
- MSA compatibility with the SFP Multi-Sourcing Agreement (MSA)
- 3.3V power input with 0.66 Watts power consumption
- 0°C to 70°C operating environment
Lantronix TN-SFP-T-MG is an MSA Compliant 10/100/1000Base copper SFP module with an RJ-45 interface. It supports 10/100/1000Base-T over twisted pair media with a listed reach of 100 m/328 ft. The module is listed with a hot-pluggable SFP footprint, Digital Diagnostic Function, and compatibility with the SFP Multi-Sourcing Agreement (MSA). TN-SFP-T-MG uses 3.3V power input, has 0.66 Watts power consumption, and operates from 0°C to 70°C. Listed certifications include IEC-60825, FDA 21, CFR 1040.10 and 1040.11, with a Lifetime warranty.
Ideal For
- Router data networking with an RJ-45 SFP interface
- Switch 10/100/1000Base-T twisted pair links
- xDSL application data networking
- Copper SFP links up to 100 m/328 ft
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Warranty | Lifetime |
| Standards | IEEE 802.3z |
| Form Factor | Hot-pluggable |
| Power Input | 3.3V |
| Compatibility | MSA Compliant |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | RJ-45 |
| Power Consumption | 0.66 Watts |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Operating Temperature | 0°C to 70°C |
| Interfaces Ports Details | 1 x RJ-45 10/100/1000Base-T Network LAN |
| Maximum Distance Supported | 100 m/328 ft |
Frequently Asked Questions
What interface does the TN-SFP-T-MG provide?▾
It provides 1 x RJ-45 10/100/1000Base-T Network LAN interface for twisted pair media.
What distance does this SFP module support?▾
The listed reach is 100 m/328 ft.; Etilize also lists the maximum distance supported as 0.10 km.
Is the TN-SFP-T-MG hot-pluggable and MSA compliant?▾
Yes. The module is listed as hot-pluggable and compatible with the SFP Multi-Sourcing Agreement (MSA).
What are the power and operating temperature specifications?▾
The listed power input is 3.3V, power consumption is 0.66 Watts, and the operating environment is 0°C to 70°C.
