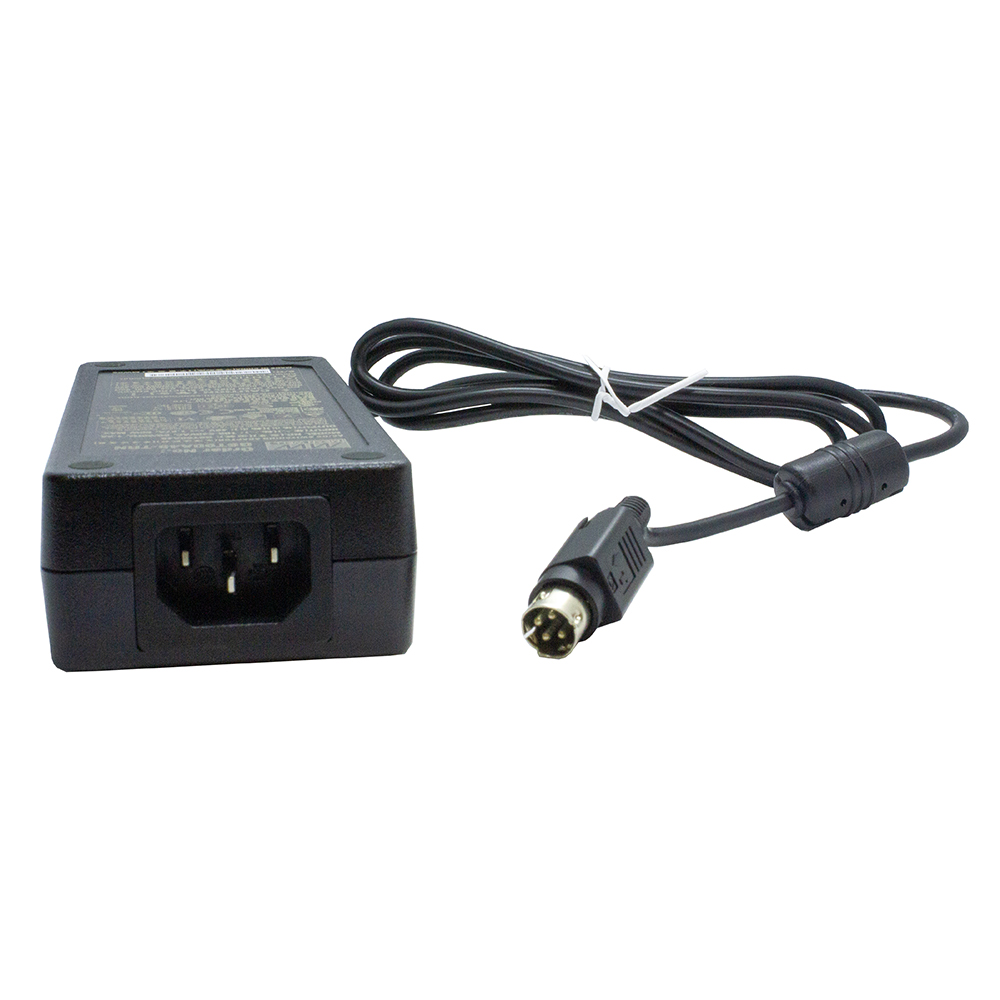

Lantronix 25148 — 90W 48V Industrial Power Supply
$65.39$91.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 90W max rated power for 48V output
- 90-264VAC, 127-370VDC input voltage
- 1.87A rated current with 0-1.87A current range
- 4-pin DIN plug connector with UL1185 16AWG cable
- -30°C to +70°C operating temperature
- Energy efficiency Level VI
- Short circuit/overload/over voltage/over temperature protection
Lantronix 25148 is an industrial power supply for media converter accessory deployments. It accepts 90-264VAC or 127-370VDC input and provides 48V output with 90W max rated power. Power design details include a 4-pin DIN plug, UL1185 16AWG cable, built-in active power factor controller function and Energy efficiency Level VI. It is specified for -30°C to +70°C operating temperature, with short circuit/overload/over voltage/over temperature protection and an LED power on indicator.
Ideal For
- Powering EOCPx Series Ethernet Over Coax Extender With PoE+ installations
- Powering EO2Px Series Ethernet Over 2-Wire Extender With PoE+ installations
- Deployments that require 90-264VAC or 127-370VDC input
- Industrial environments specified for -30°C to +70°C operating temperature
Specifications
| MTBF | 348.7K hours min MIL-HDBK-217F (25°C) |
| Cable | UL1185 16AWG |
| Weight | 0.99 lbs. [0.45 kg] |
| Humidity | 20% to 90% (non-condensing) |
| Connector | 4-pin DIN plug (see plug assignment) |
| Emissions | EN55022 class B, EN61000-3-2,3, FCC Part 15/CISPR22 class B, CNS13438 class B, GB9254, GB17625.1 |
| Vibration | 10-500Hz, 2G 10min/1 cycle period for 60 min each along X,Y,Z axes |
| AC Current | 1.3A/115VAC typical; 0.6A/230VAC typical |
| Dimensions | 5.71” [145 mm] x 2.36” [60 mm] x 1.26” [32 mm] |
| Efficiency | 91% typical |
| Rated Power | 90W (max) |
| Hold Up Time | 20ms/230VAC typ; 20ms/115VAC at full load typical |
| Ripple Noise | 240mVp-p (max) (Measured at 20MHz by using a 12” twisted pair terminated with a 0.1uf &47uf capacitor) |
| Current Range | 0-1.87A |
| Input Voltage | 90-264VAC, 127-370VDC (Derating may be needed under low input voltages. Check the derating curve for more details.) |
| Rated Current | 1.87A |
| Inrush Current | 70A/230VAC (max) |
| Output Voltage | 48V (Output voltage set at point measure by plug terminal +50% load) |
| Leakage Current | 1mA/240VAC (max) |
| Line Regulation | ±1.0% (Line regulation is measured from low line to high line at rated load) |
| Load Regulation | ±2.5% |
| Setup Rise Time | 1000ms, 50ms/230VAC; 1000ms, 50ms/115VAC at full load (Length of setup time is measured at first cost start. Turning ON/OFF the power supply may lead to increase of the setup time) |
| Voltage Tolerance | ±2.5% (Includes set up tolerance, line regulation, load regulation) |
| Withstand Voltage | I/P-O/P: 3KVAC, I/P-FG: 2KVAC. O/P-FG: 0.5KVAC |
| Storage Temperature | -40°C to +85°C |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25°C/70%RH |
| Input Frequency Range | 47-63 Hz |
| Operating Temperature | -30°C to +70°C (See derating curve) |
| Safety Certifications | UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS 14336, CCC Gb4943, PSE J60950-1, AS/NZS 60950.1 approved |
| No Load Power Consumption | ≤0.15 Watts |
Documentation
Frequently Asked Questions
What input voltage does Lantronix 25148 support?▾
Lantronix 25148 supports 90-264VAC and 127-370VDC input. Derating may be needed under low input voltages.
What output does this power supply provide?▾
It provides 48V output with 1.87A rated current and 90W max rated power.
What connector and cable are specified?▾
The connector is a 4-pin DIN plug, and the cable is UL1185 16AWG.
Which Lantronix products is 25148 listed with?▾
Lantronix lists it with EOCPx Series Ethernet Over Coax Extender With PoE+ and EO2Px Series Ethernet Over 2-Wire Extender With PoE+ compatible products.
