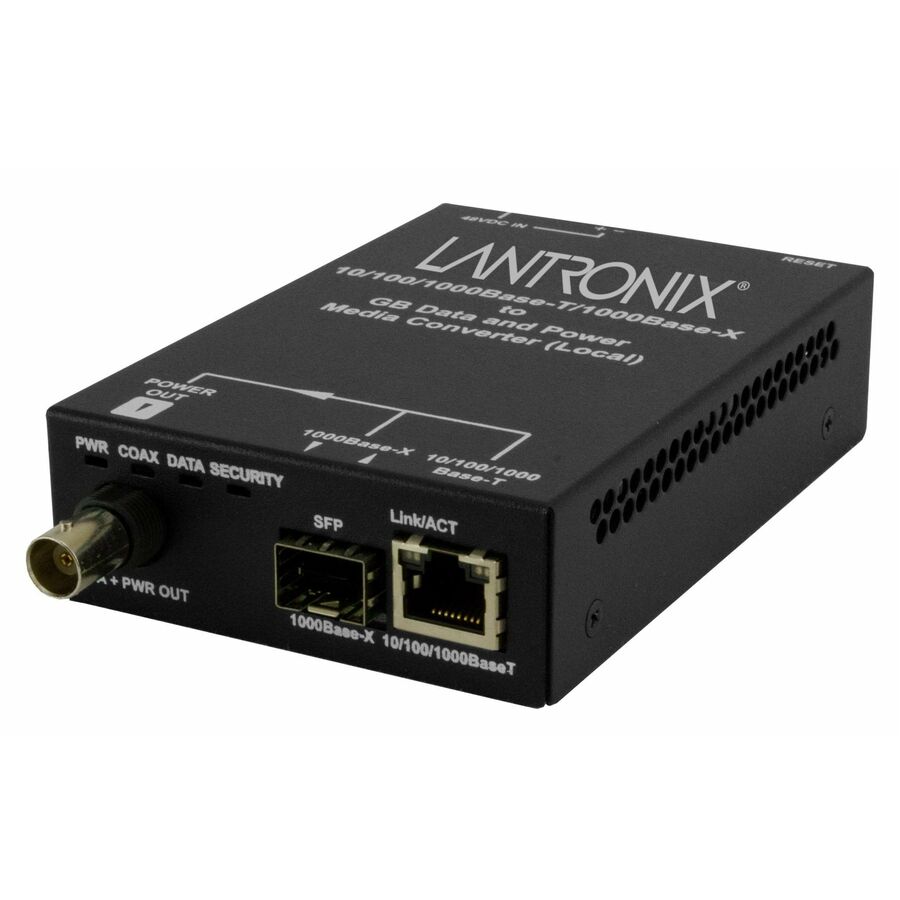

Lantronix EOCPSE4020-110 EOCPx Ethernet Over Coax PoE+ Local Unit

Lantronix EOCPSE4020-110 — EOCPx Series Local Ethernet Over Coax Extender With PoE

Lantronix|

MPN: EOCPSE4020-110

|

UPC: 648177040452

Available on Backorder
$366.50$545.00

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty

Key Features

  • 10/100/1000Base-T RJ-45 or 100/1000Base-X SFP Combo Ethernet port connects to copper or fiber network equipment
  • 1000Base BNC coax port provides a Gigabit BNC connection with power over coax to the Remote device
  • Full PoE+ at 400 ft. or less is dependent on cable type
  • Coax distance in excess of 1000 ft. at near Gigabit speeds or 2000 ft. at Fast Ethernet speeds is dependent on remote power requirements
  • Web GUI provides password-protected configuration for both Local and Remote devices through a single IP address
  • 128 Bit AES encryption over coax supports protected coax communication
  • IPv4 and IPv6 support is included
Lantronix EOCPSE4020-110 is the Local device for the EOCPx Series Ethernet Over Coax Extender With PoE+. It connects to Ethernet network equipment through a 10/100/1000Base-T RJ-45 or 100/1000Base-X SFP Combo port and provides a 1000Base BNC coax connection to the Remote device. The EOCPx Series helps upgrade older analog surveillance systems with PoE powered IP video cameras without replacing the existing CCTV 75 ohm coax infrastructure. The extenders can also extend Ethernet networks over existing coax infrastructure in applications beyond surveillance. EOCPx extenders are used as a pair, with a Local device at one end and a Remote device at the other end of the coax cable. The Remote device receives power over coax through the BNC connection and provides Ethernet output with PoE+ power for IP cameras, wireless access points or other PoE powered end devices. A web GUI provides password-protected access to configuration options for both devices through a single IP address and supports firmware upgrades.

Ideal For

  • Upgrading older analog surveillance systems with PoE powered IP video cameras without replacing existing CCTV 75 ohm coax infrastructure
  • Extending Ethernet networks over existing coax infrastructure
  • Providing power over coax from the Local device to the Remote device
  • Connecting to copper or fiber Ethernet network equipment through the combo Ethernet port

Specifications

MTBFGreater than 200,000 MIL-HDBK-217F Hours
SafetyExternal Power Supply: CE Mark
Weight1.05 lbs. [0.48 kg]
Altitude0 – 10,000 ft
Humidity5% to 95% (non-condensing)
ImmunityEN55024
Warranty5 Years
Coax Port1000Base BNC
EmissionsFCC Part 15, CISPR22/EN55022 Class A
StandardsIEEE 802.1p; IEEE 802.1Q; IEEE 802.3; IEEE 802.3ab; IEEE 802.3af/at; IEEE 802.3az; IEEE 802.3u; IEEE 802.3x; IEEE 802.3z
Dimensions3.25” [82.5 mm] x 1.25″ [31.75 mm] x 5.38” [136.7 mm]
Power Input48 VDC
Status LedsPower, Coax Power, Coax ACT, Coax Security, Combo Port Link/ACT, PoE+
Ethernet Port10/100/1000Base-T RJ-45 or 100/1000Base-X SFP Combo
Power ConsumptionEOCPSE 4 Watts
Ingress ProtectionIP30
Storage Temperature-40°C to 85°C
Operating Temperature0°C to +65°C (Industrial +85°C SFP modules must be used above 50°C ambient temperature)

Documentation

Additional pdf1

Additional pdf2

Additional pdf3

Additional pdf4

Product Brief

EOCPx Series Product Brief (A4)

PoE Switches & Media Converters Matrix

Comparison of Leading Coax Ethernet Extenders with PoE+ (PDF 246.74 KB)

Deploying IP Devices Using Alternative Cabling Types

PoE Considerations in Ethernet over Coax Applications

Cost Savings with Ethernet Extenders

Frequently Asked Questions

Is EOCPSE4020-110 the Local or Remote unit?▾

EOCPSE4020-110 is the Local device. EOCPx extenders are used as a pair, with a local device at one end and a remote device at the other end of the coax cable.

What ports are on this unit?▾

It provides a 10/100/1000Base-T RJ-45 or 100/1000Base-X SFP Combo Ethernet port and a 1000Base BNC coax port.

Can it use existing CCTV coax cable?▾

Yes. The EOCPx Series uses existing CCTV 75 ohm coax infrastructure to extend the Ethernet network and provide power to remote camera locations.

How is the EOCPx pair configured?▾

The Ethernet Over Coax Extenders With PoE+ are supplied with a web GUI for password-protected access to configuration options of both the Local and Remote devices through a single IP address.
