Lantronix 25165 — 12 V DC DIN Rail Power Supply
$43.74$65.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 12 V DC output with 2 A output current
- 24 W maximum output power
- 120 V AC and 230 V AC input voltage
- DIN Rail form factor for industrial DIN rail mounting
- 88% efficiency
- -30°C to +70°C operating temperature
- UL 60950-1 and UL508 safety approvals

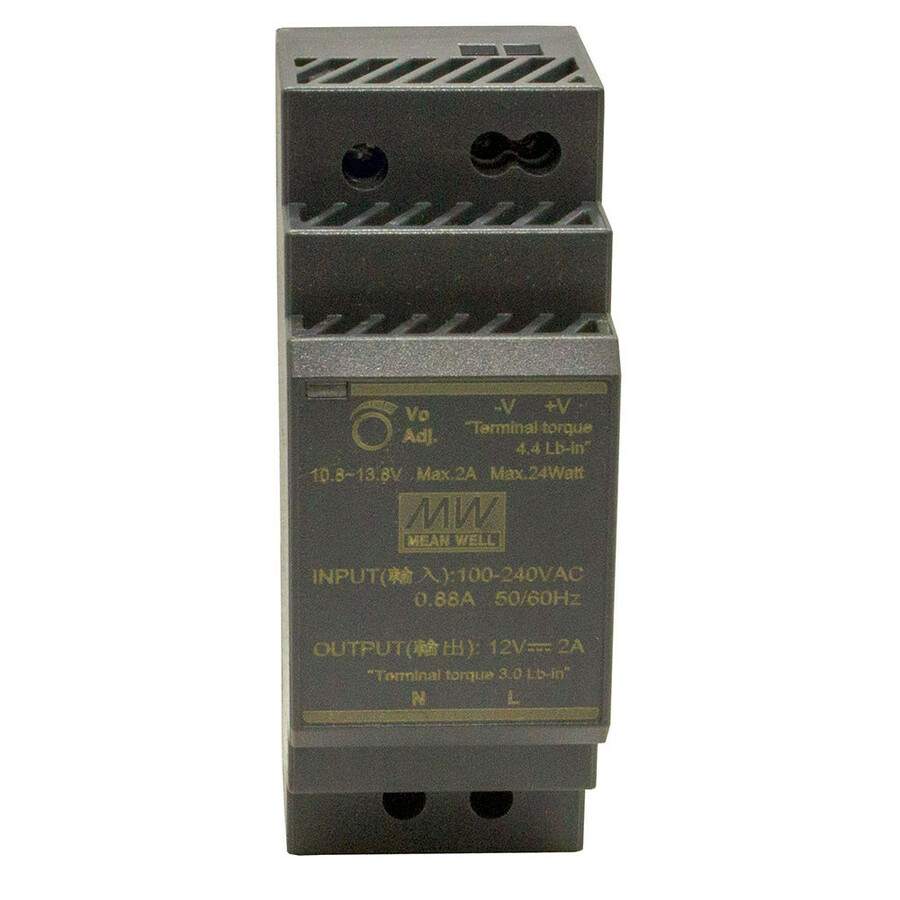

Lantronix MPN 25165 is an Industrial DIN Rail Mounted Power Supply. The catalogue data identifies the unit as MEANWELL HDR-30-12 with 12 V DC, 2 A output and universal AC input.
Ideal For
- Providing 12 V DC power in DIN rail industrial enclosures
- Using 120 V AC or 230 V AC input sources
- Replacing or adding an industrial DIN rail mounted power supply
- Supporting installations specified for -30°C to +70°C operating temperature
Specifications
| Model | MEANWELL HDR-30-12 |
| Weight | 4.16 oz |
| Humidity | 10% to 95% RH (non-condensing) |
| Dimensions | 1.38” [35 mm] x 2.15” [54.5 mm] x 3.54” [90 mm] |
| Efficiency | 88% |
| Form Factor | DIN Rail |
| Output Power | 24 W |
| Input Voltage | 120 V AC; 230 V AC |
| Output Current | 2 A |
| Output Voltage | 12 V DC |
| Limited Warranty | 5 Year |
| Storage Temperature | -40°C to +85°C |
| Operating Temperature | -30°C to +70°C |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS); Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
Frequently Asked Questions
What output does MPN 25165 provide?▾
It provides 12 V DC output at 2 A, with up to 24 W output power.
What input voltages are listed for this power supply?▾
The listed input voltages are 120 V AC and 230 V AC.
How does this power supply mount?▾
It uses a DIN Rail form factor.
What is the operating temperature range?▾
The listed operating temperature is -30°C to +70°C.
