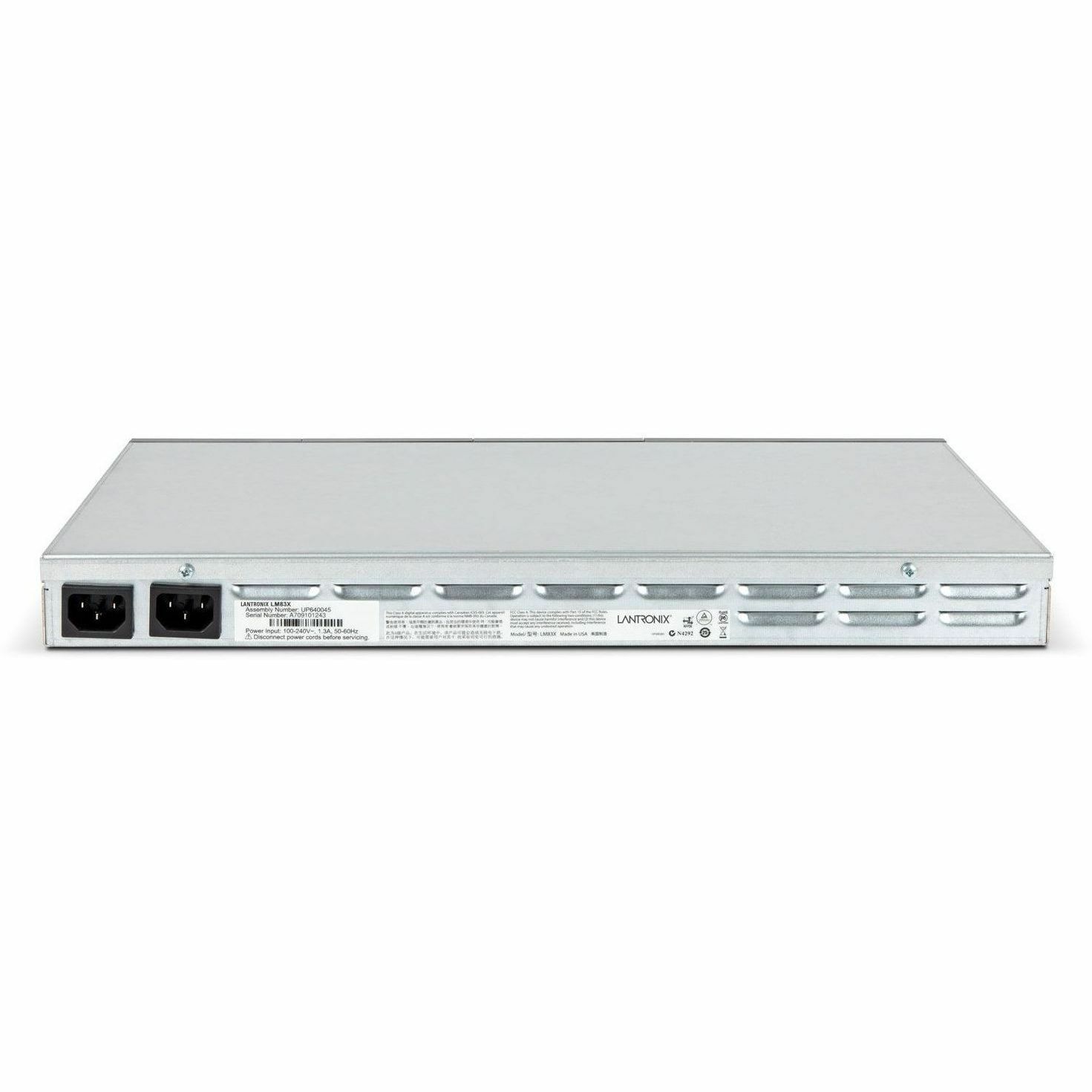

Lantronix 83X-8S-E04-NAA — 8-Port LM83X Console Server
$3,057.87$3,900.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 8 serial ports, 8 dedicated Ethernet ports, LCD module, 3 Ethernet ports, includes LMS
- State-aware console server architecture using rules-based AI to recover and mitigate network infrastructure
- LM83X platform support for up to 104 devices via serial (RS-232)
- Two 10/100/1000 BaseT Ethernet management interfaces with failover support, one RS-232 console port and one SFP port
- 256GB NVMe on-board storage supporting TCG Opal 2.0 and 256-bit AES encryption
- One USB-A port and one USB-C port
- 1RU rack-mountable chassis measuring 43.2 mm (1.7 in.) x 445 mm (17.5 in.) x 264 mm (10.4 in.)
The Lantronix LM83X is a fifth generation Local Manager in the LM-Series. The LM-Series are state-aware console servers—an expert system using rules-based AI to recover and mitigate network infrastructure securely, reliably and automatically. 83X-8S-E04-NAA is the 8-Port LM83X configuration with 8 serial ports, 8 dedicated Ethernet ports, an LCD module, 3 Ethernet ports and LMS. The LM83X platform acts independently from the network to remotely monitor, manage and control devices over serial console connections. The LM83X provides dual Ethernet management, an SFP port, modular out-of-band modem options and three expansion bays for serial and dedicated Ethernet connections. It is built for enterprises and data centers that need out-of-band access and management automation. Administrators can access the LM83X and connected devices directly through the CLI or use the Lantronix Control Center for a single pane of glass to manage LM-Series devices and automate management of connected devices.
Ideal For
- Out-of-band console access for enterprises and data centers
- Remote monitoring, management and control of network infrastructure over serial console connections
- Management of virtual environments and SD-WAN deployments with the LM-Series platform
- Centralized LM-Series device management through the Lantronix Control Center
Specifications
| Lms | Included |
| Safety | TUV RoHS compliant |
| Weight | 3.72 kg (8.2 lbs.) |
| SFP+ Port | One SFP port |
| Warranty | 1 Year |
| Emissions | FCC class A sub part B |
| Operating | 0° C to 45° C (32° F to 113° F) at mean sea level, 20% to 80% relative humidity, non-condensing |
| Lcd Module | Included |
| Usb-a Port | One USB-A port |
| Usb-c Port | One USB-C port |
| Option Slot | One option slot (RS-232; V.92, cellular, and fiber cards available) |
| Serial Ports | 8 |
| Cybersecurity | FIPS 140-2 Level 2 (available) |
| Non-operating | -30° C to 60° C (-22° F to 140° F) at mean sea level, 90% relative humidity, non-condensing |
| Ethernet Ports | 3 |
| On-board Storage | 256GB NVMe supporting TCG Opal 2.0, 256-bit AES encryption |
| RS-232 Console Port | One RS-232 console port |
| AC Model Power Supply | Dual input, (100-240 VAC) 50/60 Hz, 60 W |
| DC Model Power Supply | Dual input, -20 to -72 VDC |
| Serial Device Support | Supports up to 104 devices via serial (RS-232) |
| Height Width And Depth | 43.2 mm (1.7 in.) x 445 mm (17.5 in.) x 264 mm (10.4 in.); 1 rack unit (1RU) |
| Dedicated Ethernet Ports | 8 |
| Ethernet Management Interfaces | Two 10/100/1000 BaseT Ethernet interfaces (with failover support) |
Frequently Asked Questions
What configuration is 83X-8S-E04-NAA?▾
This SKU is the 8-Port LM83X with 8 Serial Ports, 8 Dedicated Ethernet Ports, LCD Module, 3 Ethernet Ports, includes LMS.
How many serial devices can the LM83X platform support?▾
The LM83X platform supports up to 104 devices via serial (RS-232).
How can the LM83X be managed?▾
The LM83X and connected devices can be accessed directly through the CLI or through the Lantronix Control Center.
What operating environment is specified for the LM83X?▾
The operating environment is 0° C to 45° C (32° F to 113° F) at mean sea level, 20% to 80% relative humidity, non-condensing.
Support & warranty plans
Lantronix LEVEL coverage for this part. Add a plan at the time of purchase to lock in the term from the ship date.
- 1-year technical support
83X-8S-E04-NAA-L1Y1
$351.05 - 3-year technical support
83X-8S-E04-NAA-L1Y3
$1,023.89 - 5-year technical support
83X-8S-E04-NAA-L1Y5
$1,657.72 - 1-year extended warranty & technical support
83X-8S-E04-NAA-L2Y1
$741.10 - 3-year extended warranty & technical support
83X-8S-E04-NAA-L2Y3
$2,164.78 - 5-year extended warranty & technical support
83X-8S-E04-NAA-L2Y5
$3,510.46
