Lantronix LM83X Modular Console Servers

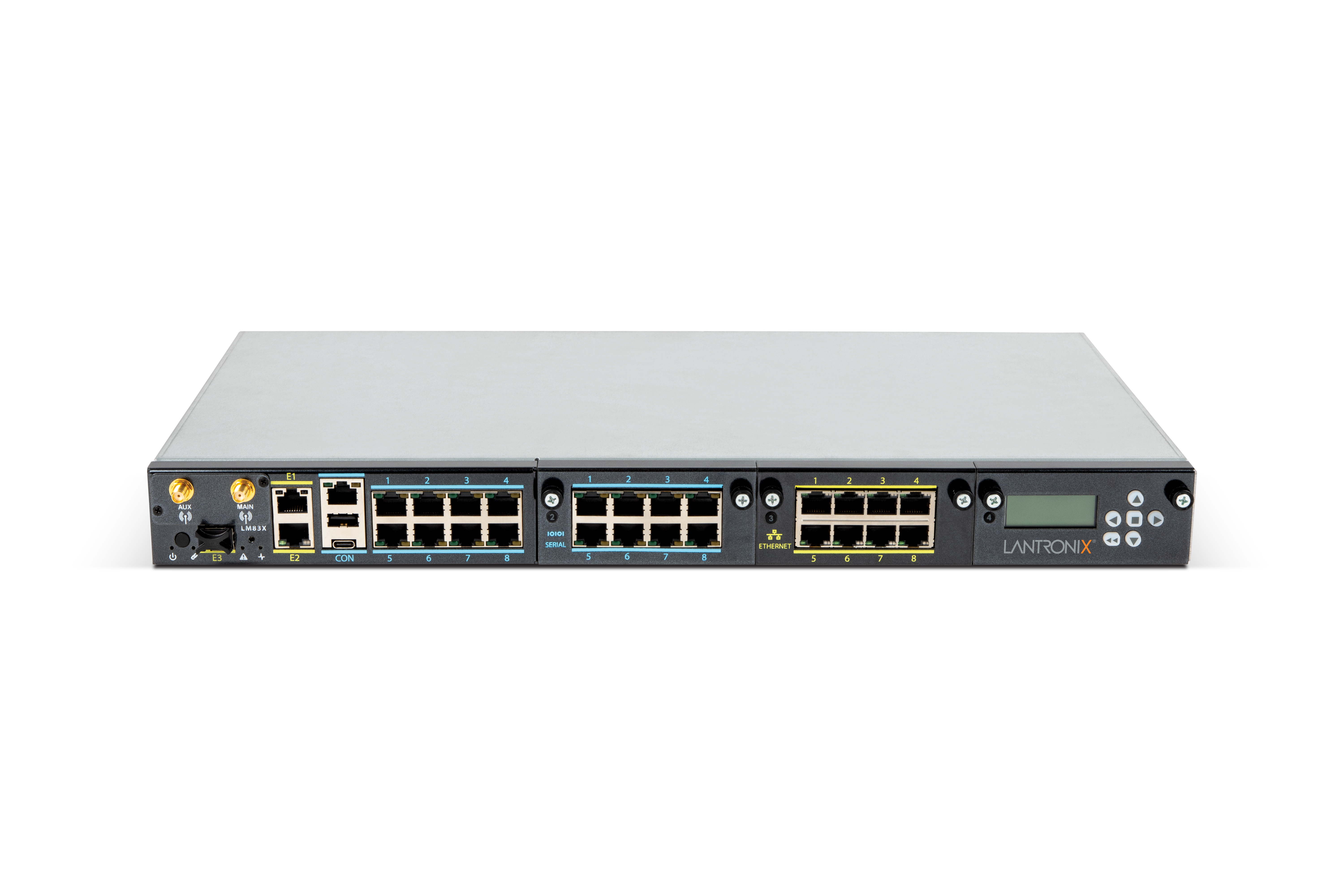

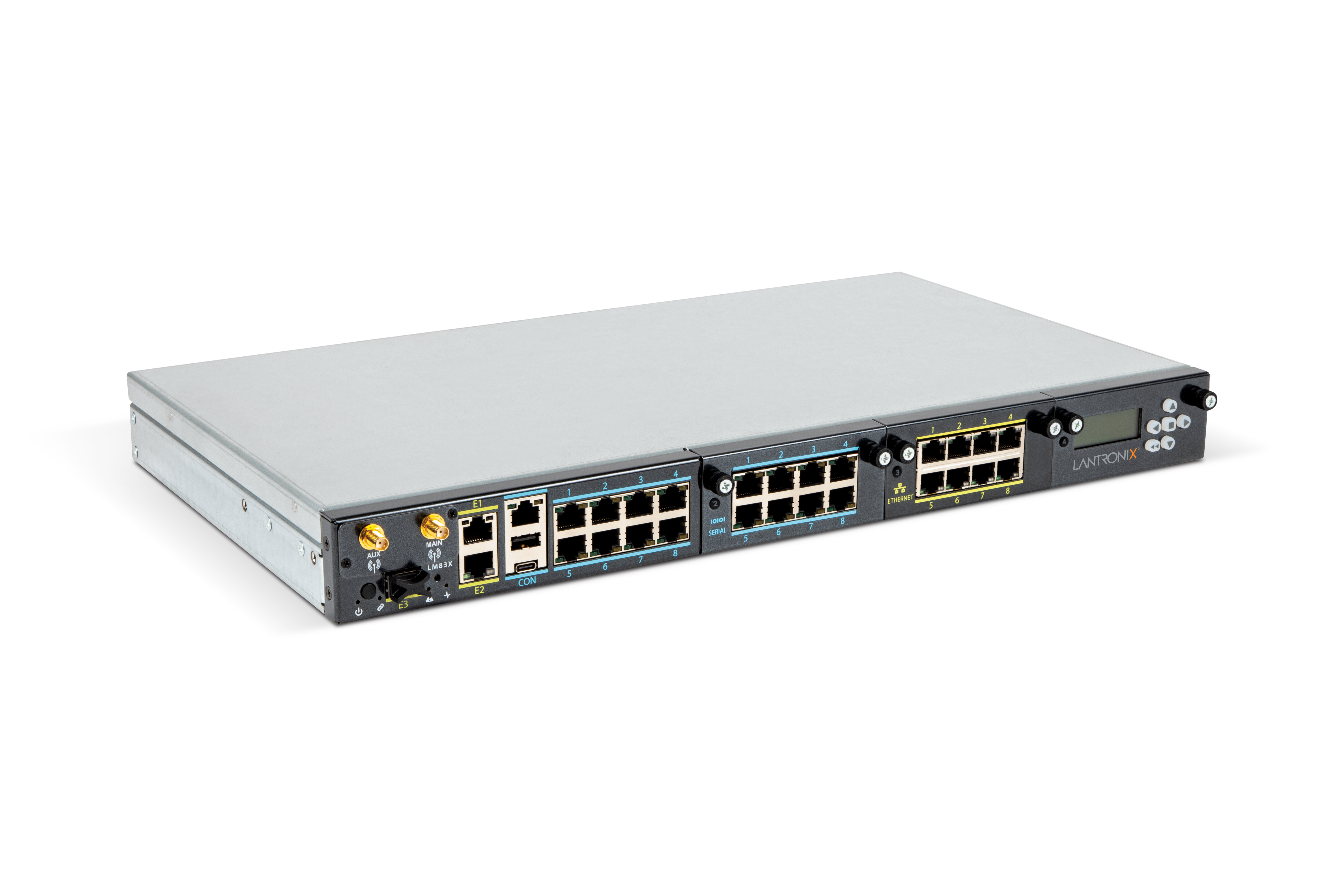

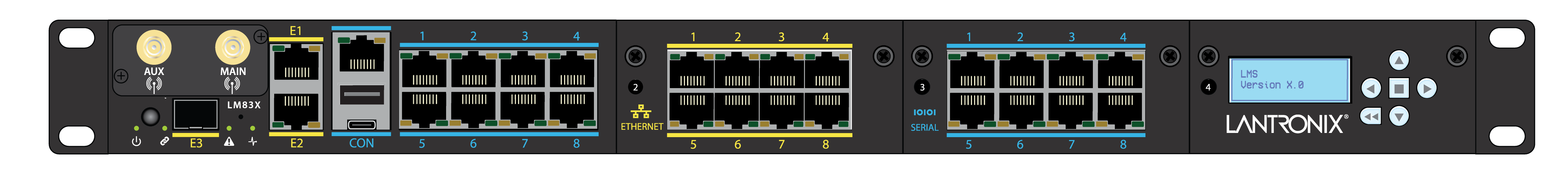

The LM83X is a 1RU modular out-of-band console server that manages 8 to 104 RS-232 devices, built for enterprise data centers and network rooms that need console access when the production network is down.
From $3,025.00
Overview
About the Lantronix LM83X
The LM83X (also written LM 83X or LM-83X) is the fifth generation of Lantronix's Local Manager platform. It operates independently from the production network so administrators can monitor, manage and control routers, switches, firewalls and servers over their serial consoles during an outage. Lantronix describes the LM-Series as the only state-aware console servers, an expert system that uses rules-based AI to recover and mitigate network infrastructure automatically.
Every chassis has two 10/100/1000BASE-T Ethernet interfaces with failover, one SFP port and an RS-232 console port. A 256GB NVMe drive supports TCG Opal 2.0 with 256-bit AES encryption, and USB-A and USB-C ports handle peripherals. One option slot takes RS232, V.92, cellular or fiber cards, while three expansion slots accept serial cards, an 8-port 10/100/1000 Ethernet card and an LCD keypad. Power is dual 100-240 VAC (60 W) or dual -20 to -72 VDC.
Engineers can work through the CLI or the Lantronix Control Center, a single pane of glass for LM-Series fleets that adds automated management actions without scripting, detailed compliance reporting and integration with other NOC tools. Platform features include ROMmon recovery, configuration rollback, virtual serial console ports, out-of-band baseboard management and zero-touch deployment. FIPS 140-2 Level 2 is available.
Key capabilities
- 8 to 104 serial ports
- Base models start at 8 RS-232 ports and scale in steps up to 104, so one 1RU chassis can cover a full row of network gear.
- Dual AC or DC power
- NAA models take dual 100-240 VAC inputs at 60 W; NDA models take dual -20 to -72 VDC inputs for telecom and DC-powered sites.
- Encrypted on-board storage
- A 256GB NVMe drive supporting TCG Opal 2.0 and 256-bit AES encryption keeps data stored on the console server encrypted at rest.
- Cellular and satellite out-of-band
- The option slot accepts LTE CAT4 modems for AT&T, Verizon, EU/UK/AUS/NZ or global use, and the LEO-500 kit adds Iridium satellite links.
- Dedicated Ethernet expansion
- Models with 8 or 16 dedicated 10/100/1000 Ethernet ports reach management NICs and BMCs alongside serial consoles from the same appliance.
- Automated recovery tools
- ROMmon recovery, configuration rollback and zero-touch deployment let the LM83X restore failed devices without a technician on site.
How to choose the right LM83X part number
In every LM83X part number, the digits before S give the serial port count and the suffix gives the power input. The count runs from 8 (83X-8S-000-NAA) to 104 (83X-104S-555-NAA). NAA means dual AC power and NDA means dual DC, as in 83X-16S-100-NAA versus 83X-16S-100-NDA. The description of each MPN states whether it adds 8 or 16 dedicated Ethernet ports, an LCD module, and 1.5 m or 3 m cables; 83X-24S-E2E-NAA, for example, pairs 24 serial and 16 dedicated Ethernet ports with 1.5 m cables. An X after 83X- (83X-X16S-114-NAA) marks native ports disabled. Expansion modules (83X-8SA, 83X-16SA, 83X-32SA, 83X-8EA, 83X-LCDA) and 88- option cards are ordered separately.
Configure & order
Find your LM83X part number
Every orderable LM83X configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
83X-8S-E00-NAA
$3,650.00
Ships on backorder

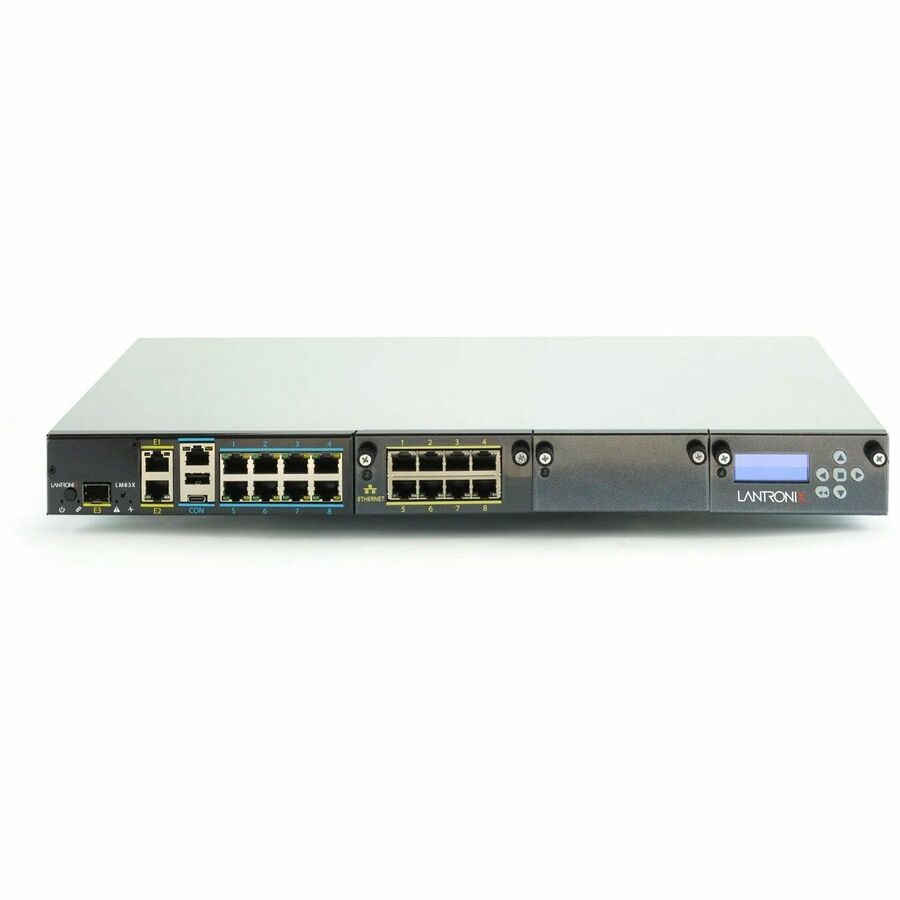

83X-8S-E04-NAA
$3,900.00
Ships on backorder
83X-8S-000-NAA
$3,025.00
Ships on backorder
83X-8S-004-NAA
$3,275.00
Ships on backorder
83X-X8S-104-NAA
$3,787.14
Ships on backorder
83X-X8S-1E4-NAA
$4,412.14
Ships on backorder
83X-8S-000-NDA
$3,478.38
Ships on backorder
83X-8S-E00-NDA
$4,258.38
Ships on backorder
83X-8S-E04-NDA
$4,408.38
Ships on backorder
83X-8S-004-NDA
$3,628.38
Ships on backorder
83X-16S-100-NAA
$3,535.00
Ships on backorder
83X-16S-104-NAA
$3,785.00
Ships on backorder
83X-16S-1E0-NAA
$4,160.00
Ships on backorder
83X-16S-E14-NAA
$4,410.00
Ships on backorder
83X-16S-E1E-NAA
$4,785.00
Ships on backorder
83X-X16S-114-NAA
$4,298.68
Ships on backorder
83X-16S-1EE-NDA
$5,883.34
Ships on backorder
83X-16S-100-NDA
$4,323.34
Ships on backorder
83X-16S-104-NDA
$4,473.34
Ships on backorder
83X-24S-110-NAA
$4,050.00
Ships on backorder

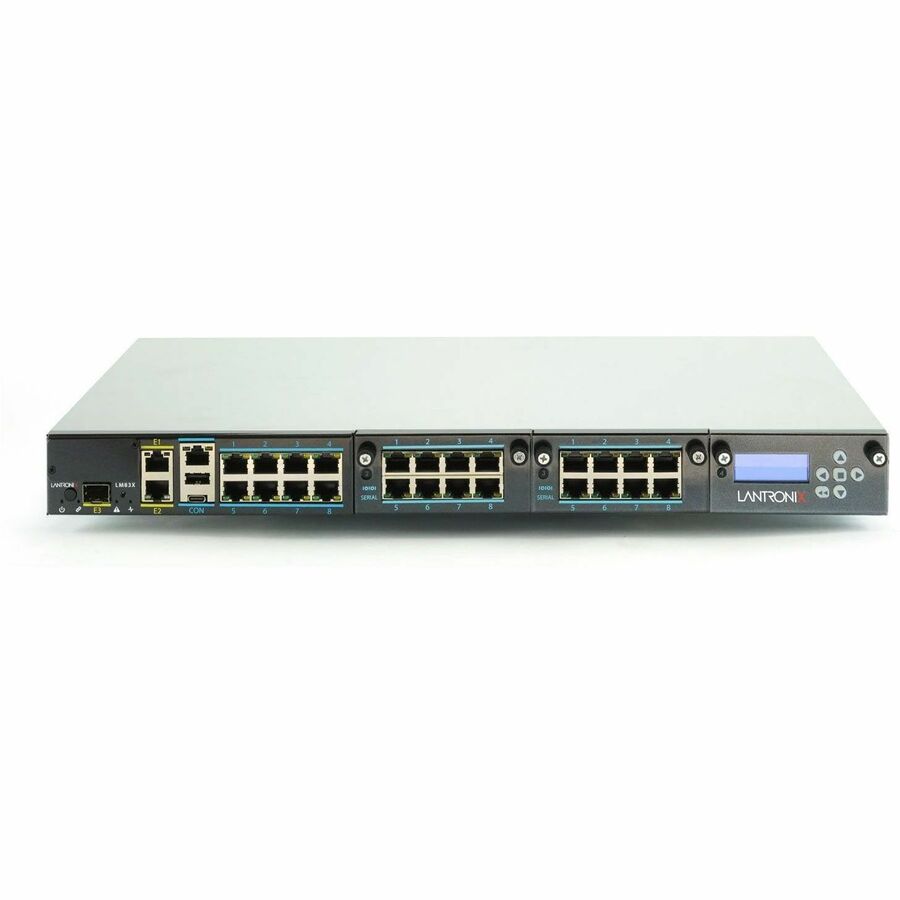

83X-24S-114-NAA
$4,300.00
Ships on backorder
83X-24S-200-NAA
$4,048.68
Ships on backorder
83X-24S-300-NAA
$4,048.68
Ships on backorder

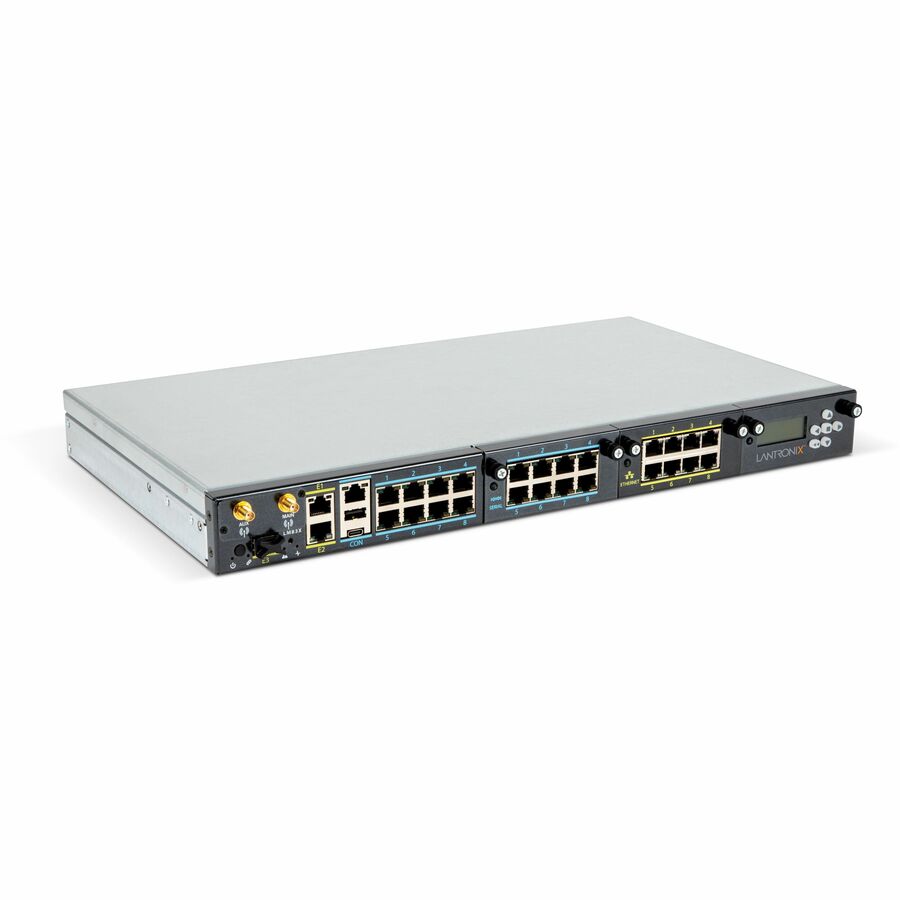

83X-24S-E11-NAA
$4,673.68
Ships on backorder
83X-24S-E24-NAA
$4,923.68
Ships on backorder

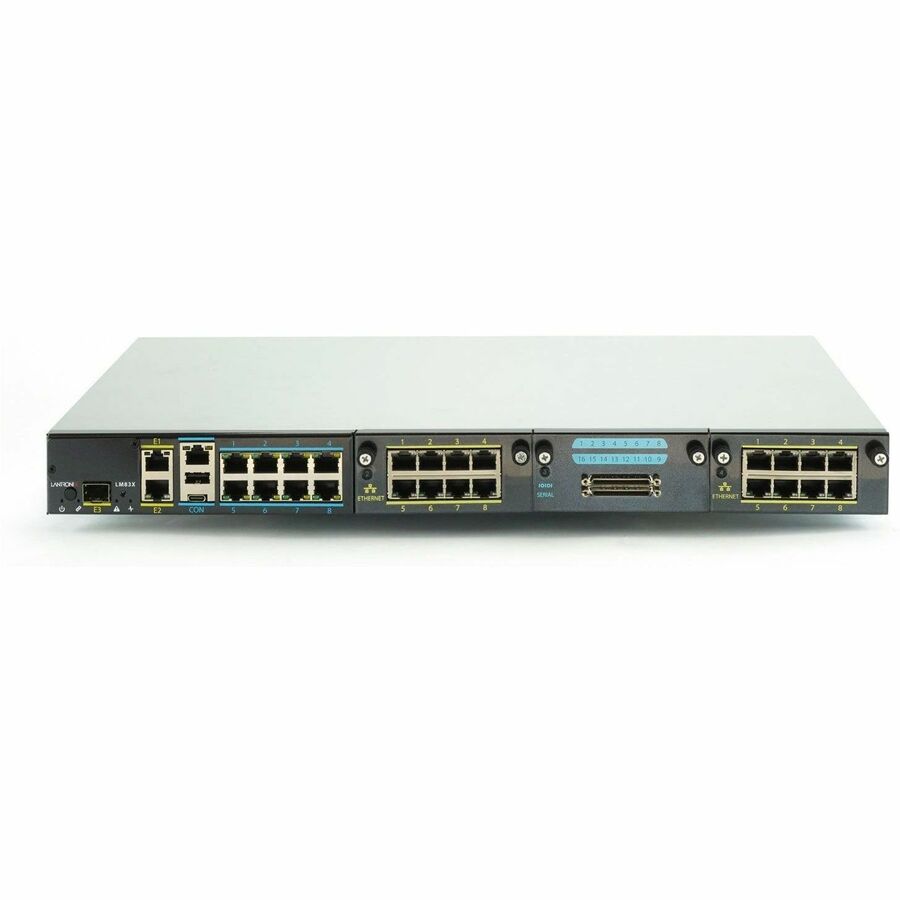

83X-24S-E2E-NAA
$5,300.00
Ships on backorder
83X-24S-E34-NAA
$4,923.68
Ships on backorder
83X-24S-E3E-NAA
$5,298.68
Ships on backorder
83X-24S-110-NDA
$4,944.07
Ships on backorder
83X-24S-114-NDA
$5,094.07
Ships on backorder
83X-32S-111-NAA
$4,560.00
Ships on backorder
83X-32S-124-NAA
$4,810.00
Ships on backorder
83X-32S-134-NAA
$4,810.23
Ships on backorder
83X-32S-E12-NAA
$5,185.23
Ships on backorder
83X-32S-E13-NAA
$5,185.23
Ships on backorder
83X-X32S-224-NAA
$5,321.77
Ships on backorder
83X-32S-111-NDA
$5,564.80
Ships on backorder
83X-40S-112-NAA
$5,071.77
Ships on backorder
83X-40S-113-NAA
$5,071.77
Ships on backorder
83X-40S-224-NAA
$5,320.00
Ships on backorder
83X-40S-334-NAA
$5,321.77
Ships on backorder
83X-40S-E22-NAA
$5,695.00
Ships on backorder
83X-40S-E33-NAA
$5,695.00
Ships on backorder
83X-40S-112-NDA
$6,158.80
Ships on backorder
83X-40S-224-NDA
$6,308.80
Ships on backorder
83X-48S-122-NAA
$5,585.00
Ships on backorder
83X-48S-133-NAA
$5,583.31
Ships on backorder
83X-48S-154-NAA
$5,833.31
Ships on backorder
83X-48S-164-NAA
$5,833.31
Ships on backorder
83X-48S-122-NDA
$6,752.80
Ships on backorder
83X-56S-222-NAA
$6,094.86
Ships on backorder
83X-56S-254-NAA
$6,344.86
Ships on backorder
83X-56S-333-NAA
$6,095.00
Ships on backorder
83X-56S-364-NAA
$6,344.86
Ships on backorder
83X-56S-222-NDA
$7,346.80
Ships on backorder
83X-64S-125-NAA
$6,606.40
Ships on backorder
83X-64S-136-NAA
$6,606.40
Ships on backorder
83X-72S-225-NAA
$7,117.95
Ships on backorder
83X-72S-336-NAA
$7,117.95
Ships on backorder
83X-72S-554-NAA
$7,370.00
Ships on backorder
83X-72S-664-NAA
$7,367.95
Ships on backorder
83X-72S-E55-NAA
$7,745.00
Ships on backorder
83X-72S-550-NDA
$8,350.00
Ships on backorder
83X-72S-554-NDA
$8,500.00
Ships on backorder
83X-80S-155-NAA
$7,629.49
Ships on backorder
83X-80S-166-NAA
$7,629.49
Ships on backorder
83X-88S-255-NAA
$8,141.03
Ships on backorder
83X-88S-366-NAA
$8,141.03
Ships on backorder
83X-96S-555-NAA
83X-96S-666-NAA
83X-104S-555-NAA
$9,165.00
Ships on backorder
83X-104S-666-NAA
$9,164.12
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the LM83X, organized by what it does — cables & adapters, modules & option cards, other add-ons— each with why you'd add it.
Cables & adapters
4 items
ACC-500-103
ACC-500-103
6 ft RJ-45/Serial network/data transfer cable. It connects from RJ-45 Network male to DB-9 Serial female for DTE devices including terminals, printers and console ports.
$14.25
Ships on backorder
1-RU, 16-Port Patch Panel
88-16PPA
1-RU, 16-Port Patch Panel with CAT 6 Coupler Connectors for LM80/LM83X deployments.
$58.00
Ships on backorder
1-RU, 32-Port Patch Panel
88-32PPA
1-RU, 32-port patch panel for LM80/LM83X deployments. It is configured with CAT 6 coupler connectors and listed as an LM83X accessory.
$130.00
Ships on backorder
Adapter, USB Console
USB-CAA
USB Console Adapter for LM83X, LM80, LM4, 500 and 5000 systems.
$170.00
Ships on backorder
Modules & option cards
16 itemsV.92 WW Modem Module .R1
88-V92A
V.92 WW Modem Module .R1 for LM80/LM83X Local Manager platforms. It is listed as an Analog Modem Module for Data Networking.
$100.00
Ships on backorder
Fiber-E Carrier, w/o SFP
88-FIBERSMA
Fiber-E Carrier option card for Lantronix LM80/LM83X Local Manager systems. It is supplied without an SFP and lists 1 x Network interface for optical fiber media.
$165.00
Ships on backorder
Fiber-E Module, w/Single Mode Fiber SFP
88-FIBERMSA
Fiber-E option card for LM80 and LM83X Local Managers. It includes a single-mode fiber SFP for optical-network and data-networking use.
$195.00
Ships on backorder
Fiber-E Module, w/Multi-Mode Fiber SFP
88-FIBERMMA
Fiber-E Module with a multi-mode fiber SFP for LM80/LM83X systems. It provides a 1 x Network optical fiber interface for data networking and optical network applications.
$205.00
Ships on backorder
LCD/Keypad Module
83X-LCDA
The Lantronix LM83X LCD/Keypad Module is an Expansion Module for the LM83X console server platform. Lantronix describes 83X-LCDA as the “LM83X LCD with Keypad Module.”.
$281.25
Ships on backorder
US LTE Cat 4 Internal modem for AT&T
88-CAT4ATTA
US LTE Cat 4 internal modem for AT&T for LM80/LM83X systems. This combo SKU includes an external antenna.
$308.00
Ships on backorder
US LTE Cat 4 Internal modem for Verizon (combo)
88-CAT4VA
US LTE CAT 4 internal modem option for Verizon deployments on LM80/LM83X platforms. It is supplied as a combo with an external antenna.
$308.00
Ships on backorder
Penta-band HSPA+ Cellular Modem
88-HSPA+A
Penta-band HSPA+ Cellular Modem option card for LM80/LM83X systems. It fits the LM-Series modular OOB modem architecture described for cellular option cards.
$308.00
9,999 in stock
LTE CAT4 internal modem for EU/UK/AUS/NZ
88-CAT4EUA
LTE CAT4 internal modem option for LM80/LM83X state-aware console servers in EU/UK/AUS/NZ. It includes an external high gain antenna.
$350.00
Ships on backorder
LTE CAT4 Global internal modem
88-CAT4GLOBAL
LTE CAT4 GLOBAL internal modem option card for LM80/LM83X deployments. It is supplied with an external high gain antenna for cellular out-of-band connectivity.
$350.00
Ships on backorder

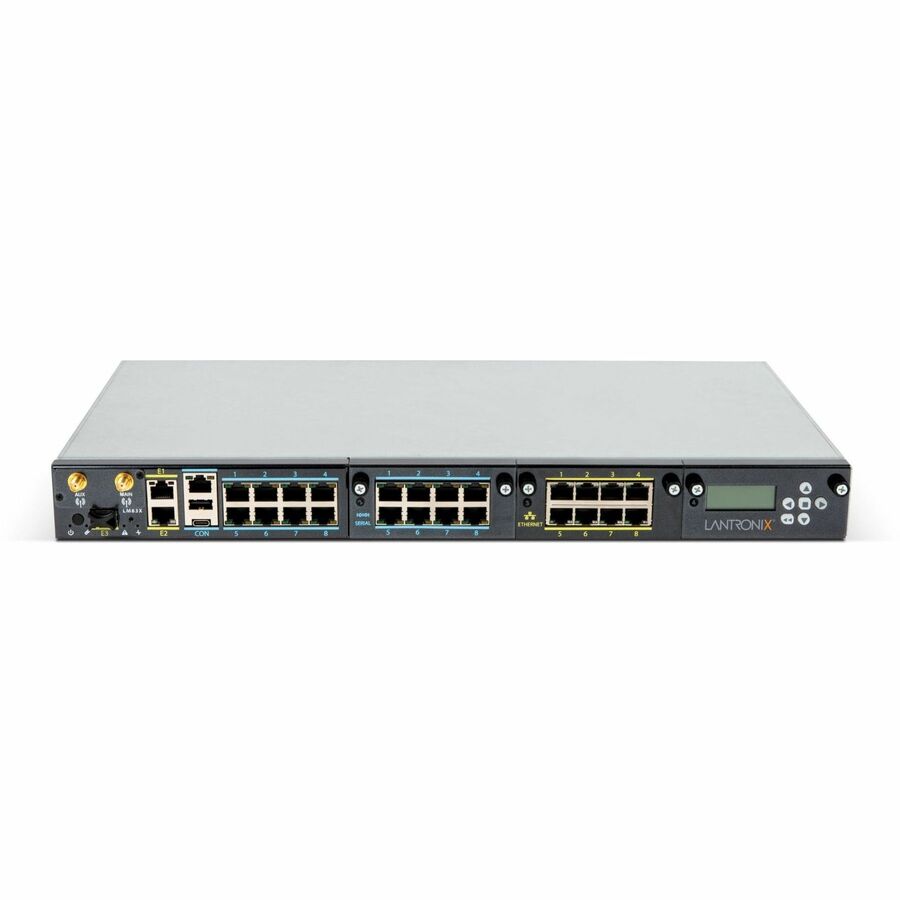

8-Port Ethernet Expansion Module
83X-8EA
8-Port Ethernet Expansion Module for the LM83X Local Manager. It supports LM83X deployments that need Ethernet expansion in the platform’s modular architecture.
$780.00
Ships on backorder
8-Port Expansion Module
83X-8SA
The Lantronix LM83X 8-Port Serial Expansion Module provides 8 x Serial interfaces for the Lantronix LM83X Local Manager. It is listed for data networking use.
$1,444.07
Ships on backorder
16-Port Expansion Module
83X-16SA
16-Port Serial Expansion Module for the LM83X Local Manager. It ships with 2 high-density cables.
$2,086.07
Ships on backorder
32-Port Expansion Module
83X-32SA
32-Port Serial Module in the LM83X Expansion Modules group. It is listed for LM83X Local Manager deployments and supplied with cables per the SKU description.
$4,422.15
Ships on backorder
LEO-500 Iridium Satellite Modem Kit
LEO-500
Iridium Satellite Modem Kit listed as a compatible accessory for the Lantronix LM80.
Other add-ons
2 itemsTemperature/Humidity Sensor
61-5010-01
Temperature/Humidity Sensor accessory for LM83X, LM80, and LM4 systems.
$145.00
Ships on backorder
USB Handheld LCD/Keypad Module
USB-LCDA
USB Handheld LCD/Keypad Module for LM83X, LM80, LM4 and 500 systems. It provides the listed handheld LCD display and control module accessory for compatible Lantronix deployments.
$250.00
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the LM83X. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the LM83X is used
- Out-of-band console access to data center switches and routers
- Automated ROMmon recovery and configuration rollback after failed changes
- LTE backup management links for remote network rooms
- Iridium satellite out-of-band at energy and DoD sites
- Compliance-logged console access in banking and healthcare networks
LM83X datasheets & documentation
LM83X FAQ
How many devices can a single LM83X console server manage?
Lantronix lists the LM83X as configurable to manage 8 to 104 devices directly over RS-232. Base models are offered at 8, 16, 24, 32, 40, 48, 56, 64, 72, 80, 88, 96 and 104 serial ports, and serial expansion modules add ports to an existing chassis.
What is the difference between LM83X NAA and NDA part numbers?
NAA models have dual AC power inputs rated 100-240 VAC, 50/60 Hz, 60 W. NDA models have dual DC inputs rated -20 to -72 VDC. Port counts and other options are otherwise matched, for example 83X-8S-000-NAA and 83X-8S-000-NDA.
Can I add a cellular modem to the LM83X?
Yes. The single option slot accepts LTE CAT4 internal modems: 88-CAT4ATTA for AT&T, 88-CAT4VA for Verizon, 88-CAT4EUA for EU/UK/AUS/NZ and 88-CAT4GLOBAL. A penta-band HSPA+ modem, a V.92 modem, an RS232 module and Fiber-E SFP modules are also listed for the slot.
What comes in the box with an LM83X?
The LM83X accessory kit contains two power cords (or DC connectors on DC models), two rack-mount ears, four mounting screws, a USB-A to USB-C cable and a connection instruction sheet.
What is the LM83X operating temperature range?
The LM83X operates from 0 to 45 C (32 to 113 F) at mean sea level with 20% to 80% non-condensing humidity. Non-operating storage is rated -30 to 60 C. The chassis is 1RU, 445 mm wide and weighs 3.72 kg.
