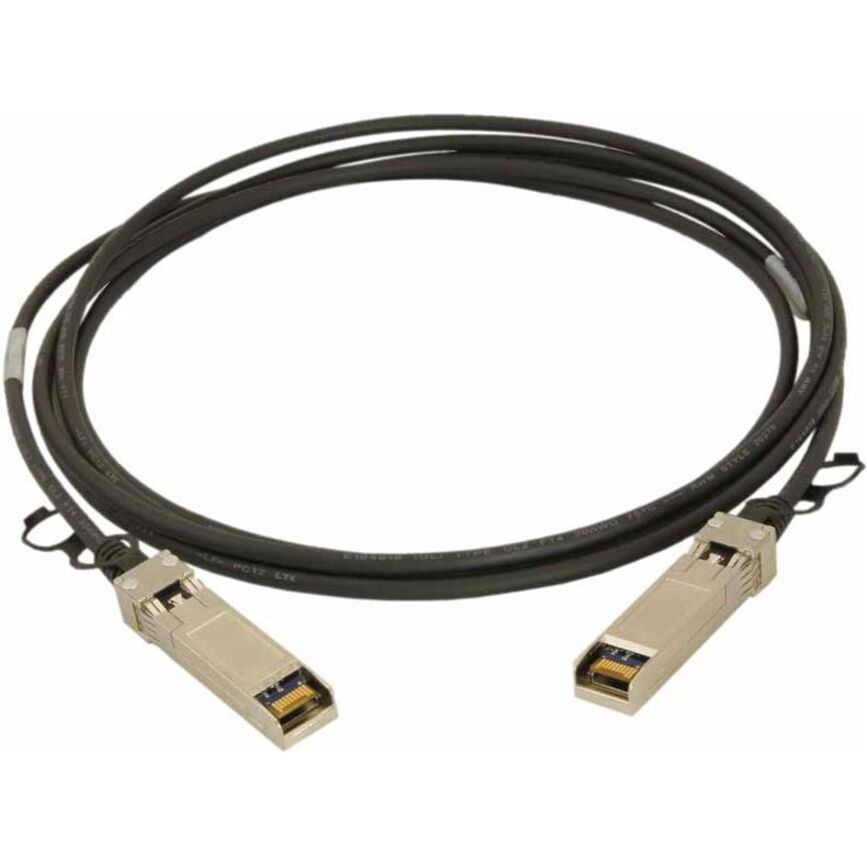

Lantronix DAC-10G-SFP-01M — 10Gig SFP+ Copper Cable
$54.72$80.64
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10Gig Direct Attached SFP+ copper cable, 30 AWG, 1 meter
- 1Gbps to 10+ Gbps data transfer support for high-speed interconnects
- Twin-axial shielded cable configuration with die cast housings
- 100+/- 5 ohms impedance to minimize EMI leakage through the fully-shielded design
- Standard SFP+ latch interoperable with all compliant interfaces
- 10GBase-CR IEEE standard support
Lantronix DAC-10G-SFP-01M is a Direct Attached Copper Cable Assembly for 10G networks. It is a 10Gig Direct Attached SFP+ copper cable, 30 AWG, 1 meter. The SFP+ copper cable assembly was developed as a cost-effective and low power alternative to optical cables and optical SFP+ modules for short reach links in high-speed interconnect applications. Applications include InfiniBand SDR, DDR, and QDR, Ethernet 1G and 10G, Fiber Channel 8G and 10G, FCoE 10G, networking, storage, hubs, switches, routers, servers, and NICs.
Ideal For
- Short reach high-speed interconnects in 10G networks
- Enterprise networking and storage area networks
- Service provider customer hand-off points
- Connections among hubs, switches, routers, servers, and NICs
Specifications
| IEEE | 10GBase-CR |
| Latch | Positive Latching w/ Lanyard Pull |
| Eeprom | SFF-8472 |
| Shield | Braid/Foil |
| Weight | 1 lb. [0.45 kg] |
| Warranty | Lifetime |
| Conductor | Solid |
| Impedance | 100+/- 5 ohms |
| Cable Type | Twinaxial |
| Electrical | SFF-8431, SFF-8083 |
| Mechanical | SFF-8432 |
| Bend Radius | 5x Cable OD |
| Jacket Type | PVC |
| Cable Length | 1 meter / 3.28 ft |
| Construction | Twin axial Cable ODCable |
| Current Rating | 0.5 Amp Min/Signal Contact |
| Green Features | RoHS, Lead Free |
| MSA Compliance | Cables are compliant with Multi-Sourcing Agreement compliant |
| Contact Material | PCB with Gold-Plated Pads |
| Plastic Material | LCP |
| Backshell Material | Nickel-Plated Zinc Diecast |
| Data Transfer Rate | 10 Gbit/s |
| American Wire Gauge | 30 AWG |
| Cisco Compatibility | Starting with Cisco NX-OS Software release 4.1(3)N2.1, these cables are compatible with the Nexus 2000 and 5000 series switches |
| Flammability Rating | UL 94 V-O |
| Insulation Resistance | 1000Mohms |
| Operating Temperature | -10°C to 70°C |
| Connector On First End | 1 x SFP+ Network |
| Connector On Second End | 1 x SFP+ Network |
| Min Dielectric Withstand Voltage | 300VDC |
Frequently Asked Questions
What device types does DAC-10G-SFP-01M support?▾
It is listed for network devices, storage devices, hubs, switches, routers, servers, and network cards.
What data rates does this SFP+ copper cable support?▾
Lantronix lists support for data transfer rates from 1Gbps up to 10+ Gbps, with 10 Gbit/s in the product data.
Is this an optical SFP+ module?▾
No. It is an SFP+ copper cable assembly developed as an alternative to optical cables and optical SFP+ modules for short reach links.
Which standards are listed for this cable?▾
Lantronix lists 10GBase-CR, SFF-8472, SFF-8431, SFF-8083, and SFF-8432.
