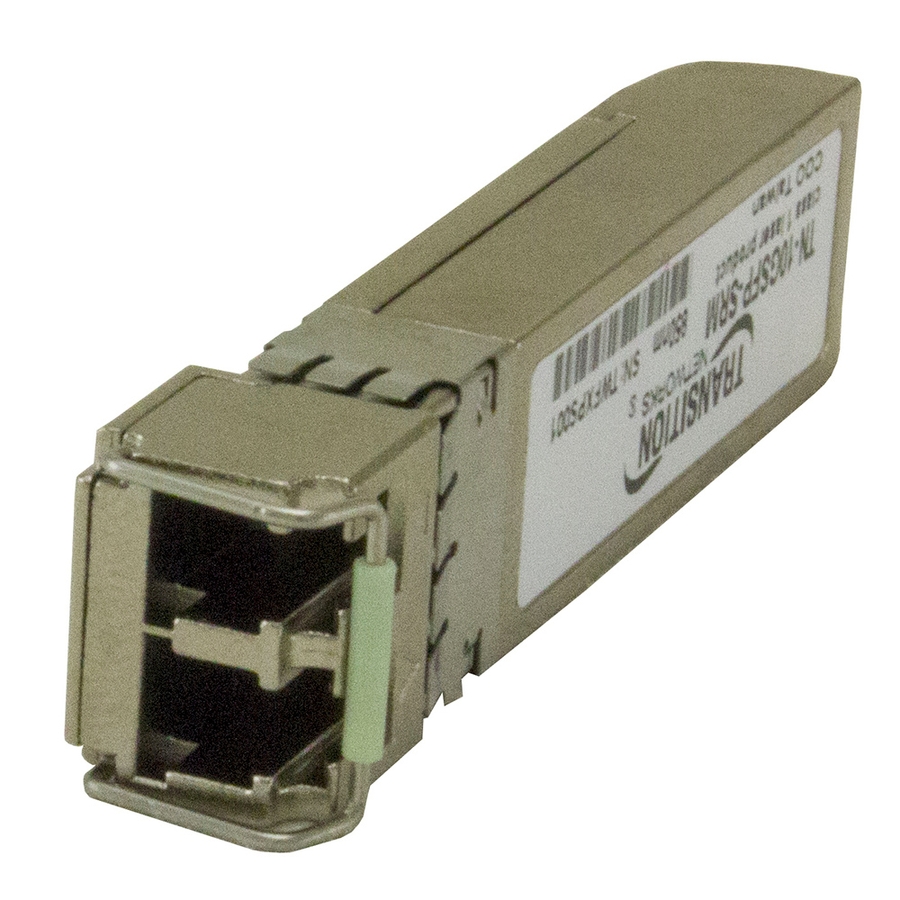

Lantronix TN-10GSFP-SRM — SFP+ Transceiver
$214.16$319.00
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Monday, Oct 19
New, with full manufacturer warranty
Key Features
- 10GBase-SR/1000Base-SX support for multi-rate 1G/10GBase SFP+ links
- 850nm multimode LC optical interface with 300/82/33m; 985/269/108 ft. listed link lengths
- SFF-8472 Digital Diagnostic Function (DMI) for module diagnostics
- 10.3 Gbps / 1.25 Gbps data rates
- SFF-8431 and SFF-8432 compliance
- Single +3.3V power supply
- RoHS compliance
Lantronix TN-10GSFP-SRM is an MSA compliant multi-rate 1G/10GBase SFP+ module for 10GBase-SR and 1000Base-SX optical networking. It uses an 850nm multimode LC interface and supports 10.3 Gbps / 1.25 Gbps data rates. Lantronix lists SFF-8472 Digital Diagnostic Function (DMI), SFF-8431 and SFF-8432 compliance, a single +3.3V power supply and RoHS compliance for this SFP+ optical transceiver. The part-table description specifies 300/82/33m; 985/269/108 ft. link lengths and a 4.0 dB link budget. The listed operating range is 0°C to 70°C, with storage from -40°C to 85°C.
Ideal For
- 10GBase-SR optical network links over 850nm multimode fiber
- 1000Base-SX Gigabit Ethernet links using an SFP+ module
- SFP+ ports that require an MSA compliant optical transceiver
- Installations that need SFF-8472 Digital Diagnostic Function (DMI)
Specifications
| Standard | IEEE 802.3ae; IEEE 802.3z |
| Warranty | Lifetime |
| Compliance | SFF-8431 and SFF-8432 Compliant |
| Data Rates | 10.3 Gbps / 1.25 Gbps |
| Dimensions | 0.52” [13 mm] x 2.2” [56 mm] x 0.33” [8 mm] |
| Fiber Mode | Multimode |
| Wavelength | 850nm |
| Form Factor | SFP+ |
| Link Budget | 4.0 dB |
| Power Supply | +3.3V |
| Certifications | IEC-60825, FAD 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| Network Technology | 10GBase-SR; 1000Base-SX |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 70°C |
| Supported Link Lengths | 300/82/33m; 985/269/108 ft |
| Digital Diagnostic Function | SFF-8472 Digital Diagnostic Function (DMI) |
Frequently Asked Questions
Which network technologies does the TN-10GSFP-SRM support?▾
It supports 10GBase-SR and 1000Base-SX.
What connector and fiber type does this SFP+ module use?▾
It uses an LC connector with 850nm multimode fiber.
Does the TN-10GSFP-SRM support DMI?▾
Yes. Lantronix lists SFF-8472 Digital Diagnostic Function (DMI) for this module.
What is the operating temperature range?▾
The listed operating range is 0°C to 70°C.
