Is G527GP2AS the North America model?

Yes. The Lantronix part row names G527GP2AS as “G527 - North America (AT&T, T-Mobile, Verizon)” and lists 4G LTE Cat-7 bands B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66 and B71, with 3G FB.

Does this G527 support PoE?

Yes. The security variant supports PSE-PoE+ – 30 W per LAN port, with a powerful enough power supply required.

How can this gateway be managed?

Device management services include the Lantronix Percepxion platform or third-party platforms. The software suite also lists a web-based user interface, SMS / OTA remote configuration and TR-069-capable administration.

What is the temperature range?

The operating range is -30 °C ~ +70 °C; up to 95% RH. Storage is -40 °C ~ +85 °C; up to 95% RH.

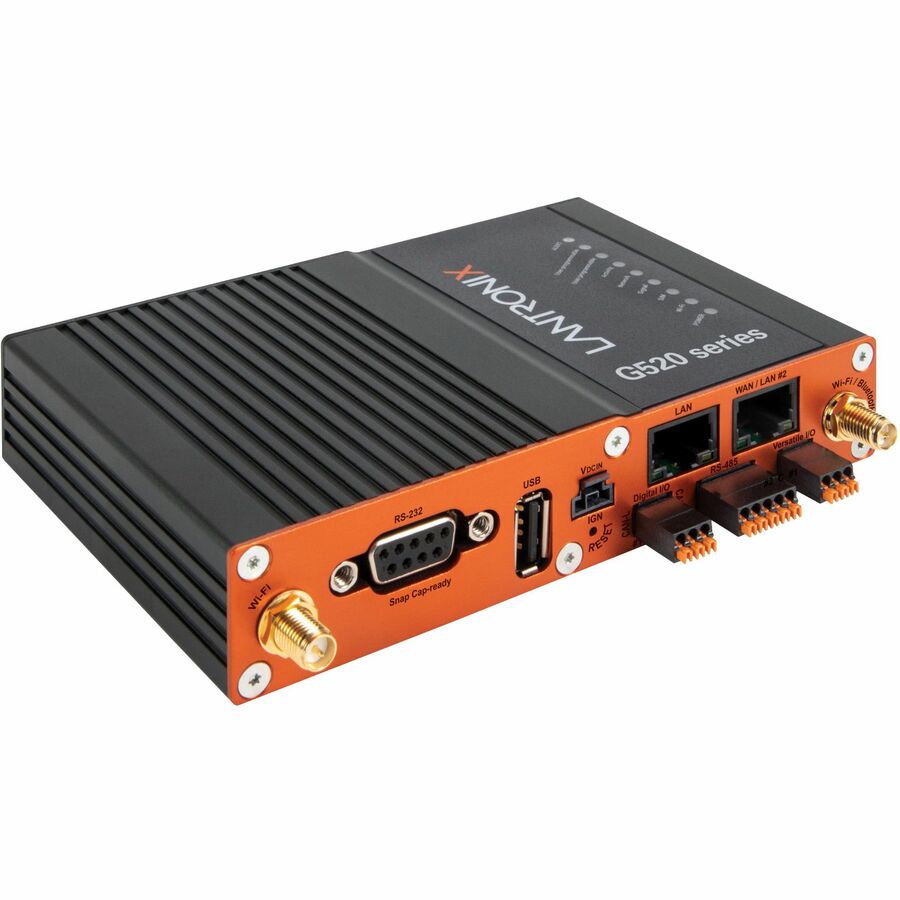

Lantronix G520 Series G527 security cellular gateway

Lantronix North America (AT&T, T-Mobile, Verizon) G527 G520 Security Gateway

Name: Lantronix G527GP2AS — North America (AT&T, T-Mobile, Verizon) G527
Brand: Lantronix
SKU: G527GP2AS
Price: 392.28 USD
Availability: BackOrder

Lantronix|

MPN: G527GP2AS

UPC: 783384244474

Available on Backorder

$392.28$437.99

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales

Free shipping — every order, no minimumShips free as soon as stock arrives. We'll confirm the lead time before your card is charged.

Authorized Dealer — Full manufacturer warranty

Business Pricing Available

Exclusive pricing, free shipping on your first order, and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

LTE Cat 13 uplink and Cat 7 downlink G527 Security Gateway configuration
4G LTE Cat-7 North America bands: B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71; 3G FB
2 Ethernet 10/100 base Ethernet ports with PSE-PoE+ – 30 W per LAN port on the security variant
2T2R Wi-Fi 5 and Bluetooth/BLE 5.1 for local wireless connectivity
RS-232, RS-485, USB 2.0, I/O, ignition sensing and CANbus interfaces
Secure Element from MICROCHIP ATECC608 with Lantronix InfiniShield™ on the security variant
Percepxion IoT Edge solution platform pre-configured for device management, data analytics and remote monitoring
Pre-configured with Percepxion IoT Edge solution platform

Lantronix G527GP2AS belongs to the G520 Series Security Gateways. This North America configuration is listed for AT&T, T-Mobile and Verizon bands and includes Secure Element, Dual SIM, MicroSD, Last Gasp, GNSS, Percepxion ready and SDK support. The G520 Series is built for Industry 4.0, Surveillance and Remote Applications. The G527 offers LTE Cat 13 uplink and Cat 7 downlink, and Lantronix positions it for high-throughput CCTV applications. Security models add a built-in cryptographic secure element and PSE-PoE. The software suite includes HTTPS UI, zone-based firewall, VLAN, DMZ, SIM PIN, VPN protocols and device management through the Lantronix Percepxion platform or third-party platforms. Industrial integration includes Ethernet, serial RS-232/485, USB, I/O, CANbus and fieldbus protocols including EtherCAT, DLMS client, DNP3 Outstation, Modbus master, IEC 104 slave and IEC 101 master.

Ideal For

High-throughput CCTV applications using the G527 LTE Cat 13 uplink and Cat 7 downlink profile
Industry 4.0 equipment connectivity with Ethernet, serial, I/O, fieldbus protocols and CANbus
Remote applications managed through the Lantronix Percepxion platform or third-party platforms
Transport and security applications listed for the G520 Series

Why This Product

1Compared with the Industrial G526, this Security Gateway includes Secure Element and Ethernet PSE-PoE+; the G526 table entries are marked “–” for both
2Compared with the G526 LTE Cat 4 industrial models, the G527 is positioned with LTE Cat 13 uplink and Cat 7 downlink
3Compared with the G528, the G527 is the LTE Cat 13 uplink/Cat 7 downlink option; the G528 row adds 5G Sub-6 GHz with LTE cat. 13 uplink/cat. 20 downlink and 3G fall-back modes
