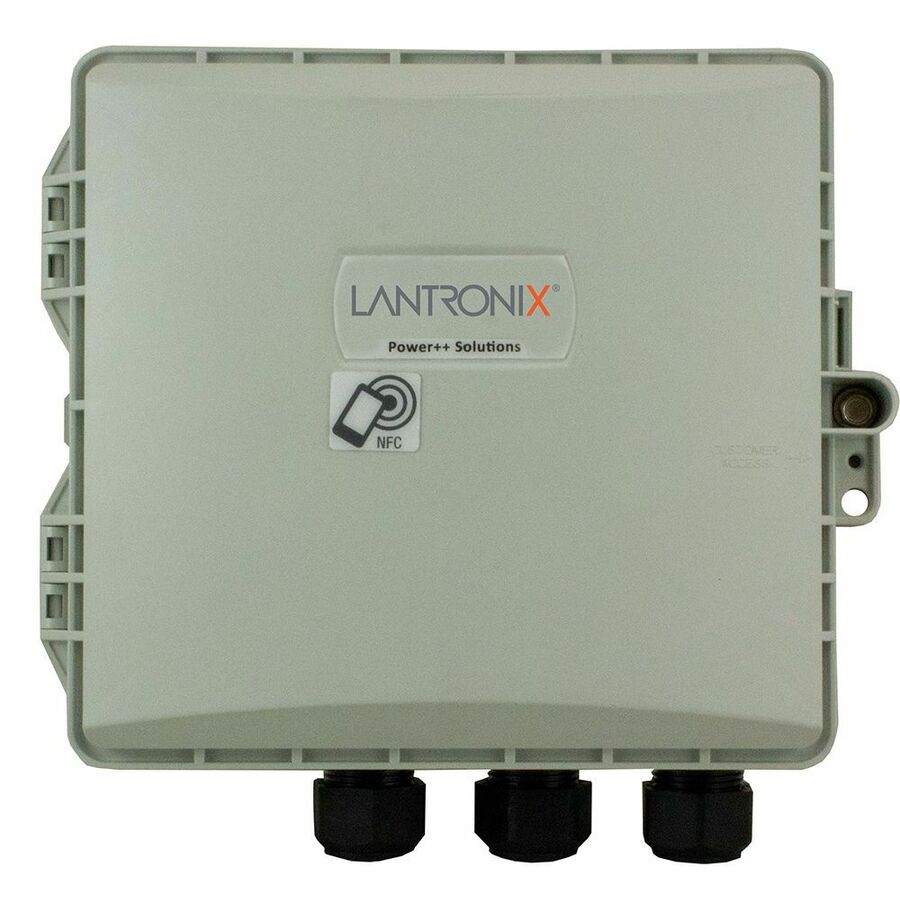

Lantronix SESPM Series SESPM1040-541-LT-PD self-enclosed Gigabit PoE++ switch

Lantronix SESPM1040-541-LT-PD — SESPM Series PoE-Powered Gigabit PoE++ Switch

Lantronix|

MPN: SESPM1040-541-LT-PD

|

UPC: 648177044023

Available on Backorder
$994.77$1,478.70

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty

Key Features

  • 4 10/100/1000Base-T IEEE 802.3bt PoE++ ports for Gigabit powered-device connections
  • 1 combo 10/100/1000Base-T RJ-45 or 100/1000Base-X SFP port for copper or fiber uplink
  • PoE-powered Type 4 Class 8 input requiring an IEEE 802.3bt Type 4 Class 8 compliant PSE
  • 80 Watts total PD Version PoE budget with ≤90 Watts on individual ports where specific port configuration applies
  • 12VDC auxiliary power on the PD version for a PC, lighting or other accessories
  • Outdoor NEMA 4X/IP66 rated enclosure for wall or side-of-building mounting
  • NFC configuration and Bluetooth Low Energy access for settings and alarm information
Lantronix SESPM1040-541-LT-PD is the PoE-powered PD version of the SESPM Series self-enclosed managed hardened Gigabit Ethernet PoE++ switch. It provides (4) 10/100/1000Base-T IEEE 802.3bt compliant PoE++ ports and (1) combination 10/100/1000Base-T RJ-45 or 100/1000Base-X SFP port. The switch is a Layer 2 managed switch for security and surveillance, PoE lighting, digital signage and other applications. It is self-enclosed in an outdoor NEMA 4X/IP66 rated enclosure and can be mounted on a wall or side of a building; optional brackets are available for pole mounting. This PD version requires PoE power from an IEEE 802.3bt Type 4 Class 8 compliant PSE, or it can receive power over copper cable running parallel to a fiber optic cable for data. It also includes a 12V Aux port that can provide auxiliary power to a PC, lighting or other accessories. NFC allows simple, repeatable configuration using an app on a mobile device before connecting or powering the switch. Bluetooth Low Energy allows remote access to alarm information and equipment settings without requiring physical access.

Ideal For

  • Security and surveillance networks using Gigabit PoE++ ports
  • PoE lighting deployments that need a self-enclosed managed switch
  • Digital signage applications mounted on a wall or side of a building
  • Installations that need 12VDC auxiliary power for a PC, lighting or other accessories

Specifications

BLEBLE 4.2
NfcNFC Forum Type 2 Tag, ISO/IEC 14443A
VLANPort based VLAN, IEEE 802.1Q tag-based, up to 4K VLAN entries, Private VLAN
Weight4.8 lbs. [2.18 kg]
EmissionEN 55022, Class A
Humidity5% to 95% (non-condensing)
ImmunityEN55024
StandardsIEEE 802.3; IEEE 802.3ab; IEEE 802.1Q; IEEE 802.3af; IEEE 802.3at; IEEE 802.3bt
Dimensions10.05” [255.3 mm] x 4.34” [110.1 mm] x 8.48” [215.4 mm]
ManagementWeb GUI, CLI, SNMP
MonitoringSNMP, Syslog
PoE++ BudgetPD Version: 80 Watts total
Mac Address8K MAC address table
Power InputPoE Powered PD Version: 90 Watts PoE
Max Frame Size10K bytes
Auxiliary Power12VDC auxiliary power (on PD version only)
Ingress ProtectionIP66, NEMA 4X
Serial Console PortRS-232 RJ-45
Storage Temperature-40°C to +85°C
Auxiliary Power Port2-position wire terminal block (≤12AWG) with screw retention
RJ-45 Ethernet Ports(4) 10/100/1000 Mbps RJ-45 ports
SFP+ RJ-45 Combo Port(1) 100/1000 Mbps SFP/RJ-45 combo ports
Operating Temperature-30°C to +70°C (Inside Enclosure)
Power Consumption No PoE++ LoadPoE Powered PD Version: ≤ 5 W
External Operating Temperature-40°C to +50°C
Max PoE++ Budget On Individual PortsMax PoE Budget ≤90 Watts on individual ports (specific port configuration may apply)

Documentation

Additional pdf1

Additional pdf2

Additional pdf3

Additional pdf4

Additional pdf5

Product Brief

SESPM Series Product Brief (A4)

PoE Switches & Media Converters Matrix

Self-Enclosed Managed Hardened Gigabit Ethernet PoE++ Switch Frequently Asked Questions

Self-Enclosed Managed Hardened Gigabit Ethernet PoE++ Switch Overview (PDF 345.28 KB)

Choosing the best switch for your IP camera network

SESPM Series Operation Guide Rev F

Frequently Asked Questions

How is SESPM1040-541-LT-PD powered?▾

It is the PoE-powered PD version. The input specification lists PoE Powered PD Version: 90 Watts PoE, and the page states that the PD version requires PoE power from an IEEE 802.3bt Type 4 Class 8 compliant PSE.

What Ethernet ports are included?▾

It includes (4) 10/100/1000 Mbps RJ-45 ports and (1) 100/1000 Mbps SFP/RJ-45 combo port.

Can this switch be mounted outdoors?▾

The SESPM Series switch is self-enclosed in an outdoor NEMA 4X/IP66 rated enclosure. It can be mounted on a wall or side of a building, and optional brackets are available for pole mounting.

How is the switch managed?▾

Management is available through Web GUI, CLI and SNMP. Alarm status is accessible through CLI access, BLE interface or Integrated Management Software.
