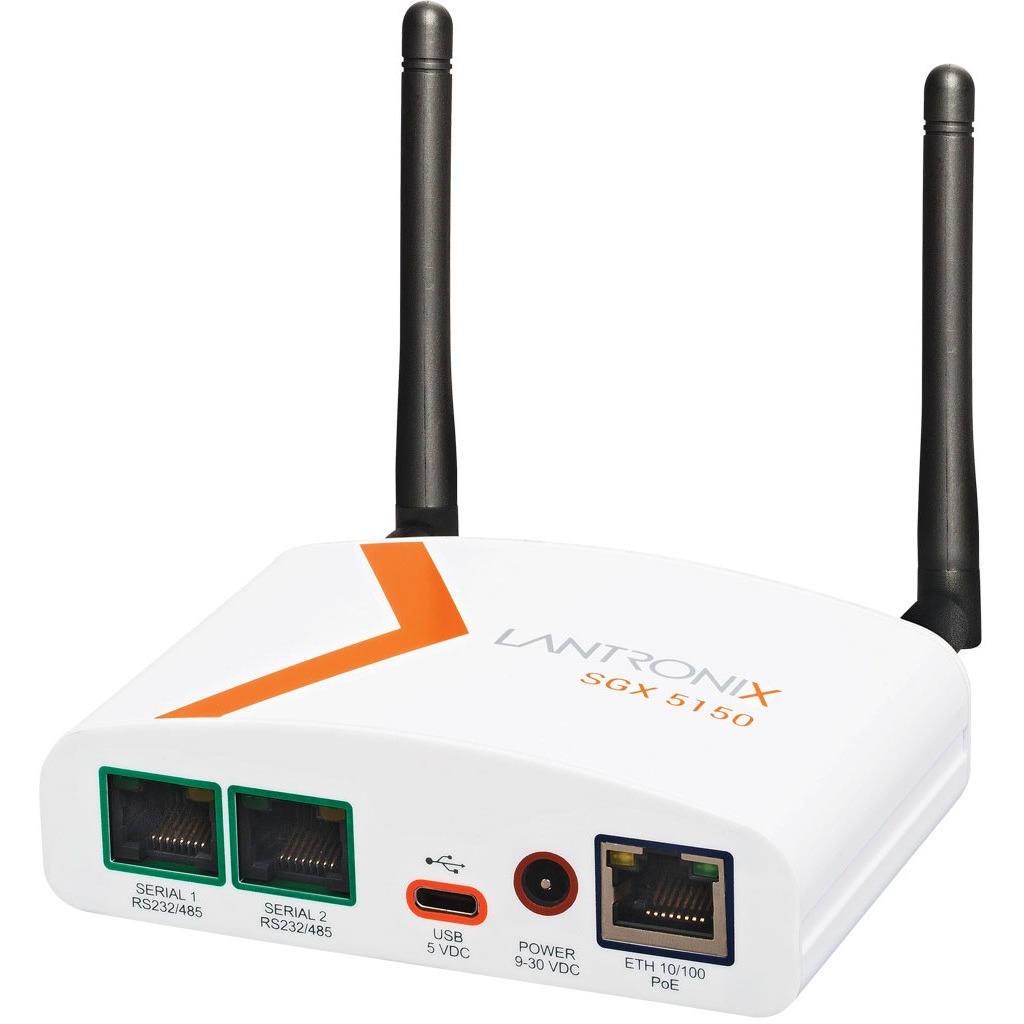

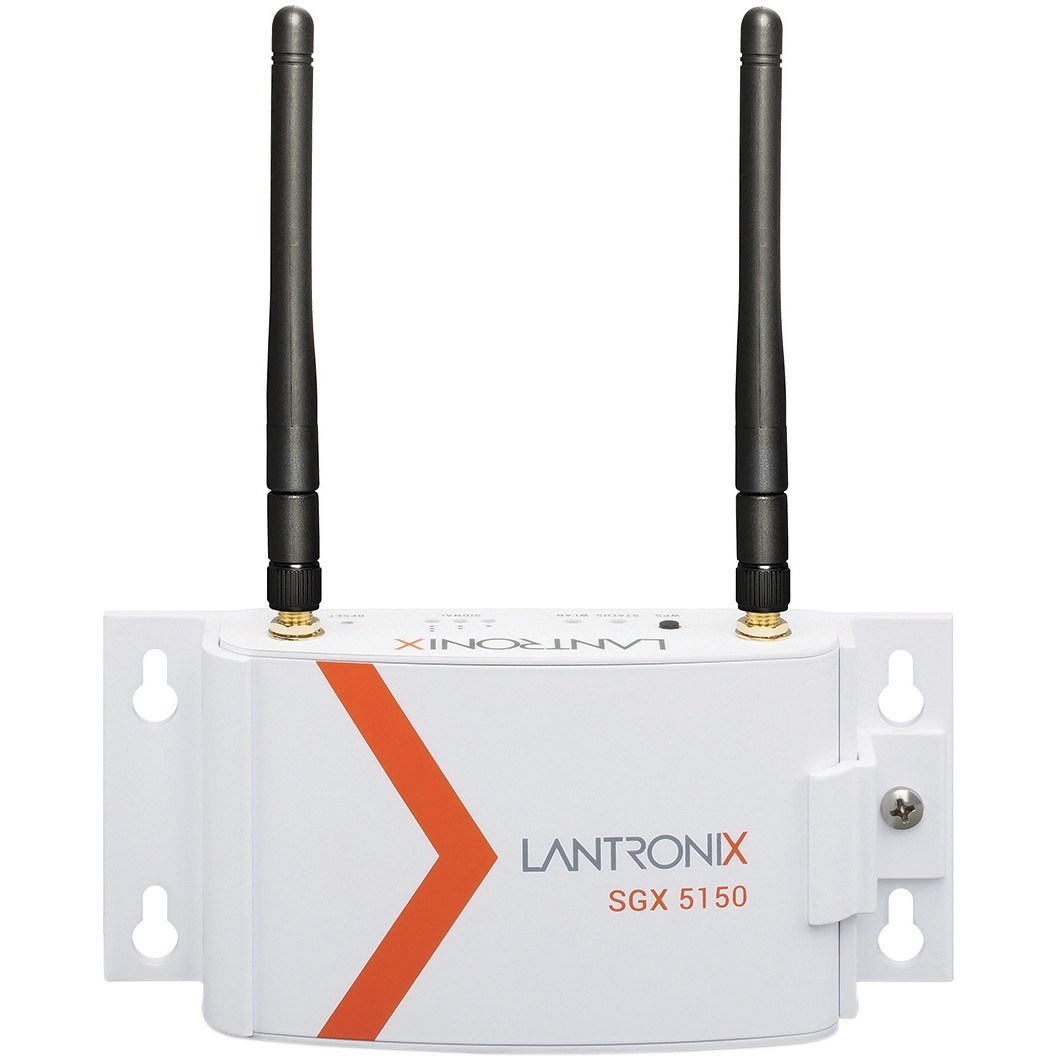

Lantronix SGX5150222ES — SGX 5150 IoT Device Gateway
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Key Features
- 802.11a/b/g/n/AC wireless connectivity for enterprise network access
- RS-232 (RJ-45) serial interface for connecting serial equipment
- USB Type C host/device connector with configurable USB 2.0 HS/FS port
- 10/100Mbps RJ-45 Ethernet port with Auto-Negotiation/Auto MDIX
- 9-30 VDC barrel input with optional Power over Ethernet input
- TruPort Security with FIPS 140-2 Level 1 Certification*, WPA/WPA2 Pre-Shared Key and IEEE 802.1X
- Extended operating temperature of -40° to 70° C (-40° to 158° F)
- Easily configure and connect to the enterprise network, out-of-the-box
Ideal For
- Connecting business-critical IoT assets and data to the enterprise network
- Adding 802.11AC wireless connectivity to equipment with serial, USB or Ethernet interfaces
- Managing deployed devices through Web Manager, CLI, SNMP v2/V3 or XML configuration records
- Deploying SGX 5150 gateways in environments specified for -40° to 70° C operation
Specifications
| Weight | 0.35 kg (0.77 lb) |
| USB Port | Type C Host / Device Connector |
| Warranty | 5-Year Limited Warranty |
| Data Rates | Up to 921 Kbps |
| Dimensions | 10.8 cm (4.3 in) x 7.2 cm (2.8 in) x 3.3 cm (1.3 in) |
| Power Input | DC barrel, 9-30 VDC (standard) |
| Flash Memory | 256 MB |
| Ethernet Port | RJ-45 Ethernet port, 10/100Mbps, 1.5 KV Surge Isolation |
| Wireless Band | Dual band 2.4 GHz and 5 GHz |
| Serial Interface | RS-232 (RJ-45) |
| Relative Humidity | 5 to 95%, Non-condensing |
| USB Specifications | Configurable USB 2.0 HS/FS port with USB type C connector |
| Wireless Standards | IEEE 802.11a/b/g/n/AC |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Optional Power Input | Power over Ethernet (optional) |
| Operating Temperature | -40° to 70° C (-40° to 158° F) |
| Power Consumption Max | 5.5W max with USB Load |
| Ethernet Specifications | IEEE 802.3 MAC and PHY, 10BaseT and 100BaseT |
| Power Consumption Typical | 1.9W typical without USB Load |
Documentation
Manufacturer Brochure
User Manual
SGX 5150 – Product Brief
SGX 5150 – Product Brief (A4)
CERTIFICATION, UL, SGX 35xx 51xx UL 1,000 KB View
Environmental Certs RoHS and REACH_SGX5150 & SGX 5150-MD
Cert, RoHS3 FM-409rA, SGX 5150
Cert, REACH FM-409rA, SGX 5150
CERTIFICATION, CB, SGX 51xx 35xx CB
CERTIFICATION, BABT RED000452 i03 (EU NB Type Examination Certificate), SGX 5150 CE
Frequently Asked Questions
What Wi-Fi standards does SGX5150222ES support?▾
SGX5150222ES is identified with wireless 802.11a/b/g/n/ac. The specifications list 5G Wi-Fi (IEEE 802.11ac), IEEE 802.11n, compatibility with IEEE 802.11a/b/g and support for IEEE 802.11d/h/j/i.
What wired interfaces are listed for this SGX 5150 configuration?▾
The SKU description lists RS232(RJ45), USB and 10/100 Ethernet. The specifications list a USB Type C Host / Device Connector and an RJ-45 Ethernet port, 10/100Mbps.
How is the SGX 5150 managed?▾
Management interfaces include Web Manager (HTML5 Browser HTTP/HTTPS), CLI over serial ports, telnet or SSH, SNMP v2 and V3, and XML configuration records via CLI or FTP.
What operating temperature range is specified?▾
The extended operating temperature is -40° to 70° C (-40° to 158° F).
Support & warranty plans
Lantronix LEVEL coverage for this part. Add a plan at the time of purchase to lock in the term from the ship date.
- 1-year technical support
SGX5150222ES-L1Y1
$33.72 - 3-year technical support
SGX5150222ES-L1Y3
$97.53 - 5-year technical support
SGX5150222ES-L1Y5
$156.52 - 1-year extended warranty & technical support
SGX5150222ES-L2Y1
$62.61 - 3-year extended warranty & technical support
SGX5150222ES-L2Y3
$180.61 - 5-year extended warranty & technical support
SGX5150222ES-L2Y5
$288.96
