Lantronix SGX 5150 Wi-Fi IoT Device Gateways
The SGX 5150 is a dual-band 802.11ac IoT device gateway that bridges serial, USB and Ethernet equipment onto an enterprise wireless network, with a Linux SDK and Python runtime for running custom applications at the edge.
From $436.80
Overview
About the Lantronix SGX 5150

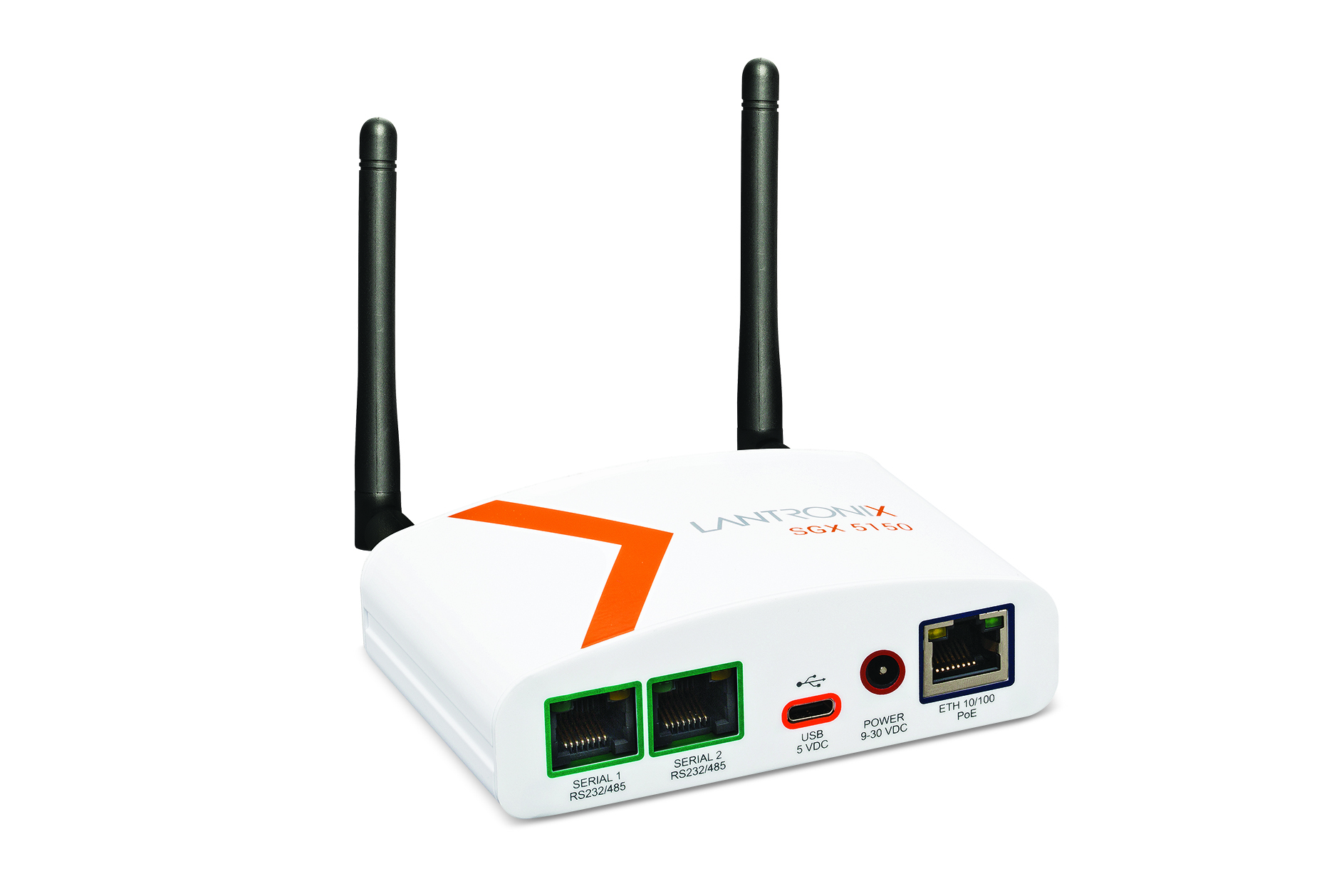

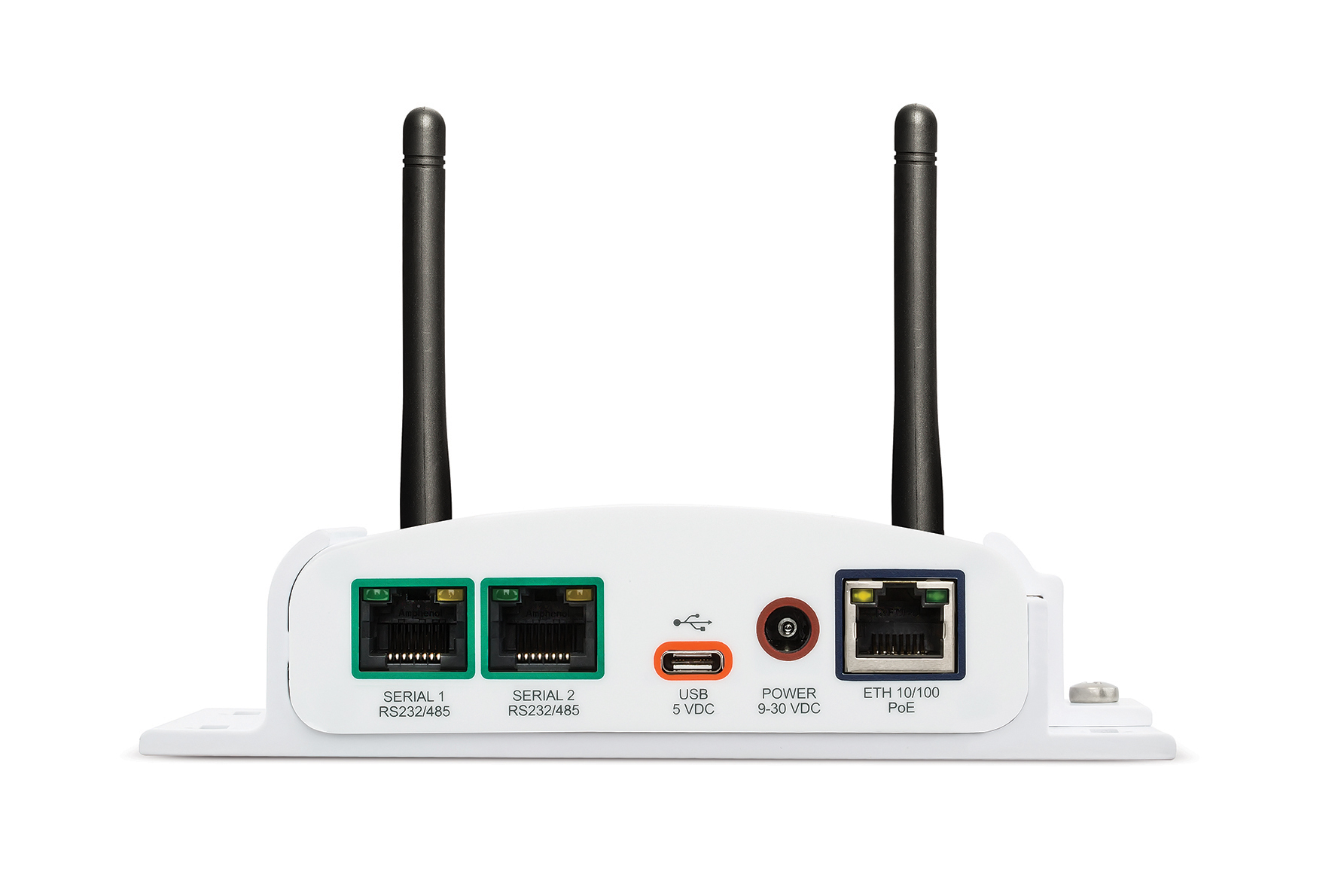

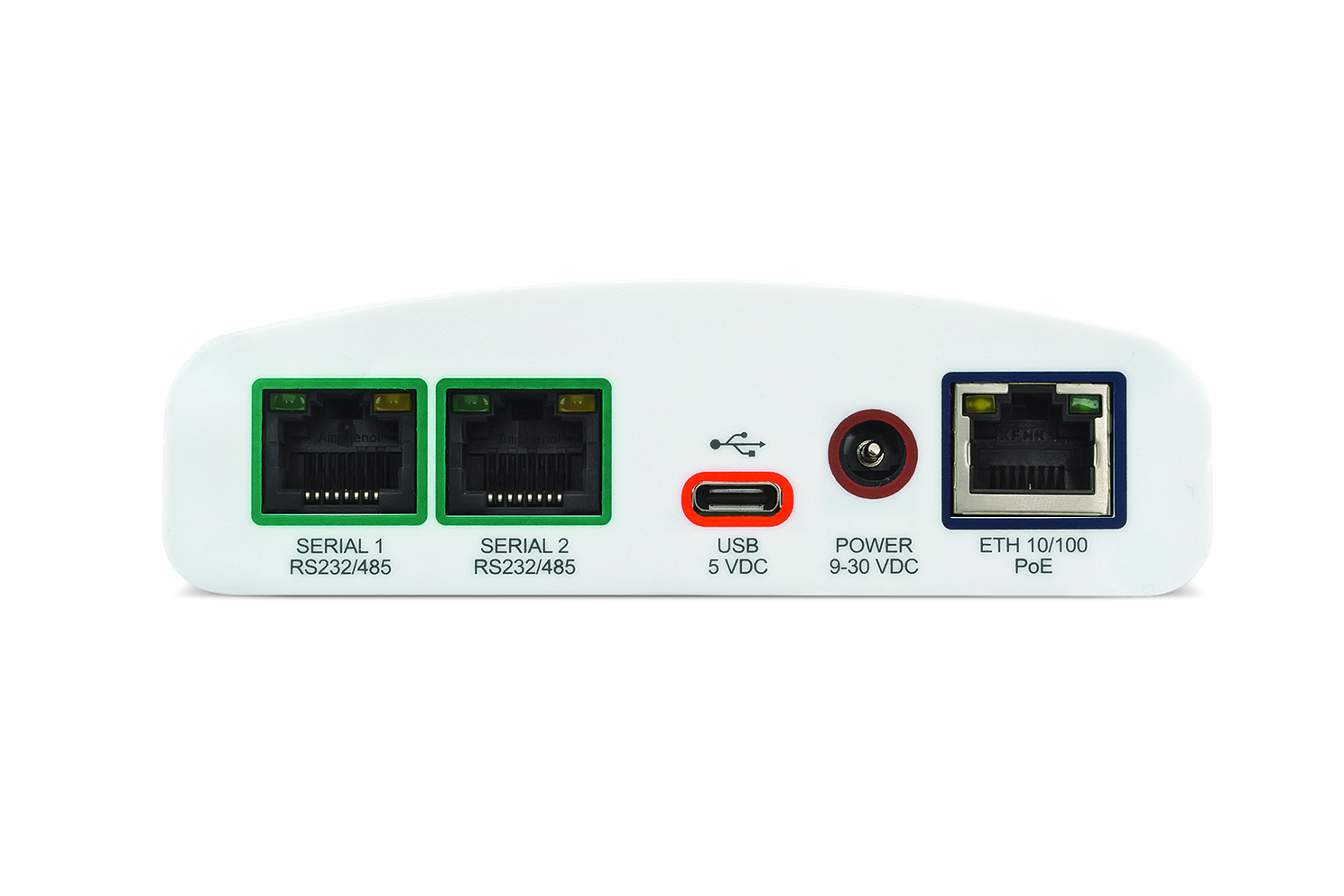

The SGX 5150 (also written SGX5150) connects legacy machines and business-critical assets to an enterprise network over Wi-Fi or Ethernet. It combines up to two RJ45 serial ports, a USB 2.0 Type-C port that runs in host or device mode, and a 10/100 Ethernet port in a compact metal case, so one box can serve as a serial device server, a wireless bridge and an application host.
The radio is 1x1 802.11ac on 2.4 GHz and 5 GHz with 20, 40 and 80 MHz channels, and supports WPA2-Enterprise with EAP-TLS, EAP-TTLS, PEAP and EAP-FAST. Soft AP, Wi-Fi Direct and simultaneous Soft AP plus client mode simplify setup. Serial ports run up to 921 Kbps with 15 kV ESD protection. Power comes from a 9-30 VDC barrel jack, USB Type-C or optional 802.3at Class 2 PoE, and the unit operates from -40 °C to 70 °C.
InfiniShield security provides secure boot, secure firmware updates, data-at-rest protection and role-based access control. Management is through an HTML5 web manager, CLI over serial, Telnet or SSH, SNMP v2/v3 and XML configuration records. The SGX 5150 XL adds 8 GB of internal USB flash for local data collection, and the Yocto-based SDK is shared with the PremierWave 2050.
Key capabilities
- Dual-band 802.11ac
- 1x1 802.11ac radio on 2.4 GHz and 5 GHz with 80 MHz channels, transmit beamforming and LDPC, plus 802.11a/b/g/n compatibility.
- Enterprise Wi-Fi security
- WPA2-Enterprise with EAP-TLS, EAP-TTLS, PEAPv0/v1 and EAP-FAST for joining corporate WLANs, alongside InfiniShield secure boot and data-at-rest protection.
- Three power options
- Power the gateway from a 9-30 VDC barrel jack, USB Type-C, or 802.3at Class 2 PoE on the PoE-enabled part numbers.
- Edge apps in Python
- A Linux SDK and Python runtime services let developers deploy custom data collection and protocol applications directly on the gateway.
- XL local storage
- SGX 5150 XL models add 8 GB of internal USB flash, so data can be logged locally without an external USB drive.
- Industrial temperature range
- Rated for -40 °C to 70 °C operation and 5 to 95% non-condensing humidity, with 1.5 kV surge isolation on Ethernet.
How to choose the right SGX 5150 part number
Choose by serial count, PoE and region. SGX5150020 models have no serial port (USB and Ethernet only). SGX5150122 and SGX5150222 add one RS-232 RJ45 port; SGX5150123 and SGX5150225 add one RS-232 port plus PoE. The XL models add 8 GB storage and two RJ45 serial ports: SGX51502N2 has 2x RS-232 with two antennas in the box, while SGX51502N5 has 2x RS-232/RS-485 with PoE. The suffix sets the regional version: US for North America, ES for Europe and worldwide, JS for Japan, for example SGX5150225ES or SGX51502N5US.
Configure & order
Find your SGX 5150 part number
Every orderable SGX 5150 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
SGX5150020US
$436.80
Ships on backorder
SGX5150122US
$459.20
Ships on backorder
SGX5150123US
$492.80
Ships on backorder
SGX5150222US
$481.60
Ships on backorder
SGX5150225US
$582.40
Ships on backorder

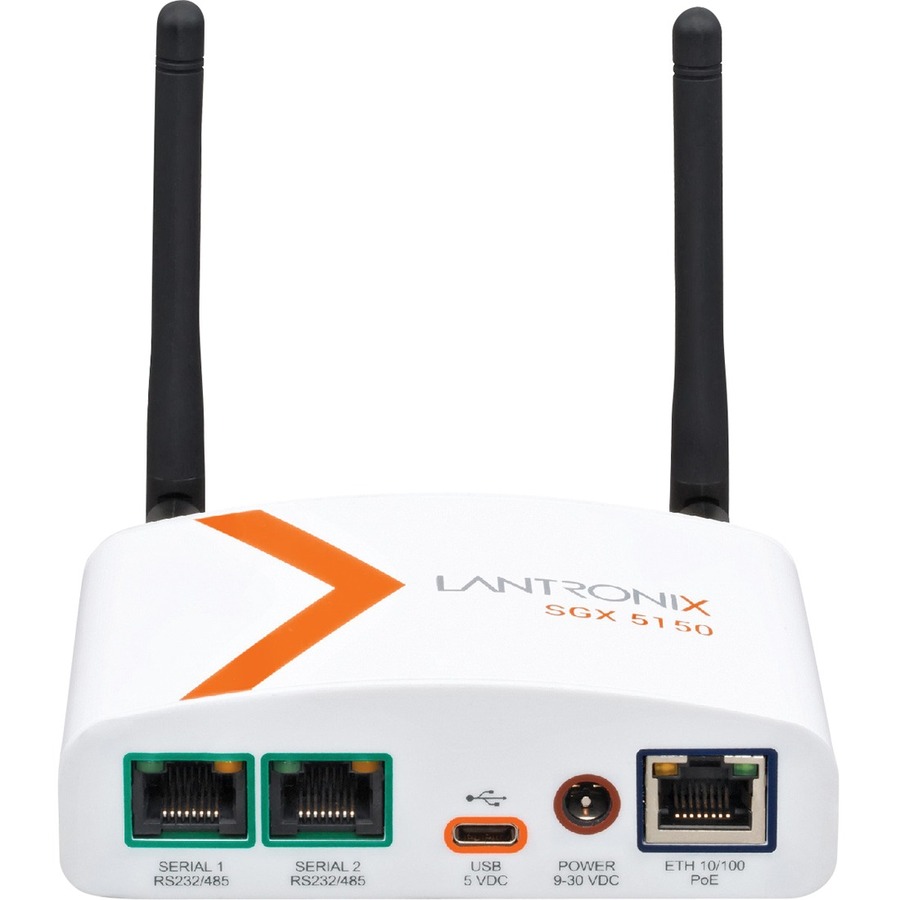

SGX5150020ES
$436.80
Ships on backorder

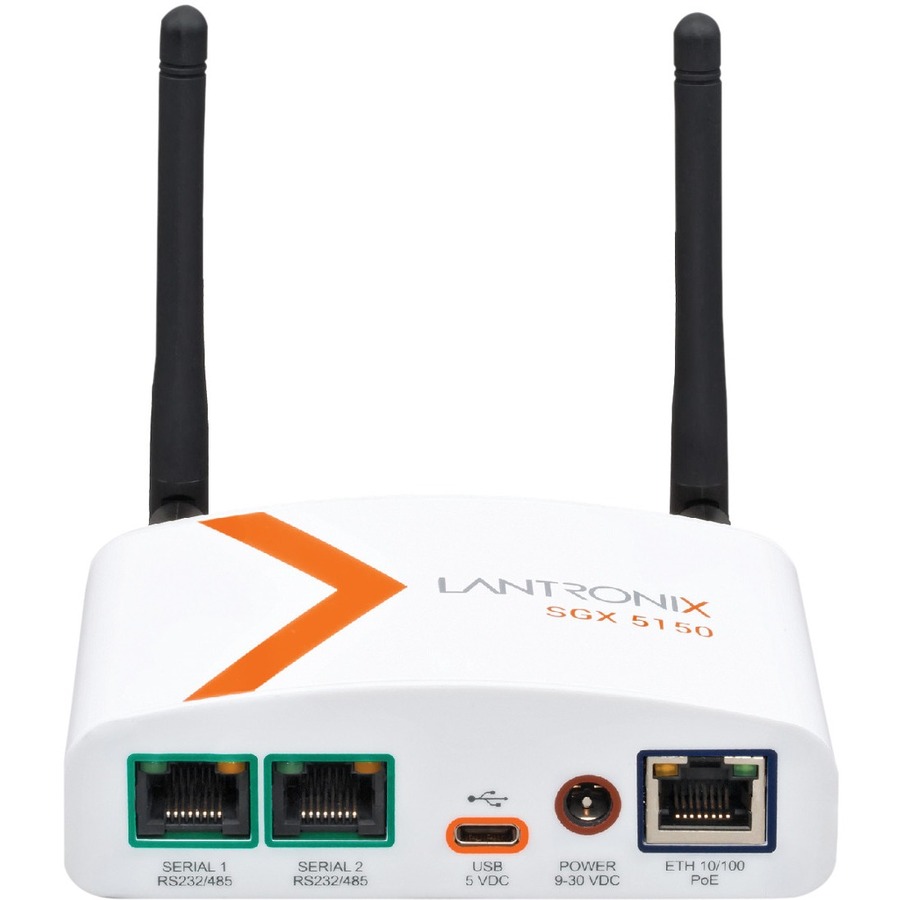

SGX5150225ES
$582.40
Ships on backorder

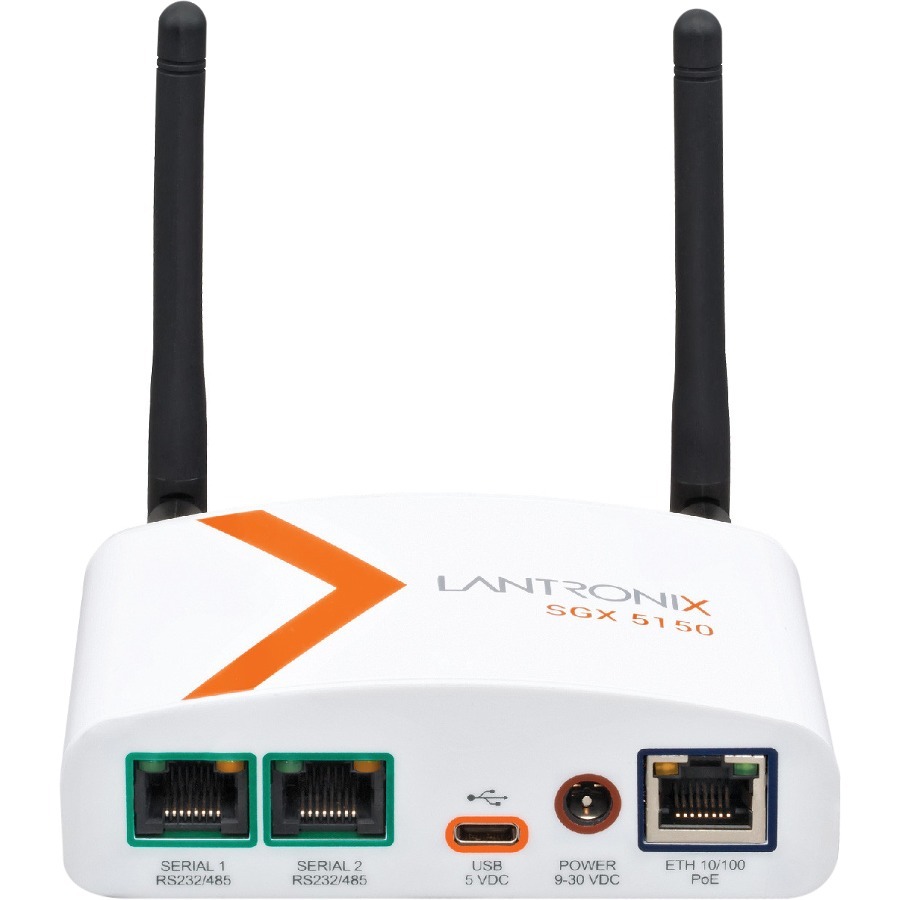

SGX5150122ES
$459.20
Ships on backorder
SGX5150123ES
$492.80
Ships on backorder
SGX5150222ES
$481.60
Ships on backorder

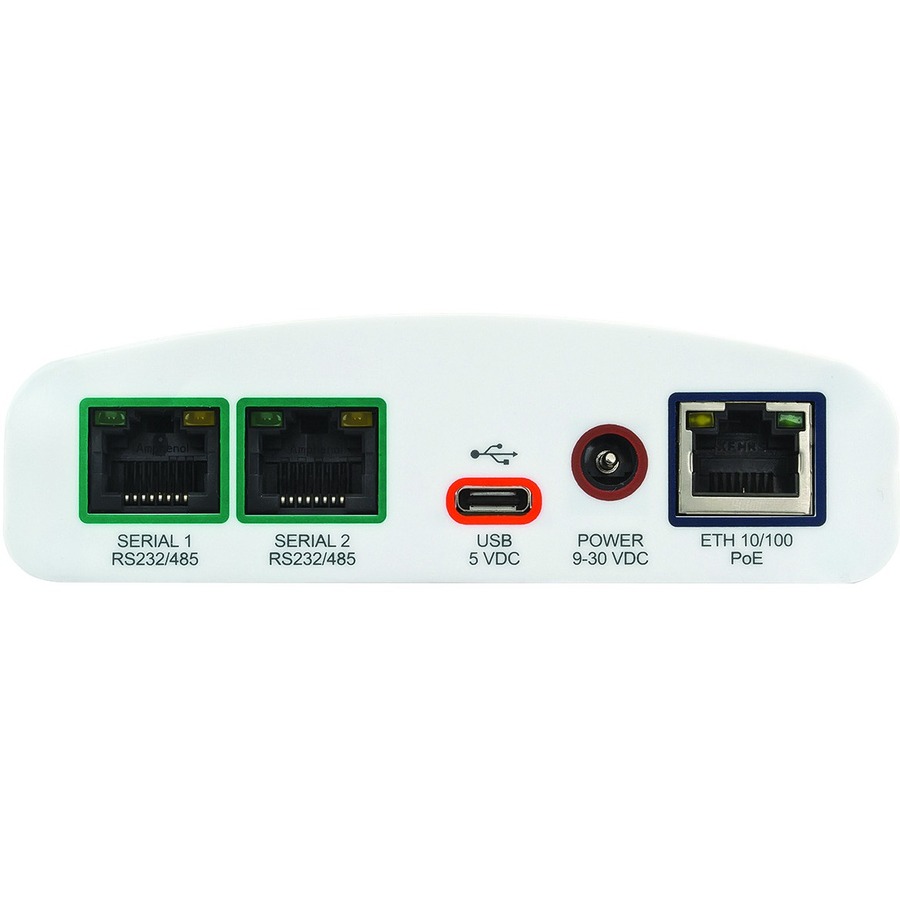

SGX5150020JS
$436.80
Ships on backorder
SGX5150122JS
$459.20
Ships on backorder

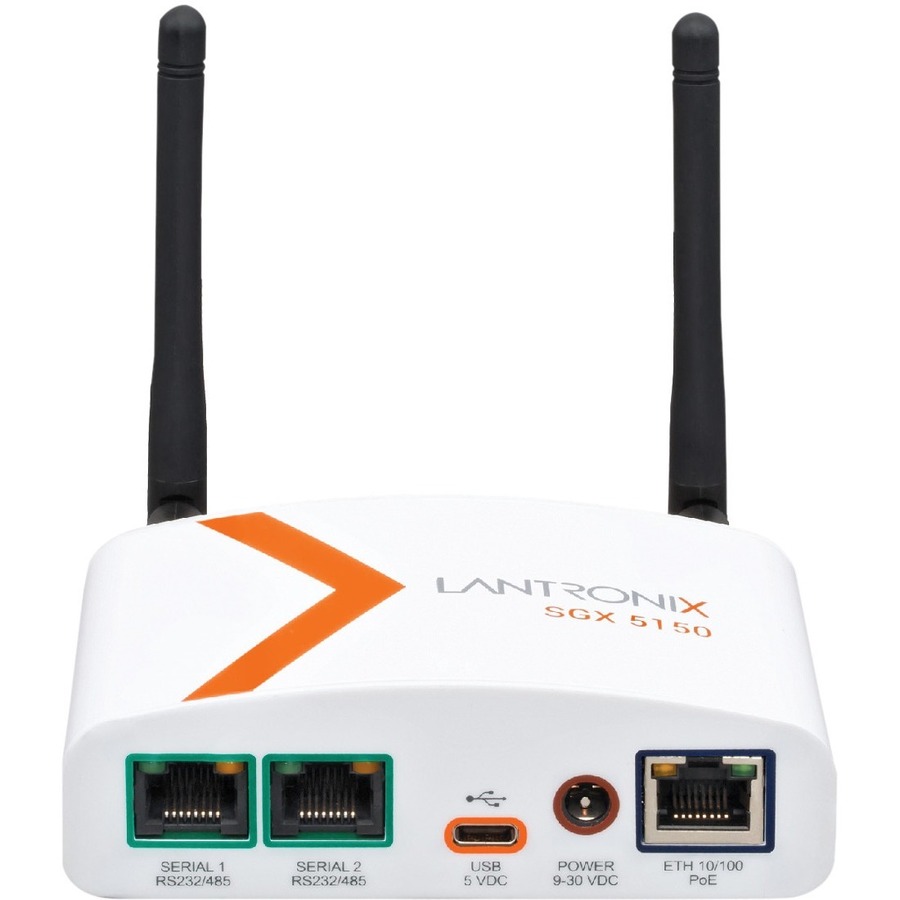

SGX5150123JS
$492.80
Ships on backorder
SGX5150222JS
$481.60
Ships on backorder
SGX5150225JS
$582.40
Ships on backorder

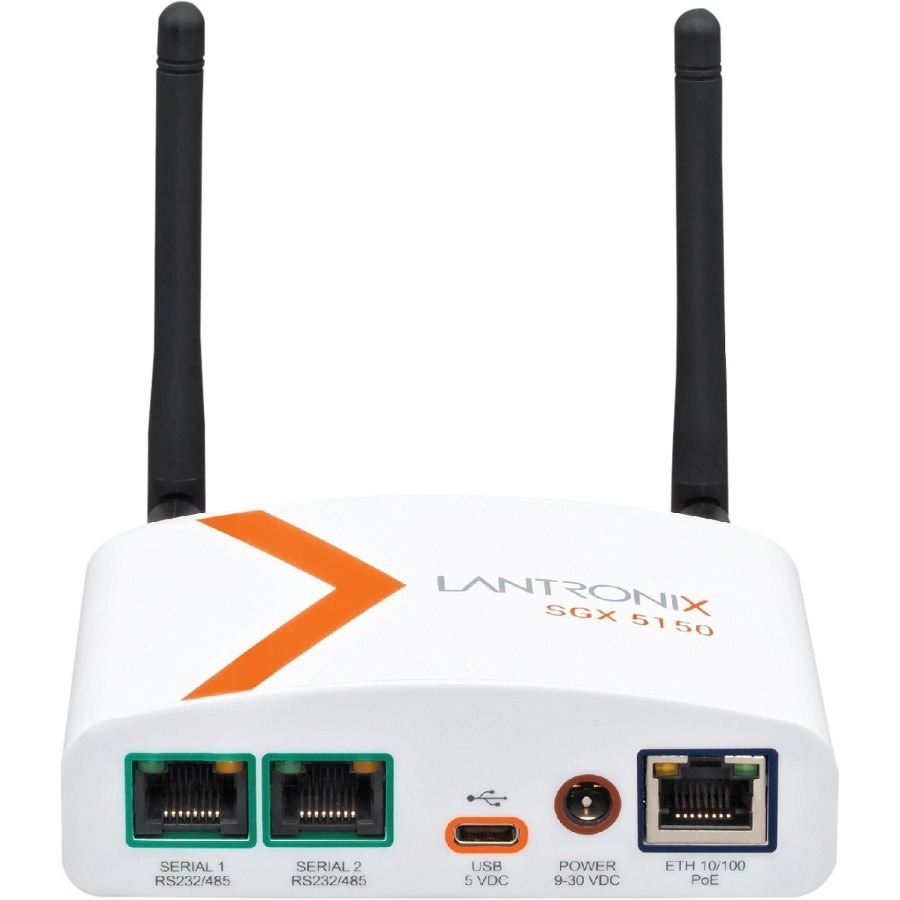

SGX51502N5US
$582.40
Ships on backorder
SGX51502N2ES
$560.00
Ships on backorder
SGX51502N2US
$572.32
Ships on backorder
SGX51502N5ES
$582.40
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the SGX 5150, organized by what it does — power, cables & adapters, mounting & enclosures— each with why you'd add it.
Power
1 item
Power Supply
ACC-520-160-R
Desktop medical grade power supply listed as a Compatible Accessory for the SGX 5150. It provides 12 V DC @ 1 A output from 100-240VAC input.
$85.35
Ships on backorder
Cables & adapters
4 itemsCable
ACC-500-101
SGX 5150 RJ-45 to DB9M DTE cable for connection to a DB9F DCE device. The 6 ft black RJ-45/Serial cable has male RJ-45 and male 9-pin DB-9 ends.
$16.70
Ships on backorder
Adapter
ACC-200.2071
RJ45 to DB9M DTE adapter for connection to a DB9F DCE device.
$17.00
Ships on backorder
Cable
ACC-500-110-R
10 ft CAT5E Ethernet cable listed as a Compatible Accessory for the SGX 5150. It uses RJ-45 Network - Male connectors on the first and second ends.
$17.33
Ships on backorder
Cable
ACC-500-247-R
1000mm black USB Type C to USB-A Male 2.0 cable for the SGX 5150 IoT Device Gateway. It is listed as a RoHS compatible accessory.
$40.26
Ships on backorder
Mounting & enclosures
1 item
Mounting Bracket
SGX5150BKT
SGX5150BKT is a Lantronix SGX 5150 metal case mounting bracket with a snap-on locking angle. It is compatible with the Lantronix SGX 5150 Gateway.
$23.76
16 in stock
Compatibility taken from the Lantronix part-number tables for the SGX 5150. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the SGX 5150 is used
- Wireless serial connectivity for legacy PLCs and instruments
- Edge data logging on SGX 5150 XL with Python apps
- Bridging USB or Ethernet devices onto WPA2-Enterprise Wi-Fi
- Retrofitting factory machines with remote monitoring
- PoE-powered gateways where no local power outlet exists
SGX 5150 datasheets & documentation
SGX 5150 FAQ
What is the difference between the SGX 5150 and SGX 5150 XL?
The XL adds 8 GB of internal USB flash for local data storage and has two RJ45 serial ports instead of one or none. The SGX51502N5 XL versions support RS-232/RS-485 and PoE, while the SGX51502N2 versions are RS-232 only and ship with two antennas.
Can the SGX 5150 be powered over Ethernet?
Yes, on PoE part numbers such as SGX5150123US, SGX5150225ES and SGX51502N5US. The Ethernet port is an 802.3at Class 2 powered device. Other inputs are a 9-30 VDC barrel jack and USB Type-C.
What Wi-Fi security does the SGX 5150 support?
It supports WPA/WPA2-PSK and IEEE 802.1X with AES-CCMP, including WPA2-Enterprise with EAP-TLS, EAP-TTLS (MS-CHAPv2), EAP-PEAPv0, EAP-PEAPv1 and EAP-FAST. TKIP is also available for legacy networks.
What is the SGX 5150 operating temperature range?
Operating range is -40 °C to 70 °C (-40 °F to 158 °F) and storage is -40 °C to 85 °C, at 5 to 95% non-condensing humidity. The enclosure carries an IP30 rating.
Can I run custom applications on the SGX 5150?
Yes. Lantronix provides a Linux SDK and Python runtime services for custom applications. The SDK is the Yocto-based kit Lantronix offers for its Linux gateway devices, including the PremierWave 2050 and SGX 5150.
