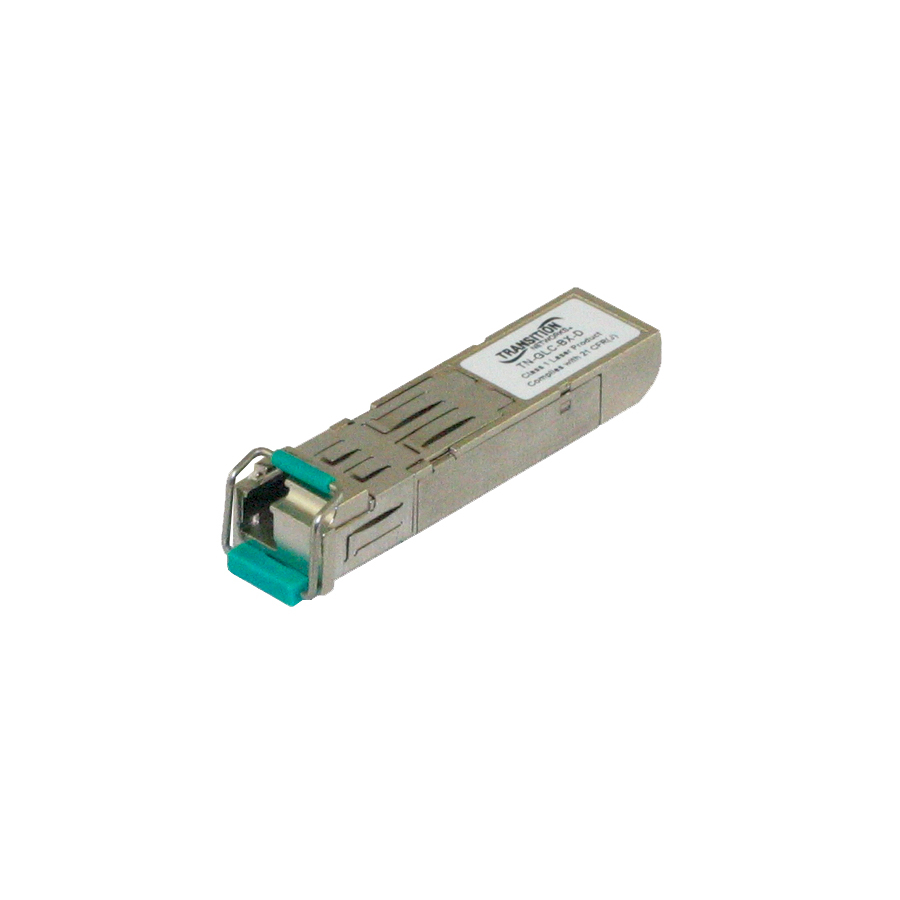

Lantronix TN-GLC-ZX-SM-12 — TN-GLC-ZX-SM Series 1000Base-LX 120 km SFP
$317.54$473.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-LX Gigabit Ethernet over optical fiber
- 1550nm single-mode LC interface with DMI
- 120 km/74.6 mi. maximum distance with 31.0 dB link budget
- Cisco compatible SFP (mini-GBIC) form factor
- 3.3V power input with 0.66 Watts power consumption
- 0°C to 70°C operating environment
- Lifetime warranty
Lantronix TN-GLC-ZX-SM-12 is a Cisco compatible Gigabit SFP module in the TN-GLC-ZX-SM Series. It provides 1000Base-LX connectivity over single-mode optical fiber through an LC interface with DMI. This -12 model is the 120 km/74.6 mi. member of the series and is listed with a 31.0 dB link budget. It uses 1550nm single-mode optics and supports Gigabit Ethernet networking. Lantronix lists 3.3V power input, 0.66 Watts power consumption, 0°C to 70°C operating temperature, IEC-60825 and FDA 21 CFR 1040.10 and 1040.11 certifications, and a lifetime warranty.
Ideal For
- 1000Base-LX Gigabit Ethernet optical uplinks
- Long-distance single-mode fiber links up to 120 km/74.6 mi
- Cisco compatible SFP deployments requiring LC single-mode connectivity
- Optical network and data networking applications
Specifications
| Warranty | Lifetime |
| Data Rate | 1.25G |
| Standards | IEEE 802.3 |
| Dimensions | 0.52” [13 mm] x 2.18” [55 mm] x 0.33” [8 mm] |
| Fiber Mode | Single-mode |
| Wavelength | 1550nm |
| Link Budget | 31.0 dB |
| Power Input | 3.3V |
| TAA Compliant | Yes |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| Power Consumption | 0.66 Watts |
| Network Technology | 1000Base-LX |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 70°C |
| Total Number Of Ports | 1 |
| Maximum Distance Supported | 120 km/74.6 mi. |
Frequently Asked Questions
What distance does TN-GLC-ZX-SM-12 support?▾
TN-GLC-ZX-SM-12 supports 120 km/74.6 mi. with a 31.0 dB link budget.
What fiber type and connector does this SFP use?▾
It uses single-mode optical fiber with an LC connector for 1000Base-LX networking.
Is this a Cisco compatible SFP module?▾
Yes. The product data identifies the TN-GLC-ZX-SM Series as Cisco Compatible Gigabit SFP Modules.
What operating temperature is listed for this module?▾
Lantronix lists the operating environment as 0°C to 70°C for the series. The -40°C to +85°C extended operating temperature is listed for the TN-GLC-ZX-SM-RGD module only.
