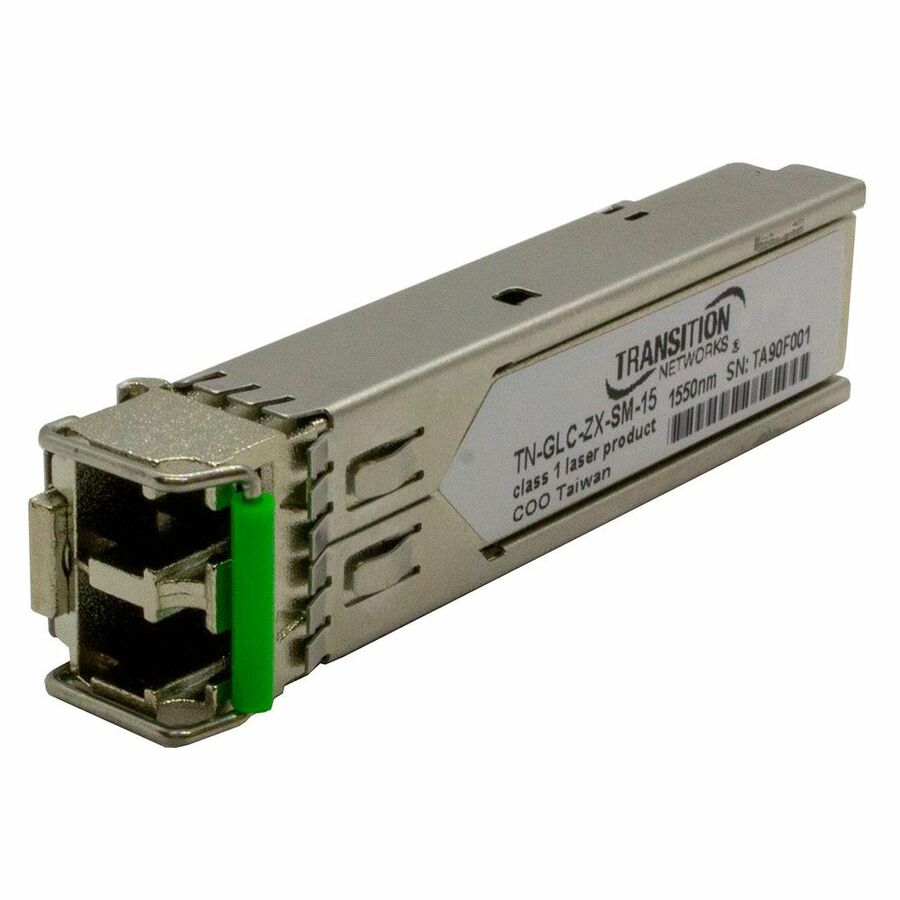

Lantronix TN-GLC-ZX-SM-15 — TN-GLC-ZX-SM Series 1000Base-LX SFP, 150 km
$361.84$539.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-LX network technology for Gigabit Ethernet optical fiber links
- 1550nm single-mode LC optics with DMI
- 150 km/93.2 mi. maximum distance
- 37.0 dB link budget
- 3.3V power input with 0.66 Watts power consumption
- IEEE 802.3 standard listed by Lantronix
The Lantronix TN-GLC-ZX-SM Series provides Cisco Compatible Gigabit SFP Modules 1000Base-LX Single Mode (LC) With DMI. TN-GLC-ZX-SM-15 is the 1550nm single-mode LC version listed for 150 km/93.2 mi. distance and a 37.0 dB link budget. The module uses 3.3V power input, consumes 0.66 Watts, and measures 0.52” [13 mm] x 2.18” [55 mm] x 0.33” [8 mm]. Lantronix lists the standard TN-GLC-ZX-SM Series operating range as 0°C to 70°C and storage range as -40°C to 85°C. The series is listed with IEEE 802.3, IEC-60825, FDA 21, CFR 1040.10 and 1040.11, and a Lifetime warranty.
Ideal For
- 1000Base-LX Gigabit Ethernet optical network links
- Single-mode fiber data networking with LC connectivity
- Long-distance optical fiber runs up to 150 km/93.2 mi
- Deployments that require a Cisco compatible Gigabit SFP module
Specifications
| Warranty | Lifetime |
| Standards | IEEE 802.3 |
| Dimensions | 0.52” [13 mm] x 2.18” [55 mm] x 0.33” [8 mm] |
| Fiber Mode | Single-mode |
| Wavelength | 1550nm |
| Link Budget | 37.0 dB |
| Power Input | 3.3V |
| TAA Compliant | Yes |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| Maximum Distance | 150 km/93.2 mi. |
| Power Consumption | 0.66 Watts |
| Network Technology | 1000Base-LX |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 70°C |
| Total Number Of Ports | 1 |
Frequently Asked Questions
What distance is TN-GLC-ZX-SM-15 specified for?▾
TN-GLC-ZX-SM-15 is listed for 150 km/93.2 mi. with a 37.0 dB link budget.
What connector and fiber mode does this SFP use?▾
It is a 1000Base-LX 1550nm single-mode module with an LC interface and DMI.
Does this SKU have the extended operating temperature range?▾
Lantronix lists extended operating temperature -40°C to +85°C for the TN-GLC-ZX-SM-RGD Module Only. The standard TN-GLC-ZX-SM Series operating range is listed as 0°C to 70°C.
What warranty is listed for this series?▾
The Lantronix page lists a Lifetime warranty for the TN-GLC-ZX-SM Series.
