Single-Port KVM
Lantronix Spider Single-Port KVM-over-IP Switches
Lantronix Spider is a compact single-port KVM-over-IP device that attaches directly to one server and gives administrators secure, BIOS-level keyboard, video and mouse control from a web browser over any IP network.
From $517.00
Overview
About the Lantronix Spider
Spider, also known as the Spider KVM or by its SLS200 model number, replaces the long KVM cable runs and shared switch ports of traditional KVM with a small unit that connects straight to a server's VGA and keyboard/mouse ports. It measures 13.2 x 5.8 x 3.1 cm and weighs 185 g. Each server gets its own 1:1 non-blocked remote session, so adding a server means adding one Spider rather than a 16 or 32-port switch, and a single failed unit affects only one machine.
A hardware video encoder compresses VGA output up to 1600x1200 at 60 Hz, with automatic resolution detection and manual override for non-standard formats. Keyboard, mouse and video data are encrypted, and users authenticate locally or through RADIUS, LDAP or Active Directory. Virtual Media is supported. A second 10/100 Ethernet port uses SwitchPort+ to cascade units through one uplink, and an RS-232 port runs at up to 115,200 bps for serial console access or an external modem.
Spider is managed from a browser with no client software required, plus Telnet/SSH CLI and the optional SpiderView Windows utility. It can also sit on the local port of an existing analog KVM switch to add remote access, and fleets can be managed through Percepxion.
Key capabilities
- BIOS-level remote control
- Spider captures keyboard, video and mouse at the hardware level, so administrators can enter BIOS, reinstall an OS or recover a hung server remotely.
- Non-blocked per-server access
- Each Spider serves one server with its own non-blocked connection, and multiple users can access the attached server simultaneously.
- Cascade over one connection
- The dual-Ethernet SwitchPort+ design daisy-chains multiple Spiders through a single Ethernet uplink, avoiding extra cable drops as servers are added.
- Virtual Media support
- Built-in Virtual Media support lets administrators present media to the attached server remotely for maintenance and software installation.
- Directory authentication
- RADIUS, LDAP and Active Directory authentication, IP source address filtering and user groups with permissions control who can reach each server.
- Zero-U footprint
- The unit draws 5 VDC at 1.6 A from the included power supply, dissipates 4 W and mounts with the provided Zero U kit.
How to choose the right Spider part number

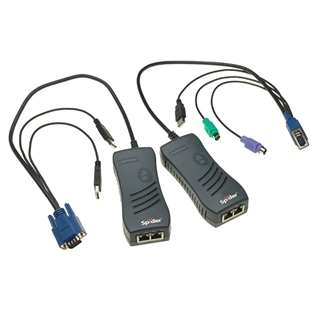

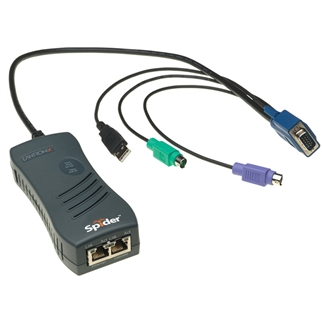

All Spider SLS200 models are single-port KVM-over-IP units; they differ by keyboard/mouse connector and VGA cable length. SLS200PS20-02 has PS/2 and USB connectors with a 21-inch VGA cable, and SLS200PS2X0-02 is the same with a 58-inch cable. SLS200USB0-02 is USB-only with a 21-inch cable, and SLS200USBX0-02 is USB-only with a 58-inch cable. Choose USB-only for modern servers and the PS/2 versions for legacy hardware. ACC 520-0203-00 is the replacement 5 VDC 2 A power supply with four regional adapters.
Configure & order
Find your Spider part number
Every orderable Spider configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
SLS200PS20-02
$517.00
Ships on backorder
SLS200USB0-02
$517.00
3 in stock
SLS200PS2X0-02
$537.00
Ships on backorder
SLS200USBX0-02
$537.00
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the Spider, organized by what it does — power— each with why you'd add it.
Power
1 itemPower Supply
ACC 520-0203-00
Replacement power supply for compatible Lantronix Spider KVM-Over-IP and SpiderDuo KVM products.
Compatibility taken from the Lantronix part-number tables for the Spider. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the Spider is used
- Remote BIOS access to servers in branch offices
- Per-server KVM in hosting and colocation data centers
- Adding remote IP access to an existing analog KVM switch
- Test and development labs spread across campus buildings
- Customer self-service server maintenance at hosting providers
Spider FAQ
What video resolution does the Lantronix Spider support?
Spider supports VESA standard VGA resolutions up to 1600x1200 at 60 Hz over an HD15 connector, on hardware revision G22+ and E21+. It detects resolution automatically and allows manual settings for non-standard video formats.
What is the difference between SLS200USB0-02 and SLS200PS20-02?
SLS200USB0-02 connects to the server with USB-only keyboard and mouse, while SLS200PS20-02 includes both PS/2 and USB connectors, selectable in software. Both have a 21-inch VGA cable; the X versions use a 58-inch cable.
Does Lantronix Spider need client software?
No. Spider is browser-based and requires no client software. Command-line access is available through Telnet or SSH, and SpiderView, an optional Windows client management utility, is included.
Can multiple Spider KVM units share one network connection?
Yes. Each Spider has a network port and a cascade port, both 10/100Base-T. Using SwitchPort+, units can be daisy-chained so all of them are reached through a single Ethernet connection.
What is the operating temperature of the Spider KVM?
Spider operates from 0 to 45°C (32 to 115°F) and can be stored from -20 to 70°C, at 0 to 95% non-condensing humidity. It dissipates 4 W.
