Single-Port KVM

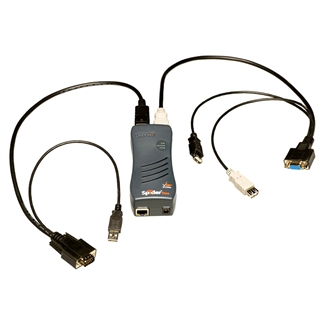

Lantronix SpiderDuo Single-Port KVM-over-IP with Local Access
A palm-sized, zero-U KVM-over-IP device that gives one server or PC both BIOS-level remote control over Gigabit Ethernet and a local keyboard, video and mouse console, with no software to install.
From $559.00
Overview
About the Lantronix SpiderDuo
SpiderDuo (also written Spider Duo) attaches to a single computer's VGA and keyboard/mouse ports and makes its console available over the network, while still passing through a local monitor, keyboard and mouse. Administrators can manage a machine down to the BIOS, reinstall an OS or recover a hung system without traveling, and staff on site keep normal local access. The zero-U form factor fits where a rack KVM won't: kiosks, ATMs, POS systems, branch offices, training centers and test labs.
Virtual Media lets users transfer files, redirect local drives, install patches and run full system upgrades from an ISO file. Video is HD15 VGA up to 1600x1200 at 60 Hz, and the unit supports local access plus up to 8 simultaneous remote users. Keyboard, mouse and video data are hardware-encrypted, with LDAP, RADIUS and Active Directory authentication, IP source filtering and per-group permissions.
An RS-232 port runs at up to 115,200 bps for serial pass-through, configuration or the optional PCU100-01 power control unit, which adds remote power cycling. SpiderDuo runs on 5 VDC at 2 A from the included supply, dissipates 4-8 W and operates from 0°C to 45°C. Fleet management is available through the Percepxion for Networking cloud platform.
Key capabilities
- Local plus remote
- Local KVM console passthrough and up to 8 simultaneous remote users on the same target computer.
- BIOS-level control
- Full keyboard, video and mouse access from power-on through BIOS, with no software installed on the host.
- Virtual Media
- Redirect local drives, transfer files, install patches and run full system upgrades from an ISO image over the network.
- Remote power cycling
- The optional PCU100-01 single-port power control unit lets authorized users power cycle the host over the network.
- Zero-U footprint
- Palm-sized at 13.2 x 5.8 x 3.6 cm and powered by 5 VDC, it mounts behind the computer it controls.
- Encrypted sessions
- Hardware encryption of keyboard, mouse and video data, plus LDAP, RADIUS and Active Directory authentication and per-group permissions.
How to choose the right SpiderDuo part number
Pick the model that matches the target computer's keyboard and mouse ports. SLSLP400USB-02 uses USB connectors and SLSLP400PS2-02 uses PS/2; both ship with 21.6-inch VGA cables and the same local plus remote KVM-over-IP features. For a longer reach to the computer, the 500-199-R is a USB computer input cable with a 59-inch VGA run. Add PCU100-01 for remote power cycling (100-240 VAC, 10 A) and ACC 520-0203-00 as a replacement 5 VDC 2 A supply.
Configure & order
Find your SpiderDuo part number
Every orderable SpiderDuo configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
SLSLP400USB-02
$559.00
1 in stock
SLSLP400PS2-02
$559.00
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the SpiderDuo, organized by what it does — power, cables & adapters— each with why you'd add it.
Power
1 itemPower Supply
ACC 520-0203-00
Replacement power supply for compatible Lantronix Spider KVM-Over-IP and SpiderDuo KVM products.
Cables & adapters
2 items
Single port power control unit
PCU100-01
Single port power control unit for the Lantronix SpiderDuo KVM. It is rated for 100-240VAC, 50/60Hz, 10A and includes IEC320 power cables.
$234.00
Ships on backorder
Cable
500-199-R

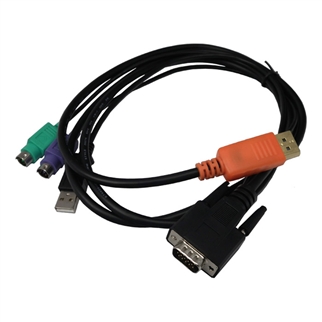

Extended length computer input cable with a USB connector and a 59" VGA cable. It is listed as a compatible accessory for Lantronix SpiderDuo KVM.
Compatibility taken from the Lantronix part-number tables for the SpiderDuo. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the SpiderDuo is used
- Remote BIOS and OS recovery for branch-office servers
- Managing kiosks, ATMs and POS systems without site visits
- Test and development lab machines shared by remote engineers
- Remote power cycling of a hung PC with PCU100-01
SpiderDuo FAQ
What is the difference between SLSLP400USB-02 and SLSLP400PS2-02?
The keyboard and mouse connection to the target computer. SLSLP400USB-02 uses USB and SLSLP400PS2-02 uses PS/2. Both include 21.6-inch VGA cables and identical KVM-over-IP features.
How many users can access a SpiderDuo at once?
Local access plus up to 8 simultaneous remote users, with user and group permissions and LDAP, RADIUS or Active Directory authentication. IP source address filtering limits where sessions can originate.
What video resolution does SpiderDuo support?
HD15 VGA video up to 1600x1200 at 60 Hz. Target systems can run Windows, Unix, Linux or Mac OS X. Choose the USB or PS/2 model to match the keyboard and mouse ports.
Can SpiderDuo power cycle the server?
Yes, with the optional PCU100-01 single-port power control unit connected to its serial port. Authorized users can then initiate power cycling over the network. The PCU100-01 handles 100-240 VAC at 10 A.
Does SpiderDuo need software on the target computer?
No. It connects to the computer's video and keyboard/mouse ports and is accessed through a browser or Telnet/SSH client, with full BIOS-level control. A local monitor, keyboard and mouse remain usable.
