Lantronix C6110-1040 — Ion DS1 T1/E1/J1 Module
$714.46$1,064.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 4 RJ-48 copper interfaces for T1/E1/J1 connections
- 1 SFP fiber interface for the fiber link
- T1(J1) 1.544 Mb/s and E1 2.048 Mb/s copper port data rates
- 100Base-X/OC-3 SFP port support
- Local and remote loopbacks for testing
- Remote management and remote firmware upgrade
- Power, Port Status, Loopback and AIS status LEDs

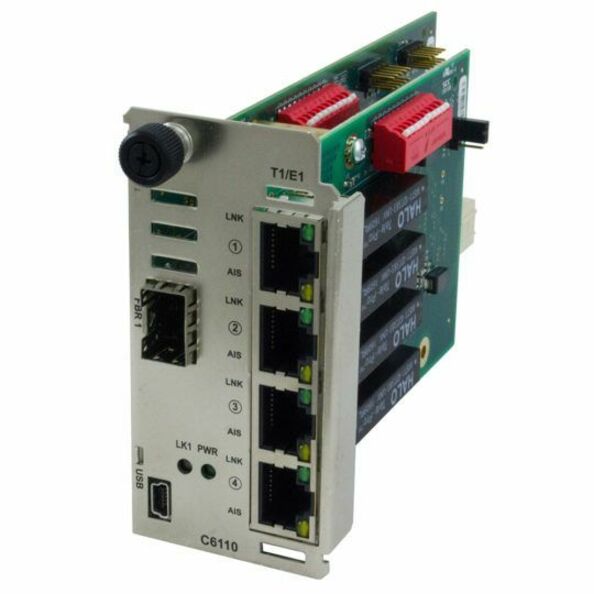

The Lantronix C6110-1040 is an ION DS1 managed T1/E1/J1 mux media converter module. It extends multiple T1/E1/J1 connections over fiber with four RJ-48 copper interfaces and one SFP fiber interface. The module provides loopback via test set, local and remote loopbacks, LEDs for device status and troubleshooting, and settings for line code, line build out, loopbacks and Alarm Indication Signal (AIS). The C6110-1040 supports access to complete status and configuration on the local and remote device, plus remote firmware upgrade and remote management. The C6110 converter must be used in pairs; a typical installation uses a modular card in a managed ION chassis linked over fiber to a stand-alone S6110 in a remote location.
Ideal For
- Extending multiple T1/E1/J1 connections over fiber
- Linking a managed ION chassis to a stand-alone S6110 in a remote location
- Remote management of local and remote T1/E1/J1 converter devices
- Testing T1/E1/J1 links with local and remote loopbacks
Specifications
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Standards | ANSI T1.102; T1.403; T1.408; ITU I.431; G.703; G.736; G.775; G.823; ETSI 300-166; ETSI 300-233; TBR 12/13; AT&T Pub 62411 |
| Status Leds | Power, Port Status, Loopback and AIS |
| E1 Data Rate | 2.048 Mb/s |
| Certifications | EN55022 Class A, EN55024, CE mark |
| T1j1 Data Rate | 1.544 Mb/s |
| Fiber Interface | 1 SFP port (Empty) |
| Switch Settings | Line coding, line build out, loopback and AIS |
| SFP+ Port Data Rate | 100Base-X/OC-3 |
| Dimensions W X D X H | 1.72” [44 mm] x 6.5” [165 mm] x 3.4” [86 mm] |
| Operating Temperature | 0°C to 50°C |
| Rj-48 Copper Interfaces | 4 |
| Power Consumption Dual Fiber Model | 6 Watts (max: dual fiber model) |
| Power Consumption Single Fiber Model | 5.5 Watts (max: single fiber model) |
Frequently Asked Questions
What interfaces does the C6110-1040 include?▾
It includes four RJ-48 copper interfaces and one fiber interface using an empty SFP port.
Does the C6110-1040 need to be used in pairs?▾
Yes. The C6110 converter must be used in pairs.
Is the SFP port populated?▾
The part row lists the fiber interface as 1 SFP port (Empty).
What data rates are listed for this module?▾
The RJ-48 copper ports support T1(J1) at 1.544 Mb/s and E1 at 2.048 Mb/s. The SFP port is listed as 100Base-X/OC-3.
