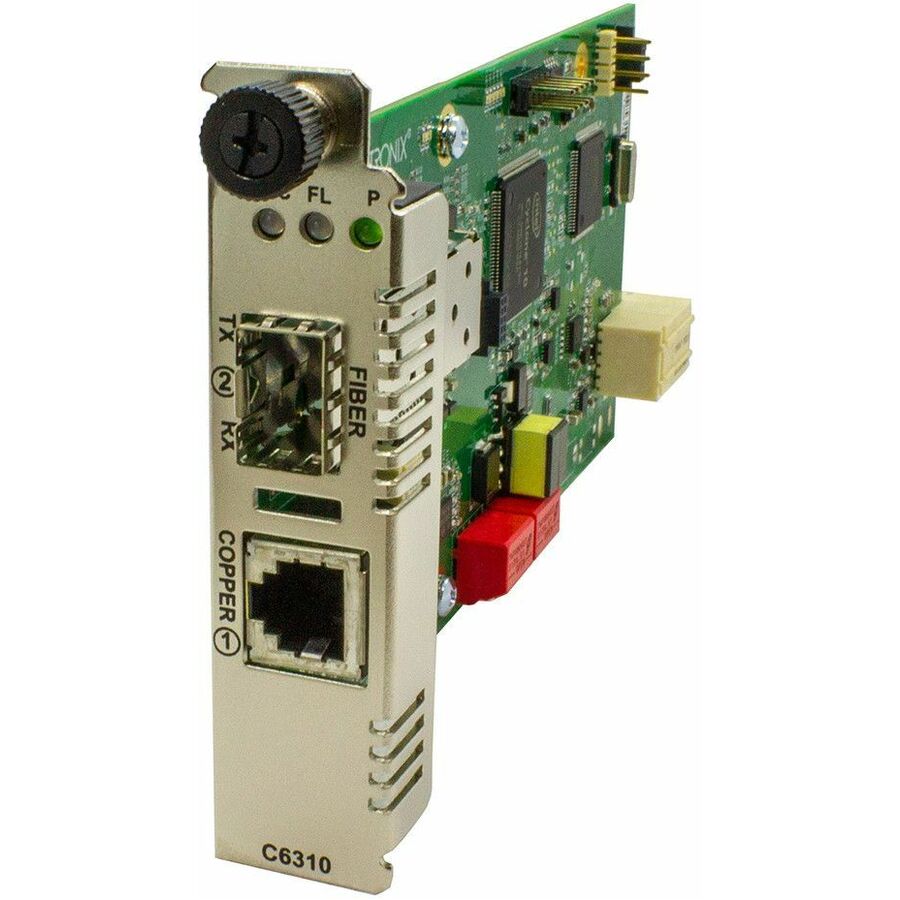

Lantronix C6310-3340 — Ion Pots Media Converter
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Key Features
- POTS over fiber extension: connects twisted pair RJ-11 to 1 empty SFP slot
- 5 km/3.1 mi. connection: chassis card media converter for RJ-11 to SFP fiber deployments
- FXO or FXS mode: single product configurable to either mode
- Voice-grade signaling: supports audio transmission, ringing at the distant end and Caller ID
- Automatic Ring Down: supported when both converters are configured to FXS Mode
- ION chassis management: supports SNMP Management when installed in a managed ION chassis
- Remote paired-unit management: supports in-band management over the fiber
Ideal For
- Extend the useful life of legacy analog telecom equipment with voice-grade service over fiber
- Act as a telephone and connect to a telephone line or PBX
- Act as a central office and connect to a telephone device
- Support permanent or temporary job-site installations
Specifications
| Ren | 1.0 |
| Safety | CE Mark |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Distance | 5 km/3.1 mi. |
| Humidity | 5% to 95% (non-condensing) |
| Immunity | EN55024 |
| Standard | FCC Part 68; ETSI ES 203-021 (TBR21); ISED CS-03 |
| Warranty | Lifetime |
| Emissions | EN55032 Class A, FCC Part 15 Class A |
| Dimensions | 0.86” [22 mm] x 6.5” [165 mm] x 3.4” [86 mm] |
| Product Type | Chassis Card Media Converter |
| Ring Cadence | 25 Hz |
| Battery Source | 48 VDC +/- 5V |
| Ring Frequency | 16-65 Hz |
| Ringing Supply | 90Vp-p |
| Fiber Interface | (1) SFP Slot (empty) |
| Copper Interface | Twisted Pair (RJ-11) |
| Power Consumption | 2.0 Watts without the SFP |
| Fxo Mode Impedance | 600 ohms |
| Fxs Mode Impedance | 600 ohms |
| Storage Temperature | -40°C to +85°C |
| Analog Port Connector | RJ11 |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
Does the C6310-3340 need to be deployed in pairs?▾
Yes. Lantronix states that the C6310-3340 must be deployed in pairs: chassis card and stand-alone unit, chassis card and chassis card, or stand-alone unit and stand-alone unit.
What interfaces does the C6310-3340 provide?▾
It provides a twisted pair RJ-11 interface and one empty SFP slot for the fiber connection.
Does the C6310-3340 support analog POTS lines?▾
Yes. The C6310-3340 only supports analog POTS lines and is compatible with traditional telephone modems.
How is the C6310-3340 managed?▾
SNMP Management is supported when the unit is installed in a managed ION chassis. It also supports remote management of the paired unit, in-band, over the fiber.
