Lantronix G6-Q64-5R-EG-WW-S — SmartEDGE G600 5G Edge AI Gateway

Lantronix|

MPN: G6-Q64-5R-EG-WW-S

Available on Backorder

Call for Price

Ships from and sold by A5 IT

Call for pricing

This part is quoted to order. Call for current pricing, lead time and volume breaks on the Lantronix G6-Q64-5R-EG-WW-S.

224-312-2244

Request a Quote Email Sales

Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.

New, with full manufacturer warranty

Key Features

Qualcomm Dragonwing QCS6490 with an 8-core CPU up to 2.1 GHz and up to 12 dense TOPS
8GB RAM, 64GB UFS and a user-installable NVMe M.2 SSD, with built-in RTC, watchdog and TPM
Global 5G Release 17 RedCap with 4G Cat 4, dual-SIM dual standby and tamper-detected SIM access
Wi-Fi 6E with WPA3 and 802.11r, BLE 5.2, and GNSS with L1+L5 on the 5G variant
PoE++ PD WAN, two PoE+ PSE LAN ports, 2.5G/1G SFP+ WAN, isolated serial, CAN FD and isolated I/O
Operates from -30 °C to +75 °C at up to 95% RH on 9 to 60 V DC or PoE
Yocto real-time Linux with containers, Percepxion device management and EdgeFabric.ai AI pipeline integration

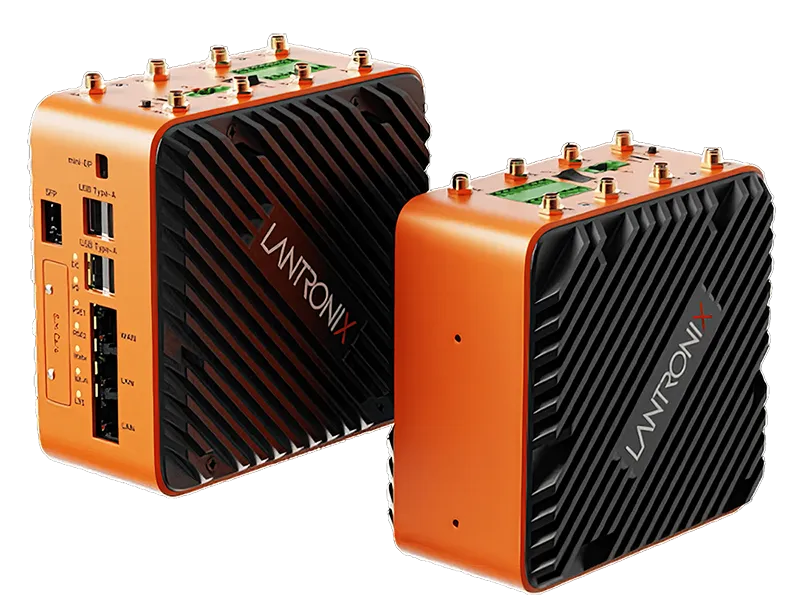

The Lantronix G6-Q64-5R-EG-WW-S is the SmartEDGE G600 Edge Compute Gateway with a Qualcomm QCS6490 processor and global 5G. It runs vision and physical AI workloads where the data is generated: real-time computer vision pipelines, automated inspection, robotics and intelligent surveillance. Local processing enables low-latency anomaly detection and autonomous response in factories, logistics sites, power grids, distributed energy resources and transportation networks. The SMARC compute module pairs an 8-core CPU at up to 2.1 GHz with up to 12 dense TOPS of AI performance, 8GB RAM and 64GB UFS, plus a user-installable NVMe M.2 SSD and a built-in TPM. Cellular is 5G Release 17 RedCap with 4G Cat 4 and dual-SIM dual standby, behind a SIM cover with tamper detection. Wi-Fi 6E, BLE 5.2 and multi-constellation GNSS are integrated. Wired I/O includes a PoE++ powered WAN port, two PoE+ LAN ports, a 2.5G/1G SFP+ WAN, isolated RS-232/422/485, CAN FD, four isolated inputs, four isolated outputs and an ignition input. It accepts 9 to 60 V DC and operates from -30 °C to +75 °C. The gateway runs a Yocto-based real-time Linux OS with container support, VPN tunnels, multi-WAN load balancing and a protocol conversion suite covering EtherCAT, DLMS client, DNP3 outstation and Modbus. Percepxion handles provisioning, telemetry, firmware and configuration updates, and EdgeFabric.ai integration manages model packaging and pipeline deployment. InfiniShield provides the security layer. Ignition Edge and Cumulocity run as integrated containers, and an SDK, BSP and user scripting are available. A DIN clip, wall bracket, Combicon header kit and cellular, GNSS and Wi-Fi antennas ship in the box.

Ideal For

Real-time video analytics on legacy surveillance cameras
Automated visual inspection and robotics in manufacturing
Predictive maintenance for substations and solar or wind farms
Modbus to OPC-UA conversion for remote industrial asset monitoring
Energy flow orchestration for EMS and battery storage stations

Specifications

Cpu	8-core, up to 2.1 GHz
SIM	Dual-SIM dual standby; 3-in-1 dual-SIM/SD slot behind a screw plate with tamper detection
USB	1x USB 3.0 Type-C console port with 70W power-in support; 4x USB 3.0 Type-A host
GNSS	GPS, GLONASS, BeiDou, Galileo; L1, L1+L5 on 5G variant
Wi-Fi	802.11ax Wi-Fi 6E, 2.4/5/6 GHz; 802.11r; WPA3
Model	SmartEDGE G600 Edge Compute Gateway, Q6490, Global 5G
Memory	8GB RAM
Serial	1x RS-232/422/485, isolated, on a 16-pin Combicon header
Weight	Approximately 300 g
Can Bus	1x CAN FD
SFP+ WAN	1x 2.5G/1G SFP+ WAN
Storage	64GB UFS; user-installable NVMe M.2 SSD
Cellular	Global 5G Release 17 RedCap with 4G Cat 4
Humidity	Up to 95% RH
Mounting	DIN rail (DIN clip) or wall (wall mounting bracket)
Bluetooth	BLE 5.2
Enclosure	Plastic casing with brushed aluminum alloy heatsink
PoE++ Input	46 V DC for IEEE 802.3af; 52 V DC for IEEE 802.3at; 54 V DC for IEEE 802.3bt
Processor	Qualcomm Dragonwing QCS6490, SMARC form factor
Containers	Edge compute container support and management; integrated Ignition Edge and Cumulocity containers
Digital Io	4x isolated input; 4x isolated output; 1x ignition input
Dimensions	135 x 131.5 x 75 mm without connectors
In The Box	DIN clip; headers kit (2-pin Combicon with screw, 16-pin Combicon); antenna kit (cellular, GNSS, Wi-Fi); wall mounting bracket
Development	User scripting, SDK and BSP available
Power Input	9 to 60 V DC on a 2-pin Combicon header with screw
Status Leds	7 (Power, PD, PSE1, PSE2, State, Wi-Fi, Cellular)
Ethernet LAN	2x 10/100/1000BASE-T PSE PoE+ LAN ports
Ethernet WAN	1x 10/100/1000BASE-T PD PoE++ WAN port
Lpwan Option	LPWAN option via M.2
Power Switch	ON/OFF switch for soft shutdown, GPIO configurable
Product Type	5G Edge AI Compute Gateway
Ai Ml Pipeline	EdgeFabric.ai integration
Ai Performance	Up to 12 Dense TOPS
Display Output	1x miniDP; FHD+ at 144 Hz, 4K at 60 Hz, 1080 x 2520 pixels
Operating System	Linux RT OS (Yocto)
Cellular 5g Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n53, n66, n70, n71, n77, n78, n79
Device Management	Percepxion telemetry, firmware and configuration updates
Hardware Security	RTC, watchdog and TPM built in; SIM cover with tamper detection
Security Software	InfiniShield
Cellular LTE Bands	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B34, B38, B39, B40, B41, B42, B43, B48, B66, B71
Networking Software	VPN tunnel support; multi-WAN load balancing and priority
Storage Temperature	-40 °C to +85 °C
Industrial Protocols	Protocol conversion suite: EtherCAT, DLMS client, DNP3 outstation, Modbus
Operating Temperature	-30 °C to +75 °C

Documentation

SmartEDGE Product Brief

SmartEDGE Product Brief (A4)

Frequently Asked Questions

How much AI performance does the Lantronix SmartEDGE G600 have?▾

The G6-Q64-5R-EG-WW-S uses a Qualcomm Dragonwing QCS6490 on a SMARC module, rated at up to 12 dense TOPS, with an 8-core CPU up to 2.1 GHz, 8GB RAM and 64GB UFS. It targets on-device computer vision, inspection and anomaly detection.

Is the SmartEDGE G600 full 5G or 5G RedCap?▾

It uses 5G Release 17 RedCap with 4G Cat 4 across global bands, including n41, n71, n77 and n78 on 5G and B2, B4, B12, B13 and B66 on LTE. Dual-SIM dual standby runs through a 3-in-1 dual-SIM/SD slot behind a tamper-detected screw plate.

Can the SmartEDGE G600 gateway be powered over Ethernet?▾

Yes. Its gigabit WAN port is a PoE++ powered device port, with 46 V DC for 802.3af, 52 V DC for 802.3at and 54 V DC for 802.3bt listed. It also accepts 9 to 60 V DC on a Combicon header, and its two LAN ports supply PoE+.

Which industrial protocols does the SmartEDGE gateway support?▾

The software stack includes a protocol conversion suite listing EtherCAT, DLMS client, DNP3 outstation and Modbus, and Lantronix cites Modbus to OPC-UA conversion as an application. Ignition Edge and Cumulocity run as integrated containers, and an SDK, BSP and user scripting are available.

What comes in the box with the G6-Q64-5R-EG-WW-S?▾

The box includes a DIN clip, a wall mounting bracket, a headers kit with a 2-pin Combicon connector with screw and a 16-pin Combicon connector, and an antenna kit with cellular, GNSS and Wi-Fi antennas.
