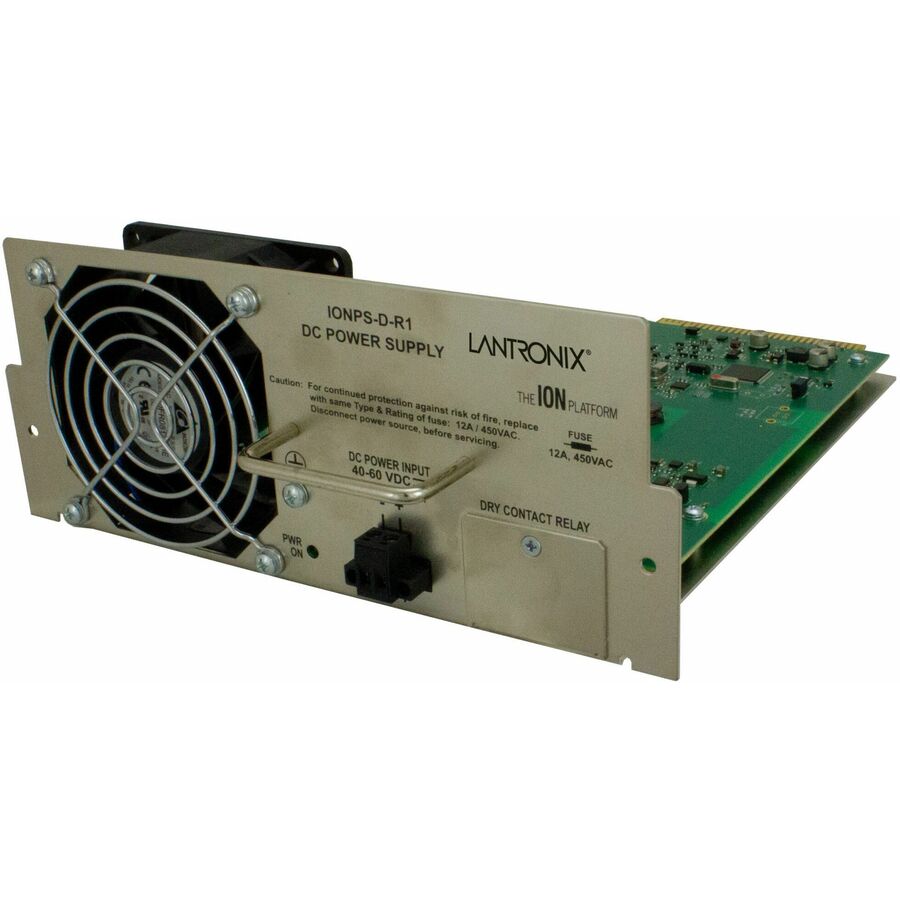

Lantronix IONPS-D-R1 — 48 VDC Power Supply Module
$715.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- -48 VDC power supply module for the 19-slot ION chassis
- Up to 2 power supply modules supported in the ION219-D chassis
- 48 VDC (40-60 VDC) @ 5A power input
- Instant fail-over and load-sharing configuration options when used for redundancy
- PWR status LED indicates the module is providing power to the ION chassis
- UL Listed (UL60950), FCC Class A, CISPR Class A and CE Mark certifications
Lantronix IONPS-D-R1 is a redundant -48 VDC power supply module for the 19-slot ION chassis. It supports the ION Platform, an intelligent, high-density, multi-protocol system for network interface devices. The ION chassis can support up to two power supply modules mounted in the rear of the chassis. A single power supply can power all installed devices; adding a second power supply supports redundant operation. Configuration options include an instant fail-over mode and a load-sharing mode. A PWR status LED indicates when the module is providing power to the ION chassis.
Ideal For
- Adding redundant power to a 19-slot ION chassis
- Powering installed devices in an ION chassis with a single power supply module
- Carrier class network applications using the ION Platform
- Enterprise network applications with multiple points of fiber integration
Specifications
| MTBF | 110,000 Bellcore hours |
| Weight | 2 lbs. [0.98 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Dimensions | 8.3” [211 mm] x 9” [229 mm] x 3.4” [86 mm] |
| Status LED | PWR(Power): Indicates the power supply module is providing power to the ION chassis |
| Application | Up to 2 power supply modules can be used in the 19-slot ION chassis, ION219-D |
| Power Input | 48 VDC (40-60 VDC) @ 5A |
| Certification | UL Listed (UL60950); FCC Class A; CISPR Class A; CE Mark |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
Which ION chassis does the IONPS-D-R1 support?▾
It is for the 19-slot ION chassis, ION219-D.
How many power supply modules can the chassis use?▾
Up to 2 power supply modules can be used in the 19-slot ION chassis.
What power input does this module require?▾
Power input is 48 VDC (40-60 VDC) @ 5A.
Does this module support redundant power configurations?▾
Yes. The ION chassis can be made redundant with a second power supply, with configuration options including instant fail-over mode and load-sharing mode.
