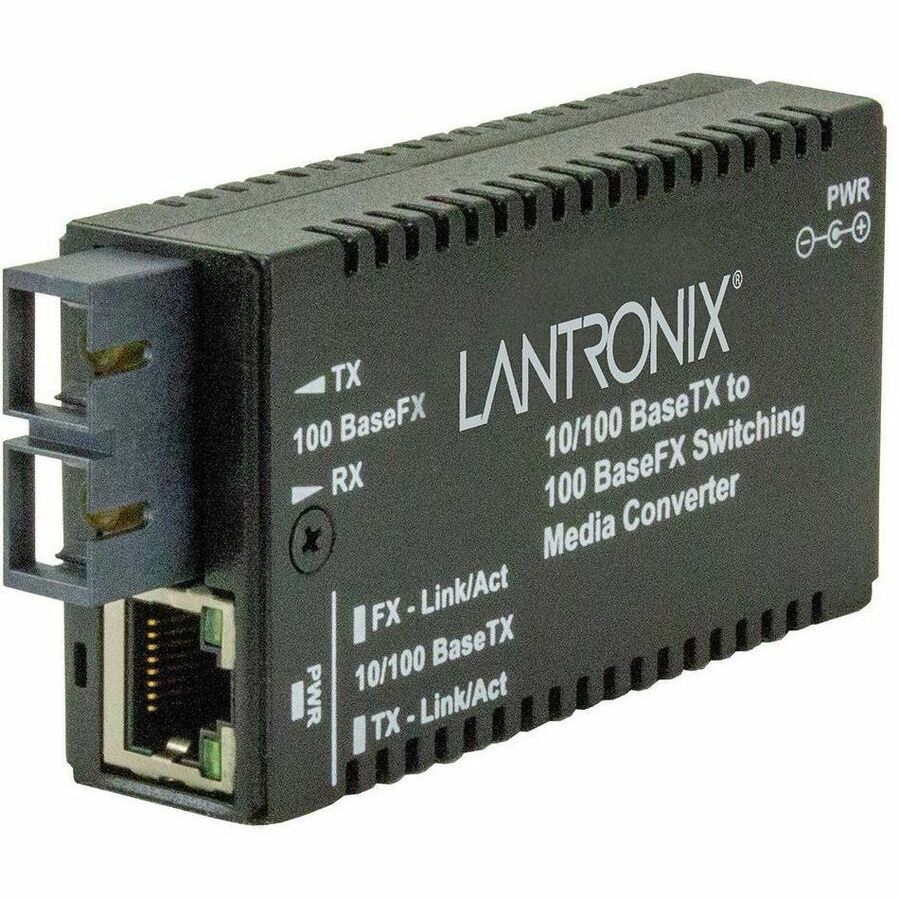

Lantronix M/E-PSW-FX-02-NA — ST Multimode Media Converter (North America)
$98.44$146.00
Ships from and sold by A5 IT
&mpn=M%2FE-PSW-FX-02-NA&price=9844&image=https%3A%2F%2Fcontent.etilize.com%2FMain%2F1021776003.jpg&vendor=Lantronix){kind=link}
Free 2-3 Day ShippingArrives by Wednesday, Oct 21
Order within 12h 6m to get it by Wednesday, Oct 21
New, with full manufacturer warranty
Key Features
- 10/100Base-TX RJ-45 to 100Base-FX media conversion
- 100Base-FX 1300nm multimode ST fiber interface
- 2 km/1.2 mi fiber reach
- Auto-Negotiation and Auto-MDI/MDIX support
- Fixed Full-Duplex on fiber
- Automatic Link Restoration and Far-End-Fault (FEF)
- Unit and Port LEDs for quick status information
- Extend Fast Ethernet links using 10/100Base-TX to 100Base-FX conversion

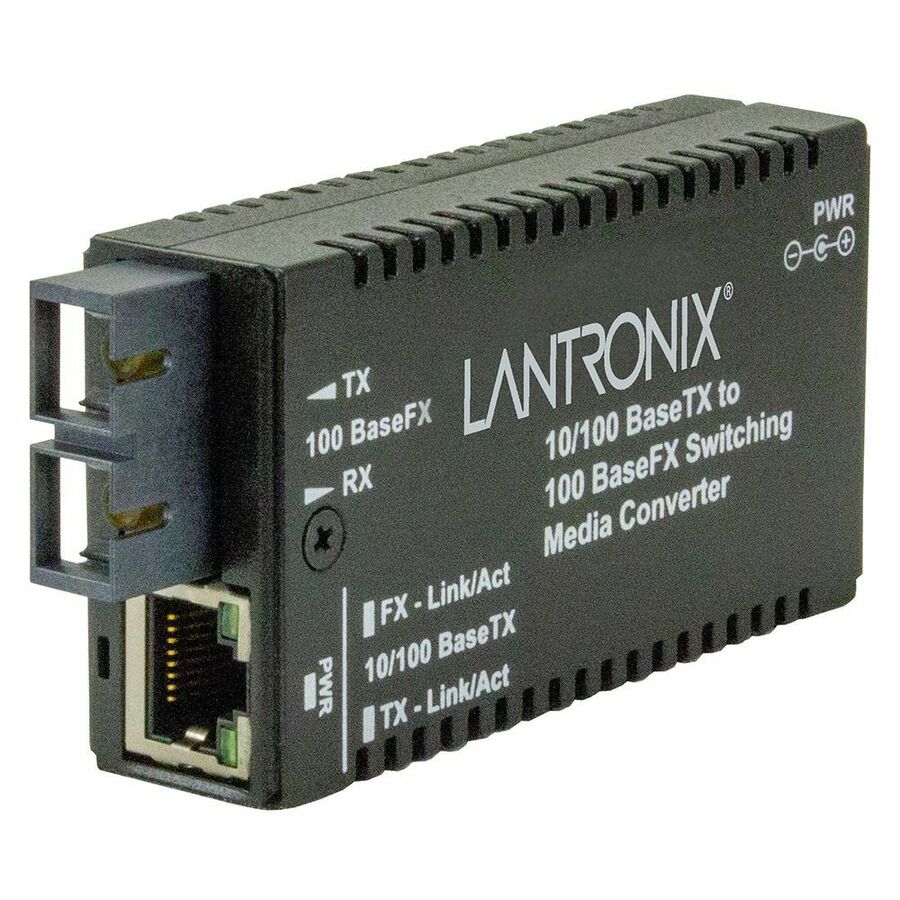

The Lantronix M/E-PSW-FX-02-NA is a Mini Fast Ethernet Media Converter for 10/100Base-TX to 100Base-FX connections. It connects RJ-45 copper Ethernet to 1300nm multimode fiber with an ST interface and a 2 km/1.2 mi fiber reach. The M/E-PSW Series supports Auto-Negotiation, Auto-MDI/MDIX, Fixed Full-Duplex on fiber, Automatic Link Restoration, and Far-End-Fault (FEF). Unit and Port LEDs provide quick status information. This model is built for teams that need to connect legacy network equipment or eliminate collision domains while integrating fiber optic cabling into a 10/100 UTP environment.
Ideal For
- Connecting legacy network equipment to Fast Ethernet fiber
- Integrating fiber optic cabling into a 10/100 UTP environment
- Extending 10/100Base-TX links over 100Base-FX multimode fiber
- Separating collision domains while linking half-duplex hubs over fiber
Specifications
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Standards | IEEE 802.3 |
| Dimensions | 1.8” [46 mm] x 3.3” [85 mm] x 0.85” [22 mm] |
| Form Factor | Wall Mountable |
| Link Budget | 11.0 dB |
| Power Input | 7.5 VDC to 13.9 VDC |
| Power Supply | External AC/DC required; +12VDC, 0.5A min |
| MTBF Bellcore | 114,580 hours |
| Fiber Distance | 2 km/1.2 mi. |
| Max Frame Size | 1632 bytes |
| Copper Distance | 100 m/328 ft |
| Fiber Interface | 100Base-FX 1300nm multimode (ST) |
| Copper Interface | 10/100Base-TX (RJ-45) |
| MTBF Mil-hdbk-21f | 41,660 hours |
| Power Consumption | 2.6 Watts |
| EMC Certifications | FCC Class A, CISPR22/EN55022 Class A, EN55024, CE Mark |
| Network Technology | 10/100Base-TX to 100Base-FX |
| Storage Temperature | -15°C to 65°C |
| Operating Temperature | 0°C to 50°C |
| Safety Certifications | Wall Mount Power Supply: UL Listed, cUL Listed (Canada) |
Frequently Asked Questions
What network media does this converter connect?▾
It converts 10/100Base-TX (RJ-45) to 100Base-FX 1300nm multimode fiber with an ST interface.
What distances does it support?▾
The fiber side supports 2 km/1.2 mi. The copper 10/100Base-TX side is listed at 100 m/328 ft.
Does it support Auto-Negotiation and Auto-MDI/MDIX?▾
Yes. The M/E-PSW Series lists Auto-Negotiation and Auto-MDI/MDIX as features.
What power input does it require?▾
It requires an external AC/DC power supply; +12VDC, 0.5A minimum. Power input is 7.5 VDC to 13.9 VDC.
