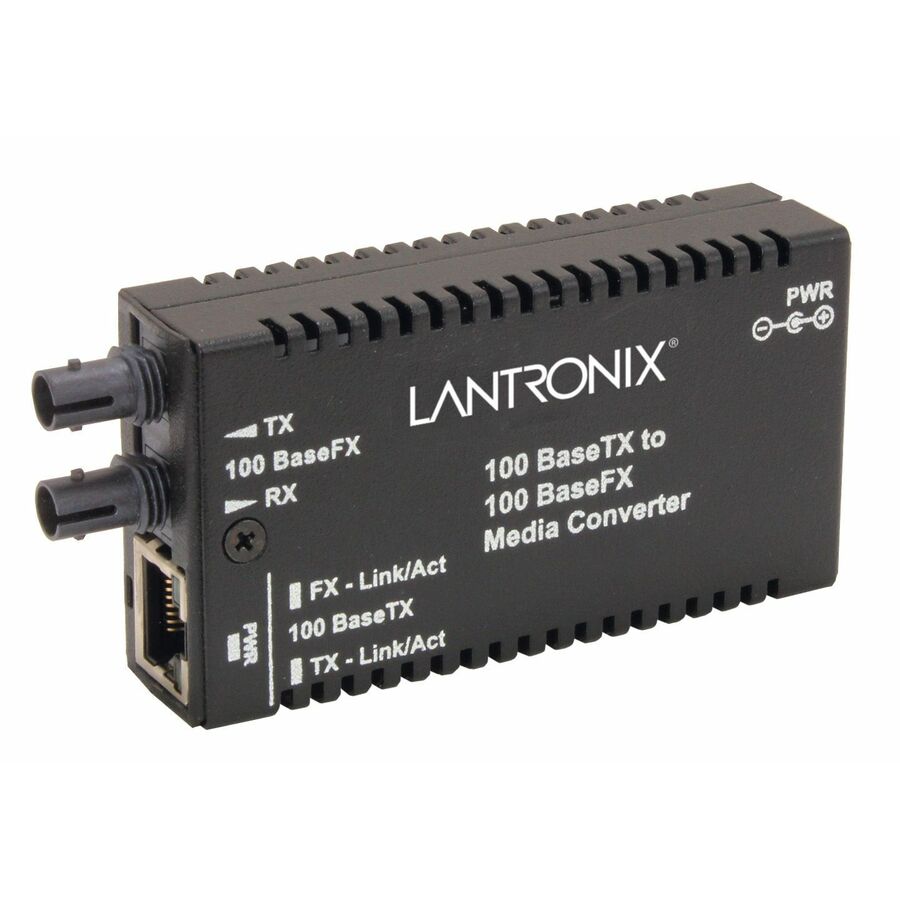

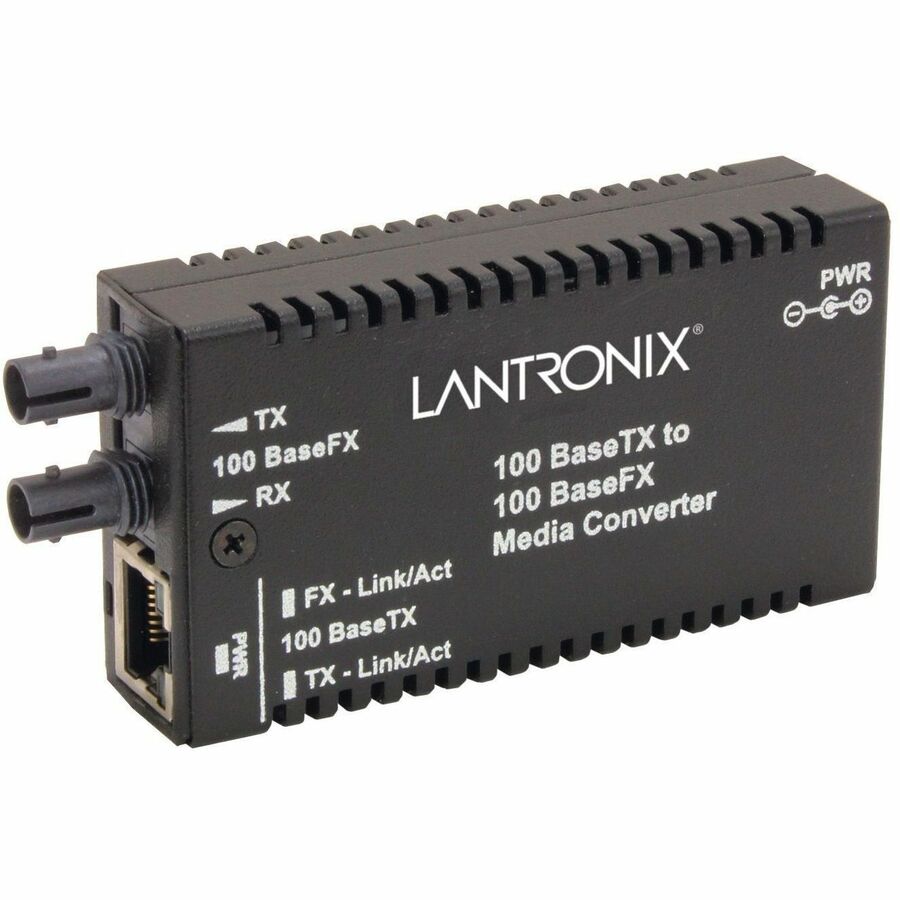

Lantronix M/E-TX-FX-01-NA — M/E-TX Series ST Multimode Mini Media Converter
$95.98$139.00
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Tuesday, Oct 13
Order within 4h 56m to get it by Tuesday, Oct 13
New, with full manufacturer warranty
Key Features
- 100Base-TX to 100Base-FX conversion for copper-rich Fast Ethernet environments
- 1 RJ-45 network port and 1 ST fiber port for fixed copper-to-fiber media conversion
- 1300nm multimode fiber interface with 2km/1.2mi. listed fiber distance
- 100 Mbps data rate for Fast Ethernet links
- Low-Latency Layer 1 Design retransmits Fast Ethernet signals without store-and-forward packet inspection delays
- Unit and port LEDs provide quick status information
- Auto-Negotiation and Auto-MDI/MDIX for copper-side connectivity
- Convert 100Base-TX copper to 100Base-X fiber for legacy edge links
The Lantronix M/E-TX Series is a Mini Fast Ethernet media converter for 100Base-TX to 100Base-FX conversion. This M/E-TX-FX-01-NA configuration connects 100Base-TX (RJ-45) [100m/328 ft.] to 100Base-FX 1300nm multimode (ST)[2km/1.2mi.]. It is designed for fiber integration in copper-rich Fast Ethernet environments and may be used in pairs or as a single unit. Fiber supports Fast Ethernet transmission over much longer distances than twisted pair. A Low-Latency Layer 1 Design retransmits Fast Ethernet signals without store-and-forward packet inspection delays found in other Layer 2 devices. Unit and port LEDs provide power, fiber link/activity, and copper link/activity status.
Ideal For
- Adding fiber optic cabling to copper-rich Fast Ethernet environments
- Extending Fast Ethernet links beyond twisted-pair distance limits
- Converting 100Base-TX RJ-45 endpoints to 100Base-FX multimode ST fiber
- Deploying media conversion where available space is limited
Specifications
| MTBF | 41,680 hours (MIL-HDBK-217F); 114,580 hours (Bellcore7 V5.0) |
| Depth | 3.3” [85 mm] |
| Width | 1.8” [46 mm] |
| Height | 0.85 [22 mm] |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Standard | IEEE 802.3u |
| Warranty | Lifetime |
| Data Rate | 100 Mbps |
| Link Budget | 11.0db |
| Power Input | 7.5VDC to 13.9VDC |
| Power Supply | External AC/DC required; +12VDC, 0.5A |
| Certification | Wall Mount Power Supply, UL Listed, cUL Listed (Canada) |
| Fiber Interface | 100Base-FX 1300nm multimode (ST)[2km/1.2mi.] |
| Copper Interface | 100Base-TX (RJ-45) [100m/328 ft.] |
| Power Consumption | 2.6 Watts |
| Ethernet Technology | Fast Ethernet |
| Storage Temperature | -15°C to 65°C |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
What media does M/E-TX-FX-01-NA convert?▾
It converts 100Base-TX (RJ-45) copper Ethernet to 100Base-FX 1300nm multimode fiber with an ST connector.
What link distances are listed for this SKU?▾
The Lantronix part table lists 100m/328 ft. on the 100Base-TX RJ-45 side and 2km/1.2mi. on the 100Base-FX multimode ST fiber side.
Does this model use an SFP slot?▾
No. The Lantronix part table identifies this SKU as the 100Base-FX 1300nm multimode ST model. The SFP-slot sibling is M/E-TX-FX-01(SFP).
What status LEDs are provided?▾
It provides PWR, FX-Link/Act, and TX-Link/Act status LEDs for power, fiber link/activity, and copper link/activity.
