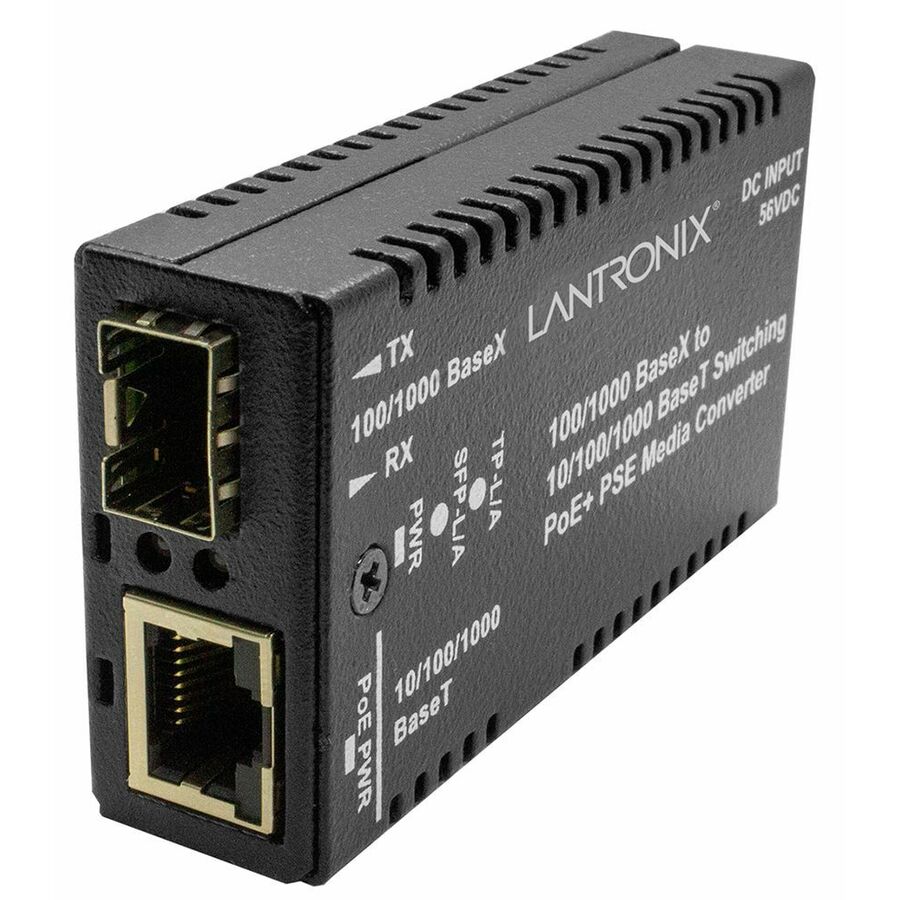

Lantronix M/GE-PSW-PSE-01-NA — Mini Gigabit PoE+ Media Converter
$251.79$374.00
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Thursday, Oct 15
New, with full manufacturer warranty
Key Features
- 2-port 10/100/1000 copper to fiber media conversion with IEEE 802.3at PoE+ on the copper port
- 30 Watts of power supported to the twisted pair port
- 100/1000Base-X SFP slot support for 100Base-FX or 1000Base-X fiber SFP modules
- Active Link Pass Through automatically detects loss of Receive signals on either fiber or copper port and propagates the failure
- Auto Power Reset re-sets power to the end PD device during a Link Pass Through event
- Plug-and-Play fixed configuration with no dip-switches
- LED indicators for power status, Link/Activity per port, and PoE status/classification
- Convert 1 Gigabit copper links to fiber using SFP-based connectivity
Lantronix M/GE-PSW-PSE-01-NA provides Mini Fast / Gigabit Ethernet PoE+ media conversion between a 10/100/1000Base-T PoE+ RJ-45 port and a 100/1000Base-X SFP slot.
Ideal For
- 10/100/1000Base-T copper to 100/1000Base-X SFP fiber conversion
- Supplying IEEE 802.3at PoE+ power to a twisted pair port at the media conversion point
- Installations that need Active Link Pass Through to propagate fiber or copper receive-signal loss
- Wall mount, DIN Rail, or table top media converter deployments
Specifications
| MTBF | M/GE-PSW-PSE-01 only: 2,941,024 hours (Telcordia SR-332) |
| Depth | 3.3” [85 mm] |
| Width | 1.8” [46 mm] |
| Height | 0.85″ [22 mm] |
| Weight | 2 lbs. [0.9 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Mounting | Wall mount, DIN Rail, or table top installation |
| Warranty | Lifetime |
| Fiber Slot | 100/1000Base-X SFP slot (empty) |
| Port Count | 2 ports |
| Copper Port | 10/100/1000Base-T PoE+ RJ-45 |
| PoE++ Standard | IEEE 802.3af/at PSE-PoE |
| Power Source | External AC/DC 56VDC, 40W power adapter |
| Buffer Memory | 1Mbit shared buffer memory |
| Certifications | EN55032-2012 Class A, IEC 61850-3:2002, EN55024-2010, CE Mark, Power Supply is UL listed |
| Max PoE++ Budget | 30 Watts |
| Max Packet Size | 10,000 bytes |
| Media Conversion | 10/100/1000Base-T PoE+ RJ-45 port [100 m/ 328 ft.] to 100/1000Base-X SFP slot (empty) |
| Max Mac Addresses | 8k |
| Power Consumption | 34W with full IEEE 802.3at 30 Watt load |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -40°C to +85°C |
| Operating Temperature | 0°C to +40°C (with included power supply) |
Frequently Asked Questions
Does this media converter include a power supply?▾
Yes. The M/GE-PSW-PSE-01 includes an external AC/DC power supply with a country specific power cord.
Is an SFP module included?▾
No. The product table lists the fiber interface as a 100/1000Base-X SFP slot (empty).
How much PoE power can the copper port provide?▾
It supports a max PoE budget of 30 Watts and IEEE 802.3af/at PSE-PoE.
How can the M/GE-PSW-PSE-01 be mounted?▾
Lantronix lists wall mount, DIN Rail, or table top installation for this model.
