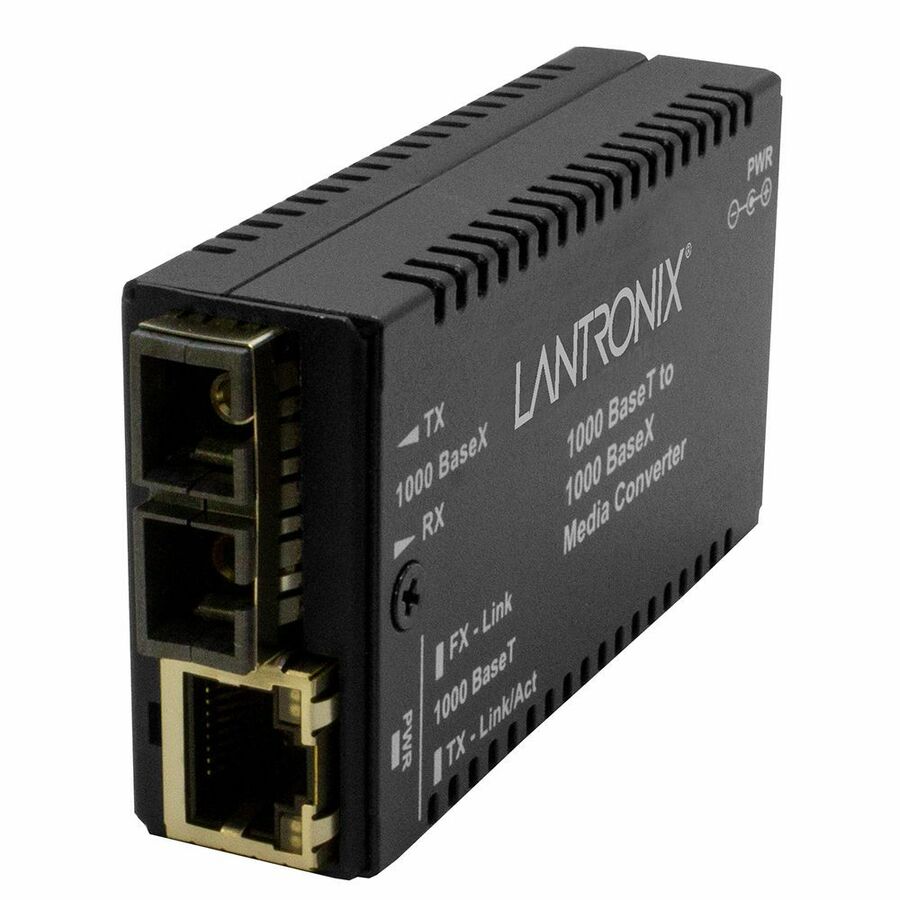

Lantronix M/GE-T-LX-01-NA — Mini Gigabit Media Converter
$288.38$429.00
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Wednesday, Oct 14
New, with full manufacturer warranty
Key Features
- 1000Base-T to 1000Base-LX conversion for Gigabit Ethernet media conversion
- 1 Network (RJ-45) port and 1 SC port for copper-to-fiber handoff
- Single-mode fiber support with 10 km maximum distance
- Auto-Negotiation and Auto-MDI/MDIX for copper-side connection handling
- Automatic Link Restoration and Fiber Link Pass Through for link behavior management
- Status LEDs for PWR, FX-Link/Act, and TX-Link/Act monitoring
- Mini form factor 65% smaller than standard media converter
- Convert 1000Base-T copper links to 1000Base-SX fiber using a compact mini form factor
The Lantronix M/GE-T-LX-01-NA is an M/GE-T Series Mini Gigabit Ethernet Media Converter for converting between 1000Base-T copper and 1000Base-LX single-mode fiber. It provides 1000 Mbps data rate support with one Network (RJ-45) port and one SC port. The unit supports Auto-Negotiation, Auto-MDI/MDIX, Automatic Link Restoration, Fiber Link Pass Through, and status LEDs for power, fiber link/activity, and copper link/activity. It is interoperable with other 1000Base-T/SX/LX NICs or switch ports. Its mini media converter form factor is listed as 65% smaller than a standard media converter. Mounting options include standalone, wall mountable, DIN rail mountable, and rack-mountable installation.
Ideal For
- Convert a copper 1000Base-T switch or NIC port to single-mode fiber
- Extend a Gigabit Ethernet link up to 10 km over single-mode fiber
- Add a compact media conversion point where standalone, wall, DIN rail, or rack mounting is required
- Monitor copper and fiber link status with front-panel status LEDs
Specifications
| Series | M/GE-T Series |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Mounting | Wall Mountable; DIN Rail Mountable; Rack-mountable |
| Warranty | Lifetime |
| Data Rate | 1000 Mbps |
| Standards | IEEE 802.3z; IEEE 802.3ab |
| Unit MTBF | Greater than 250,000 Hours (MIL-HDBK-217F) Greater than 687,500 Hours (Bellcore) |
| Dimensions | 1.8” x 3.3” x 0.85″ [46 mm x 85 mm x 22 mm] |
| Form Factor | Mini media converter; Standalone |
| Power Input | 7.5VDC to 13.9VDC |
| Power Supply | External AC/DC required; +12VDC, 0.5A |
| Certifications | UL Listed, cUL Listed (Canada), FCC Class A, CISPR22 / EN55022 Class A, EN55024, CE Mark |
| Fiber Standard | 1000Base-LX |
| TAA Compliance | TAA Compliant |
| Copper Standard | 1000Base-T |
| Fiber Interface | 1 x SC Ports |
| Copper Interface | 1 x Network (RJ-45) |
| Power Consumption | 2.6 Watts |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -15°C to 65°C |
| Fiber Mode Supported | Single-mode |
| Operating Temperature | 0°C to 50°C |
| MTBF With Power Supply | Greater than 41,660 Hours (MIL-HDBK-217F) Greater than 114,580 Hours (Bellcore) |
| Environmental Compliance | WEEE; RoHS; REACH |
| Maximum Distance Supported | 10 km |
Frequently Asked Questions
Does this media converter support single-mode fiber?▾
Yes. The M/GE-T-LX-01-NA supports single-mode fiber, uses an SC fiber port, and supports a maximum distance of 10 km.
Which Ethernet standards does it support?▾
It supports IEEE 802.3z and IEEE 802.3ab, with a data rate of 1000 Mbps.
How can this mini media converter be mounted?▾
The unit is listed as standalone, wall mountable, DIN rail mountable, and rack-mountable.
What power input does it require?▾
It requires an external AC/DC power supply, +12VDC, 0.5A, and supports a power input range of 7.5VDC to 13.9VDC.
