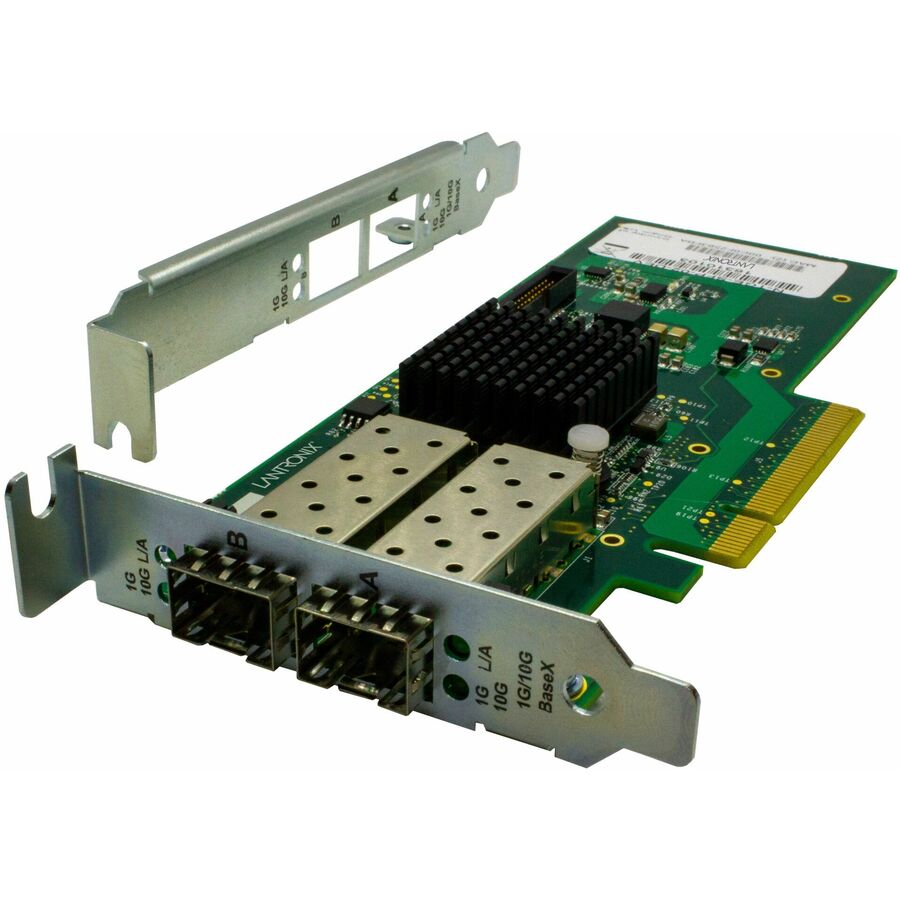

Lantronix N-TGE-SFP-02 PCIe fiber network interface card with two SFP+ slots

Lantronix N-TGE-SFP-02 — PCIe 10 Gigabit Ethernet Fiber NIC

Name: Lantronix N-TGE-SFP-02 — PCIe 10 Gigabit Ethernet Fiber NIC
Brand: Lantronix
SKU: N-TGE-SFP-02
Price: 577.70 USD
Availability: BackOrder

Lantronix|

MPN: N-TGE-SFP-02

UPC: 648177043958

Available on Backorder

$577.70

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales

Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.

New, with full manufacturer warranty

Key Features

(2) 1000Base-X/10GBase-SR/LR SFP+ slots (empty) for fiber SFP and SFP+ modules
10Gbps network speed for high-bandwidth Ethernet connectivity
PCIe 3.0 x8 interface for host system installation
IEEE 802.3ad Link Aggregation (LACP) support
IEEE 802.1Q VLAN support and IEEE 802.1p QoS
Jumbo Frames support with 9014 and 4088 byte options in Windows>Advanced Properties tab
Standard bracket attached, low-profile bracket included

Lantronix N-TGE-SFP-02 is a PCIe 10 Gigabit Ethernet fiber network interface card for 1000Base-X and 10GBase-SR/LR SFP+ connectivity. It provides (2) SFP+ slots, and the slots are empty. The NIC supports 10Gbps network speed, 1Gbps SFPs with DMI, IPv4 and IPv6, and IEEE 802.3x Full-Duplex flow control. It is compliant with a PCIe 3.0 x8 interface. Network features include IEEE 802.3ad Link Aggregation (LACP), IEEE 802.1Q VLAN support, IEEE 802.1p QoS, checksum offload, SR-IOV, RSS/TSS, MSI/MSI-X, and PXE remote, remote boot support.

Ideal For

Adding PCIe 10 Gigabit Ethernet fiber connectivity to systems with a PCIe 3.0 x8 bus slot
Using 1000Base-X SFPs or 10GBase-SR/LR SFP+ modules in empty SFP+ slots
Supporting IEEE 802.3ad Link Aggregation (LACP) configurations
Supporting IEEE 802.1Q VLAN and IEEE 802.1p QoS configurations

Specifications

MTBF	4,636,228 hours
Weight	0.55 lbs. [0.25 kg]
Altitude	0 – 10,000 ft
Bus Slot	PCIe 3.0 x8
Humidity	5% to 95% (non-condensing)
Warranty	Lifetime
Speed LED	On = 10G, Off = 1G
Standards	IEEE 802.3-2008; IEEE 802.3ae; IEEE 802.3z; IEEE 802.3x; IEEE 802.3ad; IEEE 802.1Q; IEEE 802.1p
Dimensions	2.525” [64.135 mm] x 6.173” [156.79 mm] x 0.75” [19.05 mm]
SFP+ Slots	(2) 1000Base-X/10GBase-SR/LR SFP+ slots (empty)
Link Act LED	On = communication link, Flashing = activity on link, Off = link fail
Certifications	EN 55032-2012/AC:2013 FCC 47 CFR Part 15 Subpart B ISED ICES-003 Issue 6:2016, Updated April 2019 Class B; EN 55024:2010/A1:2015; EN 61000-3-2:2014 (<16A); EN 61000-3-3:2013 (16A); CE Mark
Multimode Fiber	0/125,62.5/125μm
1 Gbps Data Rate	1,190,476 pps
Software Support	Windows 10 Professional; Windows 8 Professional; Windows 7 Professional; Windows Server 2008 R2; Windows Server 2019; Windows Server 2016; Windows Server 2012 and 2012 R2; Linux Support; *Requires Intel Network Connections Software v25.0 or earlier)
10 Gbps Data Rate	14,880,000 pps
Power Consumption	2.5 Watts without SFPs
Single Mode Fiber	9/125μm
Storage Temperature	-15°C to 65°C
Operating Temperature	0°C to +50°C

Documentation

Additional pdf1

Additional pdf2

Product Brief

N-TGE-SFP-02 User Guide Rev B

Frequently Asked Questions

Are SFP or SFP+ modules included?▾

No. The N-TGE-SFP-02 has (2) 1000Base-X/10GBase-SR/LR SFP+ slots, and the part row specifies that the slots are empty.

What host bus slot does this NIC use?▾

It is compliant with a PCIe 3.0 x8 interface.

Which operating systems are supported?▾

Software support includes Windows 10 Professional, Windows 8 Professional, Windows 7 Professional, Windows Server 2008 R2, Windows Server 2019, Windows Server 2016, Windows Server 2012 and 2012 R2, and Linux Support. Windows 7 Professional and Windows Server 2008 R2 require Intel Network Connections Software v25.0 or earlier.

Does it include a low-profile bracket?▾

The standard bracket is attached, and a low-profile bracket is included.
