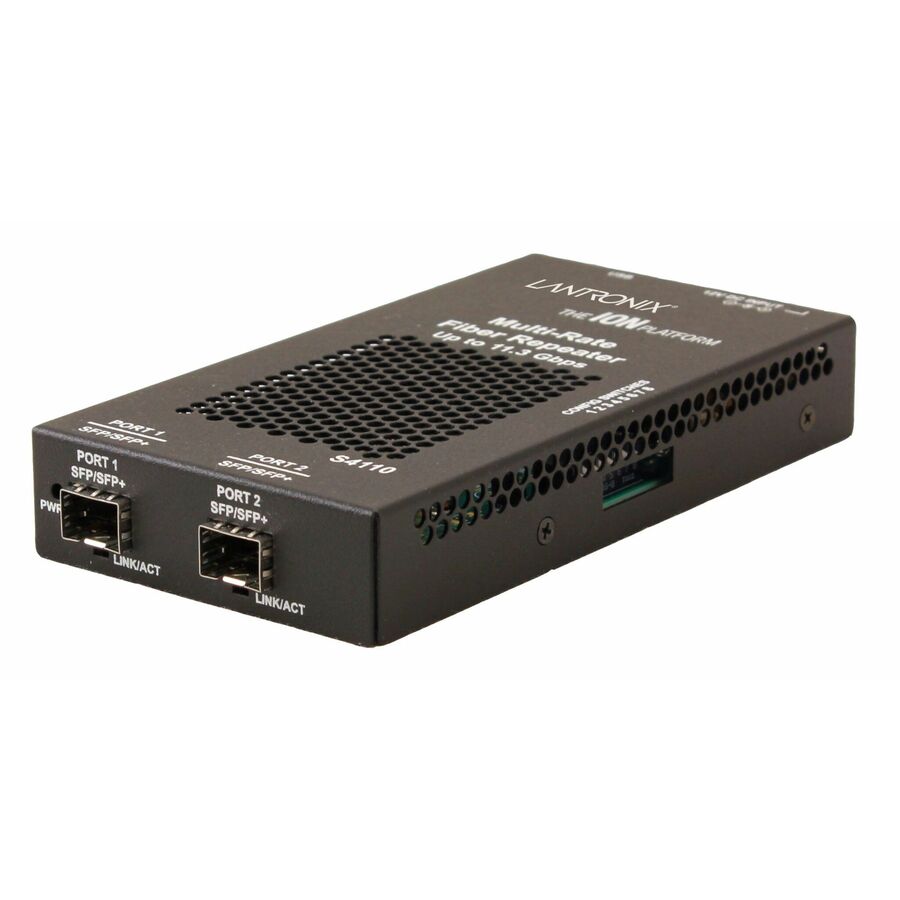

Lantronix S4110-4848-NA — SFP+ to Fiber Media Converter
$961.43$1,431.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1 Gbps to 11.5 Gbps protocol-independent data rates
- 2 open SFP+ slots for SFP to SFP or SFP+ to SFP+ operation
- Any-rate to same-rate conversion
- 3R signal regeneration with Reamplify, Reshape, and Retime
- Single mode to multimode conversion for fiber mode conversion
- CWDM wavelength conversion as a specific wavelength CWDM Transponder
- No frame size limitations
- Maintain optical link continuity using fiber-to-fiber repeater architecture
Lantronix S4110-4848-NA is a stand-alone fiber to fiber media converter for data rates from 1 Gbps to 11.5 Gbps. It is protocol independent and uses two open SFP+ slots for SFP to SFP or SFP+ to SFP+ configurations. Use it for any-rate to same-rate conversion, single mode to multimode conversion, or wavelength conversion in CWDM applications. Supported transmission distance is based on the SFP modules and fiber type used. The S4110-4848 supports 3R (Reamplify, Reshape, and Retime) signal regeneration and has no frame size limitations. It supports Ethernet 10Gig LAN, 10Gig WAN, and 1Gig LAN; Fiber Channel 10, 8, 4, 2, and 1Gig; and SONET/SDN OC-192 and OC-48.
Ideal For
- Fiber mode conversion between single mode and multimode fiber
- Specific wavelength CWDM Transponder applications
- Protocol-independent fiber transport for Ethernet, Fiber Channel, and SONET/SDN
- Stand-alone fiber-to-fiber repeater deployment with SFP+ modules selected for the fiber type used
Specifications
| Depth | 6.5” [165 mm] |
| Width | 3.25” [82 mm] |
| Height | 1″ [25 mm] |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Standard | IEEE 802.3ae; ITU.G.709; SFF8431; Multi-sourcing Agreement (MSA); Small Form Factor Pluggable (SFP) |
| Warranty | Lifetime |
| Data Rate | Protocol Independent, 1 Gbps to 11.5 Gbps |
| Port Count | 2 ports |
| Form Factor | Standalone |
| Power Supply | External AC/DC power supply, Universal AC 120-240VAC input, 12VDC 1.5A output |
| Certifications | FCC Class A, CE Mark, EN55022 Class A, EN55024 |
| Connector Type | SFP+ |
| Converter Type | Fiber to fiber repeater |
| Expansion Slots | 2 x SFP+ Slots |
| Power Consumption | 4.2W (350mA @12V) |
| Network Technology | Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Storage Temperature | -40° to 85°C |
| Fiber Mode Supported | Multi-mode / Single-mode |
| Operating Temperature | 0°C to 50°C |
| MTBF With Power Supply Bellcore | Greater than 114,580 hours |
| MTBF Without Power Supply Bellcore | Greater than 687,000 hours |
| MTBF With Power Supply Mil-hdbk-217f | Greater than 41,660 hours |
| MTBF Without Power Supply Mil-hdbk-217f | Greater than 250,000 hours |
Frequently Asked Questions
What data rates does the S4110-4848-NA support?▾
It supports protocol-independent data rates from 1 Gbps to 11.5 Gbps.
What SFP configuration does this media converter use?▾
It uses two open SFP+ slots and supports SFP to SFP or SFP+ to SFP+ operation.
Can it convert between different fiber types?▾
Yes. The S4110-4848 can be used for single mode to multimode conversion, as a fiber mode converter, or as a specific wavelength CWDM Transponder.
What is the operating temperature range?▾
It operates from 0°C to 50°C.
