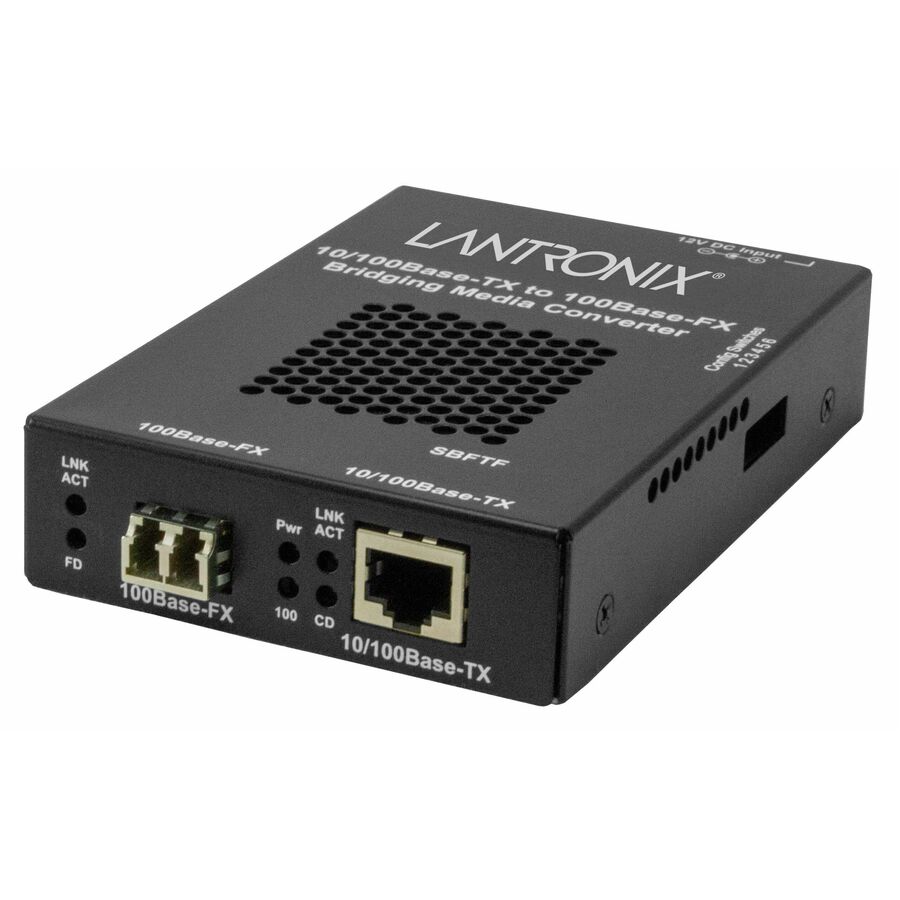

Lantronix SBFTF1039-105-BR — Sbftf Series Multimode LC Media Converter
$336.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10/100Base-TX to 100Base-FX conversion for Fast Ethernet media and rate conversion
- 1 RJ-45 network port and 1 LC fiber port for two-port copper-to-fiber connectivity
- 2 km maximum distance over multimode fiber
- 10 Mbps or 100 Mbps operation on the TP port
- Auto-Negotiation and Auto-MDI/MDIX support
- Link Pass Through, Far-End-Fault (FEF) Detection, and Automatic Link Restoration
- External AC/DC power supply with 12 VDC, 0.8A min output
- Convert 10/100Base-TX copper to 100Base-FX multimode fiber
The Lantronix SBFTF Series provides a stand-alone Fast Ethernet media and rate converter for 10/100Base-TX to 100Base-FX links. This SBFTF1039-105-BR configuration supports multimode fiber with an LC port and a 2 km maximum distance. The converter includes 1 x Network (RJ-45) port and 1 x LC port. It supports 10 Mbps or 100 Mbps on the TP port, half- or full-duplex operation, Auto-Negotiation, Auto-MDI/MDIX, Link Pass Through, Far-End-Fault (FEF) Detection, and Automatic Link Restoration. This SKU is supplied with the BR power supply configuration. Listed mounting options include wall mountable, DIN rail mountable, rack-mountable, standalone, and shelf mount.
Ideal For
- Converting a 10/100Base-TX copper Ethernet link to 100Base-FX fiber
- Extending a Fast Ethernet link over multimode fiber up to 2 km
- Deploying a stand-alone media converter with wall, DIN rail, rack, or shelf mounting
- Supporting half- or full-duplex Fast Ethernet environments
Specifications
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 90% (non-condensing) |
| Mounting | Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount |
| Warranty | Lifetime |
| Data Rate | 10 Mbps; 100 Mbps, Layer 2 |
| Standards | IEEE 802.3 |
| Dimensions | 3.25” [82.55 mm] x 4.8” [121.92 mm] x 1″ [25 mm] |
| Fiber Port | 1 x LC Ports |
| Port Count | 2 ports |
| Ram Buffer | 512 KB |
| Network Port | 1 x Network (RJ-45) |
| Power Supply | External AC/DC; 12 VDC, 0.8A min |
| Product Type | Media Converter |
| Connector Type | LC |
| TAA Compliance | TAA Compliant |
| Max Packet Size | 2044 bytes untagged; 2048 bytes tagged |
| Fiber Technology | 100Base-FX |
| MTBF Bellcore7 V50 | Greater than 114,580 hours |
| MTBF Mil-hdbd-217f | Greater than 41,660 hours |
| Network Technology | 10/100Base-TX |
| Ethernet Technology | Fast Ethernet |
| Filtering Addresses | 1K MAC addresses |
| Fiber Mode Supported | Multimode |
| Filtering Forwarding | 14,880 pps for Ethernet; Rate 148,800 pps for Fast Ethernet |
| Operating Temperature | 0°C to 50°C |
| Maximum Distance Supported | 2 km |
Frequently Asked Questions
What fiber type and connector does this media converter use?▾
It supports multimode fiber and uses an LC fiber port.
How far can this SKU extend the fiber link?▾
The maximum distance supported is 2 km.
What ports are included?▾
It provides 1 x Network (RJ-45) port and 1 x LC port.
What mounting options are supported?▾
The listed mounting options are wall mountable, DIN rail mountable, rack-mountable, standalone, and shelf mount.
