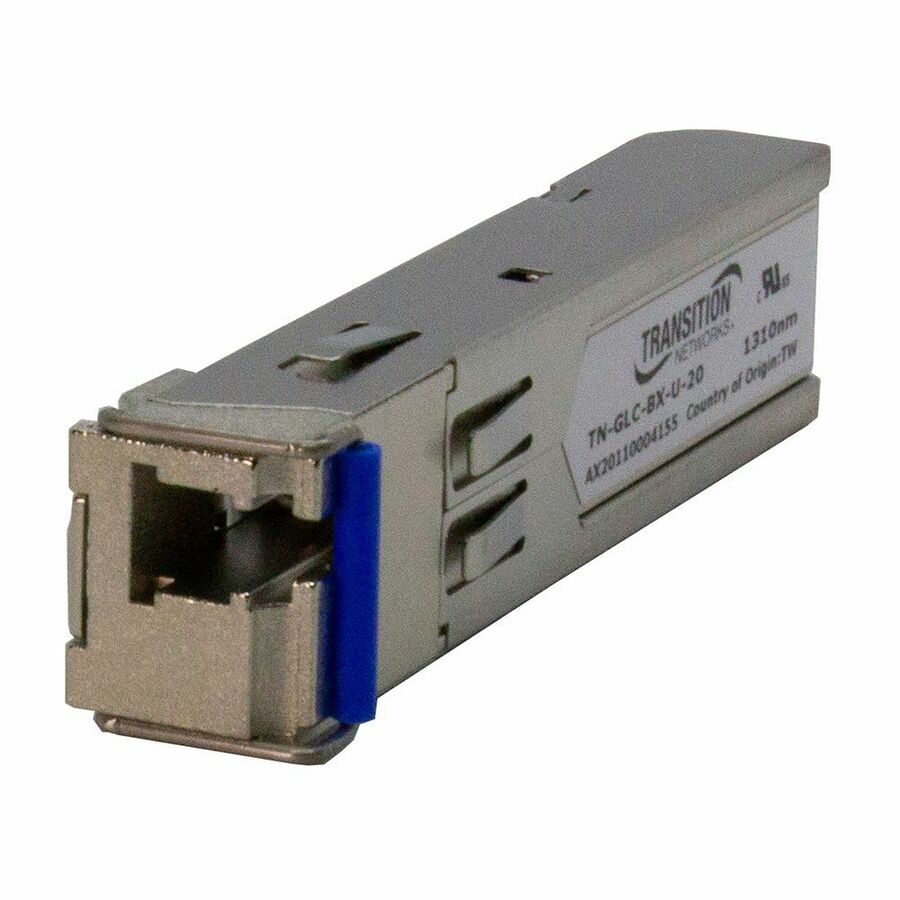

Lantronix TN-GLC-BX-U-20 — TN-GLC-BX Series 1000Base-BX SFP Transceiver
$307.40
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-BX optical networking over single fiber single mode (LC)
- 1310nm TX/1490nm RX wavelength plan
- 20 km/12.4 mi. maximum distance
- 11.0 dB link budget
- DMI support for the listed TN-GLC-BX-U-20 configuration
- 3.3V power input with 0.66 Watts power consumption
- UL Listed TN-GLC-BX-U-20 part row
TN-GLC-BX-U-20 is a Lantronix TN-GLC-BX Series Cisco Compatible Gigabit SFP Module for 1000Base-BX single fiber single mode (LC) optical networking with DMI. This SKU uses a 1310nm TX/1490nm RX wavelength plan and is listed for 20 km/12.4 mi. with an 11.0 dB link budget. The part row identifies it as UL Listed. Series specifications include IEEE 802.3, 3.3V power input, 0.66 Watts power consumption, 0°C to 70°C operating temperature and Lifetime warranty.
Ideal For
- 1000Base-BX optical network connections using single fiber single mode (LC)
- Gigabit Ethernet data networking over optical fiber
- Cisco Compatible SFP deployments requiring 1310nm TX/1490nm RX
- 20 km/12.4 mi. single-fiber links with an 11.0 dB link budget
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Warranty | Lifetime |
| Standards | IEEE 802.3 |
| UL Listed | UL Listed |
| Link Budget | 11.0 dB |
| Power Input | 3.3V |
| Product Type | SFP (mini-GBIC) |
| TAA Compliant | Yes |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| Product Series | TN-GLC-BX |
| Power Consumption | 0.66 Watts |
| Network Technology | 1000Base-BX |
| Receive Wavelength | 1490nm |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Transmit Wavelength | 1310nm |
| Fiber Mode Supported | Single-mode |
| Media Type Supported | Optical Fiber |
| Operating Temperature | 0°C to 70°C |
| Total Number Of Ports | 1 |
| Environmental Compliance | WEEE; RoHS; REACH |
| Interfaces Ports Details | 1 x LC 1000Base-BX Network |
| Maximum Distance Supported | 20 km |
Frequently Asked Questions
What wavelength plan does TN-GLC-BX-U-20 use?▾
TN-GLC-BX-U-20 uses 1000Base-BX 1310nm TX/1490nm RX single fiber single mode (LC) with DMI.
What distance and link budget are listed for this SKU?▾
The part row lists a 20 km/12.4 mi. distance and an 11.0 dB link budget.
Does this SFP include DMI?▾
Yes. The Lantronix part row states DMI, and the series overview identifies the product as Cisco Compatible.
What operating temperature range is specified?▾
The operating range is 0°C to 70°C. Storage is listed as -40°C to 85°C.
