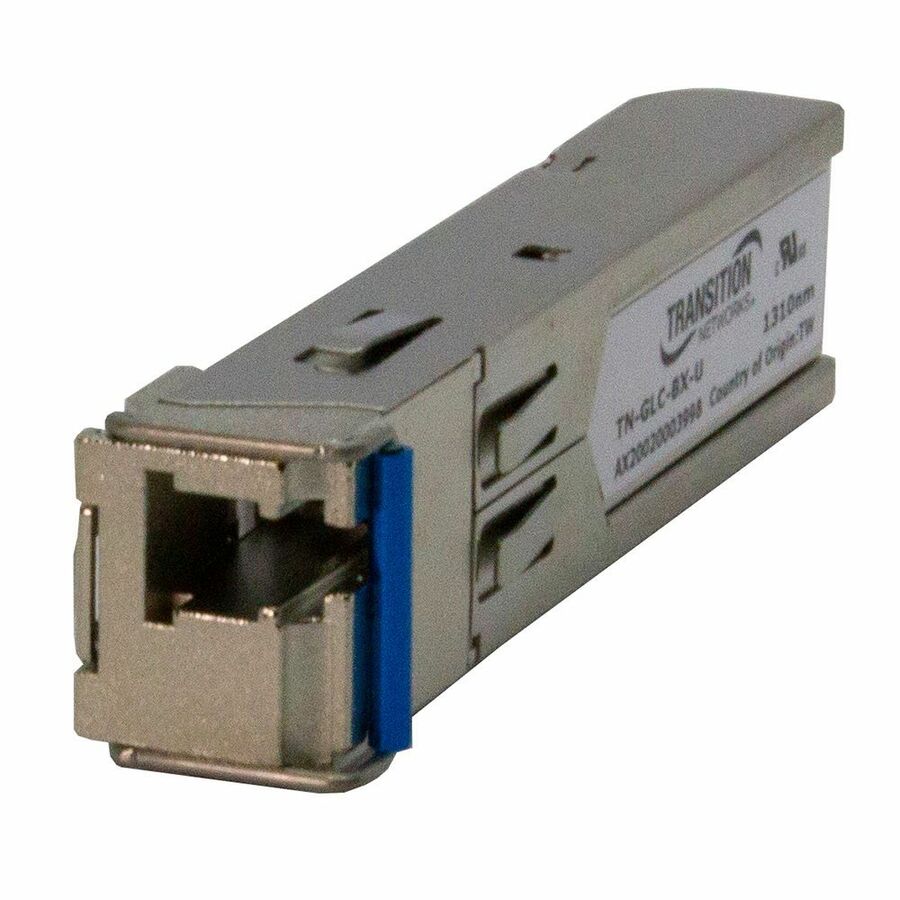

Lantronix TN-GLC-BX-U — TN-GLC-BX Series 1000Base-BX SFP 10 km
$103.22$153.70
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-BX Gigabit Ethernet over single fiber single mode (LC)
- 1310nm TX/1490nm RX wavelength pairing for TN-GLC-BX-U
- 10 km/6.2 mi. maximum distance with 10.0 dB link budget
- DMI included for this Cisco Compatible Gigabit SFP Module
- 3.3V power input with 0.66 Watts power consumption
- 0°C to 70°C operating temperature range
- UL Listed SKU with Lifetime warranty
Lantronix TN-GLC-BX-U is a Cisco Compatible Gigabit SFP Module in the TN-GLC-BX Series. It supports 1000Base-BX single fiber single mode (LC) connections with DMI. This U version uses 1310nm TX/1490nm RX and is listed for 10 km/6.2 mi. distance with a 10.0 dB link budget. The series specs list IEEE 802.3, 3.3V power input, 0.66 Watts power consumption, 0°C to 70°C operating temperature, and -40°C to 85°C storage temperature. The TN-GLC-BX-U part row lists UL Listed status, and the series carries a Lifetime warranty.
Ideal For
- Cisco Compatible 1000Base-BX Gigabit SFP links
- Single fiber single mode optical network connections
- 10 km/6.2 mi. data networking runs
- Deployments that require 1310nm TX/1490nm RX at one end of a 1000Base-BX link
Specifications
| Series | TN-GLC-BX Series |
| Warranty | Lifetime |
| Interface | 1 x LC 1000Base-BX Network |
| Standards | IEEE 802.3 |
| Dimensions | 0.52” [13 mm] x 2.18” [55 mm] x 0.33” [8 mm] |
| Fiber Mode | Single-mode |
| Media Type | Optical Fiber |
| Link Budget | 10.0 dB |
| Power Input | 3.3V |
| Wavelengths | 1310nm TX/1490nm RX |
| Product Type | SFP (mini-GBIC) |
| Certifications | UL Listed |
| Connector Type | LC |
| TAA Compliance | TAA Compliant |
| Maximum Distance | 10 km/6.2 mi. |
| Power Consumption | 0.66 Watts |
| Network Technology | 1000Base-BX |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 70°C |
Frequently Asked Questions
Is TN-GLC-BX-U the 1310nm transmit version?▾
TN-GLC-BX-U is the 1310nm TX/1490nm RX version.
What connector and fiber mode does it use?▾
It uses an LC interface with single fiber single mode optical fiber.
What distance and link budget are listed for this SKU?▾
The listed distance is 10 km/6.2 mi. with a 10.0 dB link budget.
What power input does it require?▾
The series specs list 3.3V power input and 0.66 Watts power consumption.
