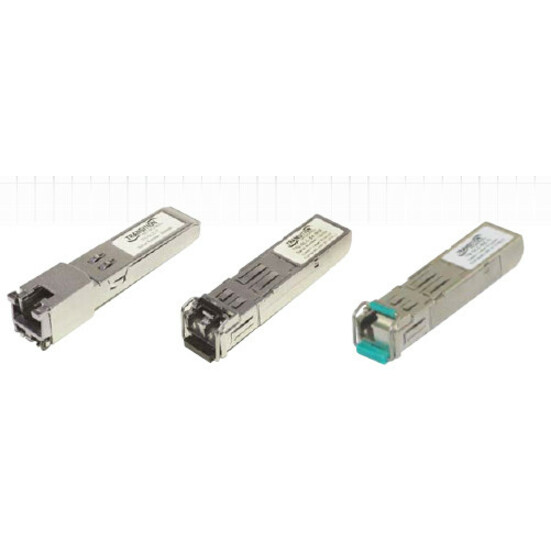

Lantronix TN-GLC-LH-SMD — 1000Base-LX SFP Transceiver, 10 km DMI Model
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
- Diagnostics
- With DMI
- Data rate
- 1 Gbps
- Maximum reach
- 10km/6.2 mi.
- Optical budget
- 10.5 dB
- Connector
- LC
- Operating range
- 0°C to 70°C
Who it's for
Is the TN-GLC-LH-SMD the right part?
This module fits engineers who need host-visible optical diagnostics on a standard-temperature Gigabit connection. It combines DMI with the family’s 10 km optical rating, letting the monitoring requirement and link specification appear under one individual ordering code. The duplex LC interface and 1310 nm wavelength suit single-mode designs, while UL listing, TAA compliance and environmental declarations support procurement review.
Ordering
Which SKU do I need?
| Part number | What’s different | Price |
|---|---|---|
| TN-GLC-LH-SMDThis page | 1000Base-LX SFP Transceiver, 10 km DMI Model | $39.22 |
| TN-GLC-LH-SM | Retains the 10 km optical rating and standard operating range but omits diagnostics. | $31.37 |
| TN-GLC-LH-SM-PK | Supplies twenty non-diagnostic 10 km modules instead of one DMI-equipped module. | $1,309.10 |
| TN-GLC-LH-SMD-PK | Packages twenty of this same DMI-equipped 10 km module. | $1,369.52 |
| TN-GLC-LHX-SM | Raises reach to 40 km and optical budget to 22.0 dB, but does not provide diagnostics. | $259.70 |
| TN-GLC-LX-SM-RGD | Keeps DMI and the 10 km optical rating while expanding operation to −40–85°C. | $58.82 |
| TN-GLC-LHX-SM-RGD | Adds 40 km reach, a 22.0 dB optical budget and −40–85°C operation while retaining DMI. | $275.60 |
Make Diagnostics Part of the Module Specification
TN-GLC-LH-SMD is the individual 10 km option equipped with DMI. That capability allows the host to monitor the optic, making this variant relevant when diagnostics are required in addition to the data connection.
The module delivers Gigabit Ethernet using 1000Base-LX. Its single network port has a duplex LC connection for single-mode fiber, with a wavelength of 1310 nm and an optical budget of 10.5 dB.
Separate Monitoring Needs From Temperature Needs
DMI does not make this an extended-temperature module. The specified operating interval is 0–70°C, and storage is permitted within −40–85°C. For a 10 km installation needing the broader operating interval, the LX-SM-RGD sibling combines DMI with −40–85°C operation.
This standard model draws 0.66 W using the host’s 3.3V supply. The SFP enclosure measures 13 mm in width, 55 mm in depth and 8 mm in height.
Document the Exact Compliance and Quantity Choice
The module is UL Listed and identified as TAA compliant. Its environmental declarations cover WEEE, RoHS and REACH, alongside the stated IEEE 802.3 and laser safety specifications. The limited warranty is lifetime.
Order this code for an individual module. For twenty of the same DMI-equipped optic, select the SMD-PK package. The Product Brief and document 33480 revision F provide the available technical references for review and support.
Choose this part if…
- Choose this part if the host needs DMI monitoring of a 10 km optic.
- Pick this SKU when you need an individual module instead of a twenty-module package.
- Choose this part if the link uses 1310 nm single-mode optics and duplex LC.
- Pick this SKU when 0–70°C operation covers the installation.
- Choose this part if the review requires UL listing, TAA compliance and WEEE, RoHS and REACH declarations.
Technical data
TN-GLC-LH-SMD specifications
Ethernet
| Network technology | 1000Base-LX |
|---|---|
| Ethernet technology | Gigabit Ethernet |
| Data rate | 1 Gbps |
| Host compatibility | Cisco compatible |
Optics
| Medium | Fiber |
|---|---|
| Fiber mode | Single-mode |
| Connector | LC |
| Connector form | Duplex |
| Port count | 1 |
| Interface detail | 1 x LC 1000Base-LX Network |
| Wavelength | 1310nm |
| Maximum distance | 10km/6.2 mi. |
| Reach class | Medium reach (2–10 km) |
| Link budget | 10.5 dB |
Monitoring
| DMI | With DMI |
|---|---|
| Diagnostic support | DDM / DMI supported |
Electrical and mechanical
| Module type | SFP (mini-GBIC) |
|---|---|
| Power input | 3.3V |
| Power consumption | 0.66 Watts |
| Width | 0.52” [13 mm] |
| Depth | 2.18” [55 mm] |
| Height | 0.33” [8 mm] |
Environment
| Operating temperature | 0°C to 70°C |
|---|---|
| Storage temperature | -40°C to 85°C |
Compliance
| Standard | IEEE 802.3 |
|---|---|
| Certifications | IEC-60825; FDA 21, CFR 1040.10 and 1040.11; UL Listed |
| TAA compliant | Yes |
| Environmental compliance | Waste Electrical and Electronic Equipment Directive (WEEE); Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Ordering and support
| Series | TN-GLC-LH-SM Series |
|---|---|
| Limited warranty | Lifetime |
| UPC | 648177037872 |
Questions
TN-GLC-LH-SMD FAQ
Can I order this same diagnostic optic in a larger package?
Yes. TN-GLC-LH-SMD-PK groups twenty modules of this model into one package.
How much host power does each module require?
The module requires a 3.3V input and has specified consumption of 0.66 W.
Which environmental declarations are recorded for this SKU?
The structured specifications identify WEEE, RoHS and REACH compliance. They also identify TAA compliance and UL Listed status.
Which references are available for technical review?
The series documents include a Product Brief and the Various SFPs user guide, document 33480, revision F.
What limited warranty is listed for the module?
The limited warranty value is lifetime.
