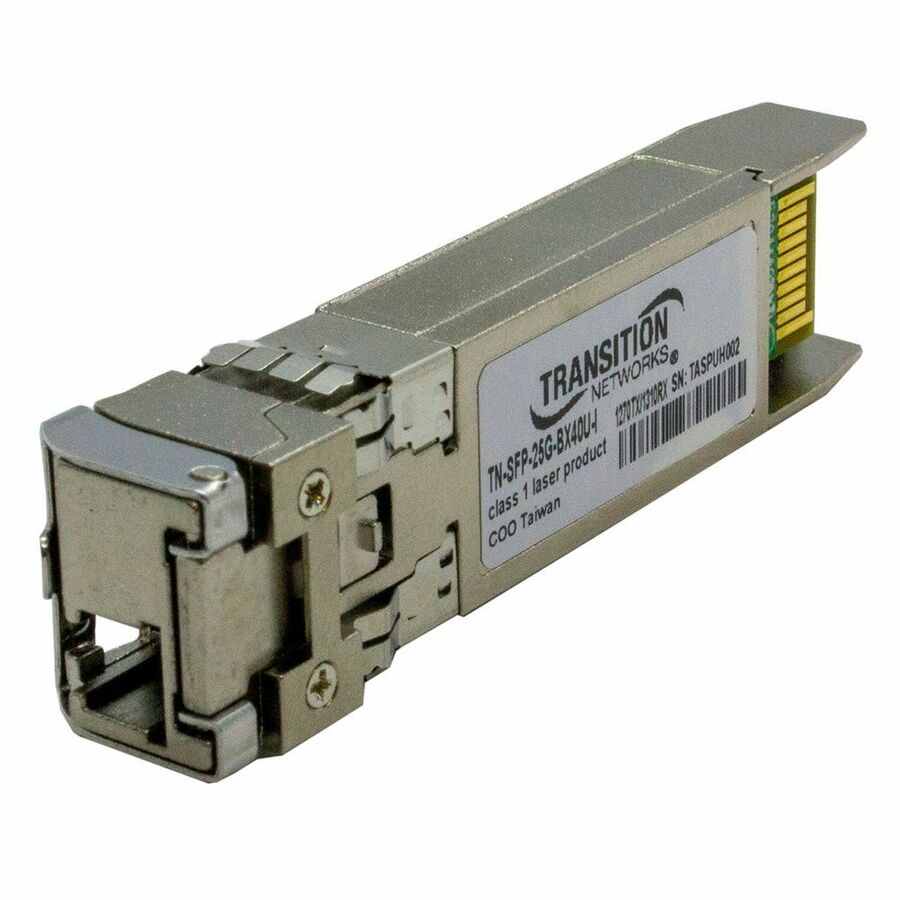

Lantronix TN-SFP-25G-BX40U-I — 25GBase-BX SFP28 Transceiver
$960.43$1,431.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 25Gbase-BX SFP28 optical transceiver with DMI
- 1270nm TX / 1310nm RX wavelength configuration
- 40KM / 24.9 mi. maximum distance
- 19.0 dB link budget
- Single mode single fiber LC connection
- -40°C to 85°C operating temperature
- Cisco Compatible 25GBase SFP28 module
Lantronix TN-SFP-25G-BX40U-I is a Cisco Compatible 25GBase-BX SFP28 module with DMI and an LC connector. It uses 1270nm TX / 1310nm RX optics for single mode single fiber links. The module is listed for 40KM / 24.9 mi. distance with a 19.0 dB link budget. Its operating temperature range is -40°C to 85°C. Lantronix lists TN-SFP-25G Series applications as 25G Ethernet and Fiber Channel for Data Center, and eCPRI for 5G Fronthaul/Backhaul.
Ideal For
- 25G Ethernet links for Data Center applications
- Fiber Channel for Data Center applications
- eCPRI for 5G Fronthaul/Backhaul
- Single mode single fiber 25GBase-BX connections
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Warranty | Lifetime |
| Standards | IEEE 802.3z; IEEE 802.3; IEEE 802.3ae; IEEE 802.3CC |
| Compliance | MSA Compliant; Compliant with 25GBase-xR; Compliant with 5G eCPRI; Compliant with SFF-8431; Compliant with SFF-8472 |
| Form Factor | SFP28 |
| Link Budget | 19.0 dB |
| Power Input | 3.3V |
| TAA Compliant | Yes |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| Network Technology | 25GBase-BX |
| Receive Wavelength | 1310nm |
| Ethernet Technology | 25 Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Transmit Wavelength | 1270nm |
| Fiber Mode Supported | Single-mode |
| Media Type Supported | Optical Fiber |
| Operating Temperature | -40°C to 85°C |
| Environmental Compliance | RoHS Compliant |
| Maximum Distance Supported | 40KM / 24.9 mi. |
Frequently Asked Questions
What connector and fiber type does this SFP28 use?▾
It uses a simplex LC connection for single mode single fiber.
What are the transmit and receive wavelengths?▾
The TN-SFP-25G-BX40U-I uses 1270nm TX / 1310nm RX.
What operating temperature range is listed for this SKU?▾
The operating temperature for TN-SFP-25G-BX40U-I is -40°C to 85°C.
Is this part Cisco compatible?▾
Lantronix identifies the TN-SFP-25G Series as Cisco Compatible 25GBase SFP28 Modules.
