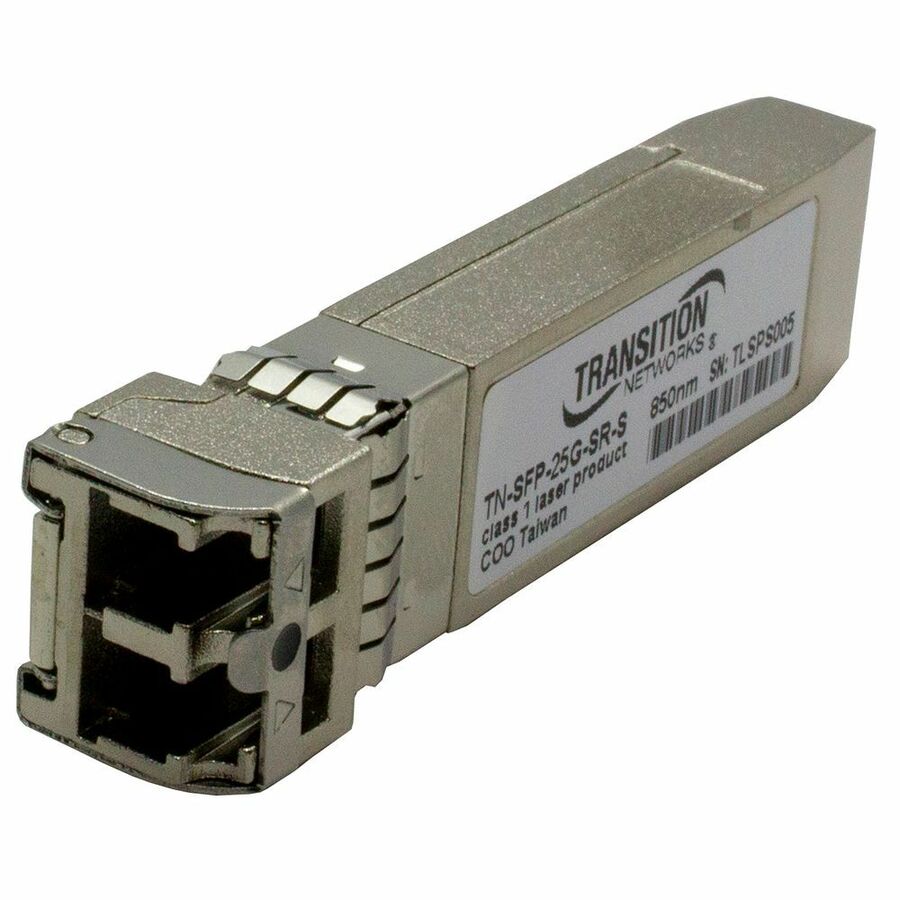

Lantronix TN-SFP-25G-SR-S — TN-SFP-25G Series 10G/25GBase-SR SFP28
$270.40$402.80
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Thursday, Oct 15
New, with full manufacturer warranty
Key Features
- 10G/25GBase-SR SFP28 transceiver with DMI
- 850nm multimode LC optics with 100/70 m; 328/230 ft. reach
- 100m distance on 50/125 OM4 multimode fiber and 70 m on 50/125 um OM3 multimode fiber
- 1.9 dB link budget
- 3.3V power input with < 1.2 Watts power dissipation
- MSA, SFF-8431, SFF-8472 and RoHS compliance
Lantronix TN-SFP-25G-SR-S is a Cisco Compatible TN-SFP-25G Series SFP28 optical transceiver for 10G/25GBase-SR links. It uses DMI, an LC connector and 850nm multimode optics. This SR model is specified for 100/70 m; 328/230 ft. reach, with up to 100m on 50/125 OM4 multimode fiber and up to 70 m on 50/125 um OM3 multimode fiber. The listed link budget is 1.9 dB. Lantronix lists applications for the series as 25G Ethernet and Fiber Channel for Data Center, and eCPRI for 5G Fronthaul/Backhaul. The module uses a single +3.3V power supply and is listed with Lifetime warranty.
Ideal For
- 25G Ethernet data center links
- Fiber Channel for Data Center
- eCPRI for 5G Fronthaul/Backhaul
- 10G/25GBase-SR multimode fiber links using LC connectivity
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Distance | 100/70 m; 328/230 ft |
| Standard | IEEE 802.3z; IEEE 802.3ae; IEEE 802.3CC |
| Warranty | Lifetime |
| Compliance | MSA Compliant; 10GBase-xR; 25GBase-xR; 5G eCPRI; SFF-8431; SFF-8472; RoHS Compliant |
| Fiber Mode | Multimode |
| Wavelength | 850nm |
| Link Budget | 1.9 dB |
| Power Input | 3.3V |
| Om3 Distance | Up to 70 m on 50/125 um OM3 multimode fiber |
| Om4 Distance | Up to 100m on 50/125 OM4 multimode fiber |
| Product Type | SFP28 |
| Certification | IEC-60825; FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| Product Series | TN-SFP-25G Series |
| Power Dissipation | < 1.2 Watts |
| Network Technology | 10G/25GBase-SR |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 70°C |
Frequently Asked Questions
What fiber and connector does TN-SFP-25G-SR-S use?▾
It uses 850nm multimode fiber with an LC connector. Lantronix lists distance as 100/70 m; 328/230 ft., with up to 100m on 50/125 OM4 multimode fiber and up to 70 m on 50/125 um OM3 multimode fiber.
Is this SFP28 module Cisco compatible?▾
Yes. Lantronix describes the TN-SFP-25G Series as Cisco Compatible 25GBase SFP28 modules, and this part is the TN-SFP-25G-SR-S model.
Does this model include DMI?▾
Yes. The part row lists TN-SFP-25G-SR-S as 10G/25GBase-SR, SFP28 with DMI.
What is the operating temperature range?▾
Lantronix lists the operating temperature for TN-SFP-25G-SR-S as 0°C to 70°C.
