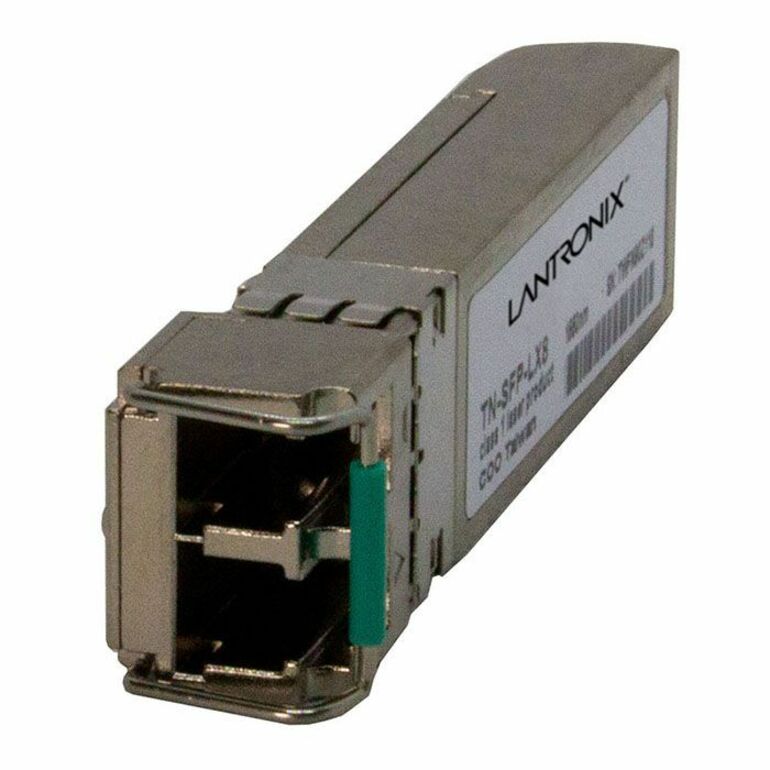

Lantronix TN-SFP-LX8 — TN-SFP-LX Series 1000Base-LX Single-Mode LC SFP
$599.50
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-LX 1550nm single mode LC interface with DMI
- 80 km/49.7 mi. fiber reach for long-distance links
- 24.0 dB link budget
- Hot-pluggable SFP footprint optical transceiver
- Digital Diagnostic Function
- MSA compliance for SFP Multi-Sourcing Agreement support
Lantronix TN-SFP-LX8 is a TN-SFP-LX Series 1000Base-LX SFP module for single mode fiber links. It uses 1550nm optics, an LC interface and DMI, with an 80 km/49.7 mi. reach and 24.0 dB link budget. The TN-SFP-LX Series is MSA compliant and built in a hot-pluggable SFP footprint optical transceiver format. Series features include Digital Diagnostic Function and compliance with the SFP Multi-Sourcing Agreement (MSA). Applications include Gigabit Ethernet switches and routers, Fiber Channel switch infrastructure, xDSL applications and Metro Edge Switching.
Ideal For
- Gigabit Ethernet switches and routers
- Fiber Channel switch infrastructure
- xDSL applications
- Metro Edge Switching
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Standard | IEEE 802.3 |
| Warranty | Lifetime |
| Fiber Mode | Single-mode |
| Wavelength | 1550nm |
| Form Factor | Hot-pluggable |
| Link Budget | 24.0 dB |
| Power Input | 3.3V |
| Compatibility | MSA Compliant |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| TAA Compliance | TAA Compliant |
| Maximum Distance | 80 km |
| Network Interface | 1 x LC 1000Base-LX Network |
| Power Consumption | 0.66 Watts |
| Network Technology | 1000Base-LX |
| Ethernet Technology | Gigabit Ethernet |
| Operating Temperature | 0°C to 70°C |
Frequently Asked Questions
What fiber type and connector does TN-SFP-LX8 use?▾
TN-SFP-LX8 uses 1000Base-LX 1550nm single mode optics with an LC interface and DMI.
What distance does TN-SFP-LX8 support?▾
The listed reach is 80 km/49.7 mi. with a 24.0 dB link budget.
What applications is the TN-SFP-LX Series listed for?▾
Applications include Gigabit Ethernet switches and routers, Fiber Channel switch infrastructure, xDSL applications and Metro Edge Switching.
Is TN-SFP-LX8 TAA compliant?▾
Yes. TN-SFP-LX8 is listed as TAA Compliant.
