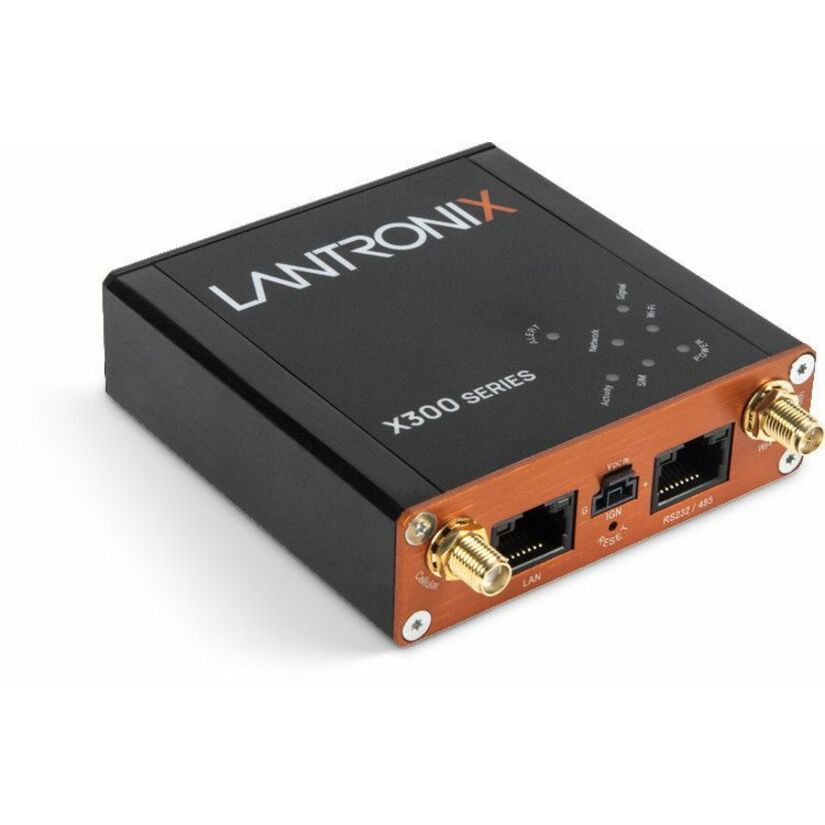

Lantronix X300F202S — Wi-Fi Only Gateway
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Key Features
- Wi-Fi Only configuration for the X300 Series wireless gateway
- 1 year of Percepxion IoT Edge solution platform included
- LEVEL 2 technical services included
- Antennas and power supply included
- One LAN port with 10/100BASE-T via a RJ-45 header fitted with two LEDs
- RS-232 6-signal serial communication via an RJ-45 header
- RS-485 half or full duplex via RJ-45 header, switchable by software
Ideal For
- PLC and HMI connectivity for real-time monitoring and control
- Protocol conversion to integrate legacy machines with modern SCADA and MES systems
- Remote monitoring of substations, transformers and energy storage systems
- Multi-site deployments with centralized management via Percepxion
Specifications
| Depth | 3.1" |
| Height | 0.9" |
| Series | X300 Series |
| Ethernet | 10/100BASE-T |
| Wireless | Wi-Fi 5 and Bluetooth/BLE 5.0 |
| Form Factor | Compact |
| RS-485 Mode | Half or full duplex |
| Configuration | X300 Wi-Fi Only |
| Ethernet Port | One LAN port |
| Limited Warranty | Lifetime |
| Serial Connector | RJ-45 header |
| Serial Switching | Switchable by software |
| Included Platform | 1 year of Percepxion IoT Edge solution platform |
| Ethernet Connector | RJ-45 header fitted with two LEDs |
| Technical Services | LEVEL 2 technical services |
| Included Accessories | Antennas and power supply |
| Serial Communication | RS-232 6-signal (Rx, Tx, RTS, CTS, either DSR or DCD, DTR) implementation |
| VPN Tunneling Protocols | Wireguard, ZeroTier, OpenVPN client/server/passthrough, PPTP client, L2TP, GRE, IPsec up to 4 channels |
Frequently Asked Questions
What is included with X300F202S?▾
X300F202S includes the wireless gateway, 1 year of Percepxion IoT Edge solution platform, LEVEL 2 technical services, antennas and a power supply.
Is X300F202S a cellular gateway?▾
Lantronix lists X300F202S in the X300 Wifi Only group. Cellular options listed for the series include X303 with LTE Cat M1 and X304 with LTE Cat1.
What device management platform is included?▾
It includes 1 year of Percepxion IoT Edge solution platform. Percepxion provides True Zero-Touch automation for provisioning remotely deployed Lantronix devices without user intervention.
What wired interfaces are listed for the X300 Series?▾
The series specs list one LAN port with 10/100BASE-T via a RJ-45 header, plus RS-232 6-signal and RS-485 serial communication via RJ-45 header.
