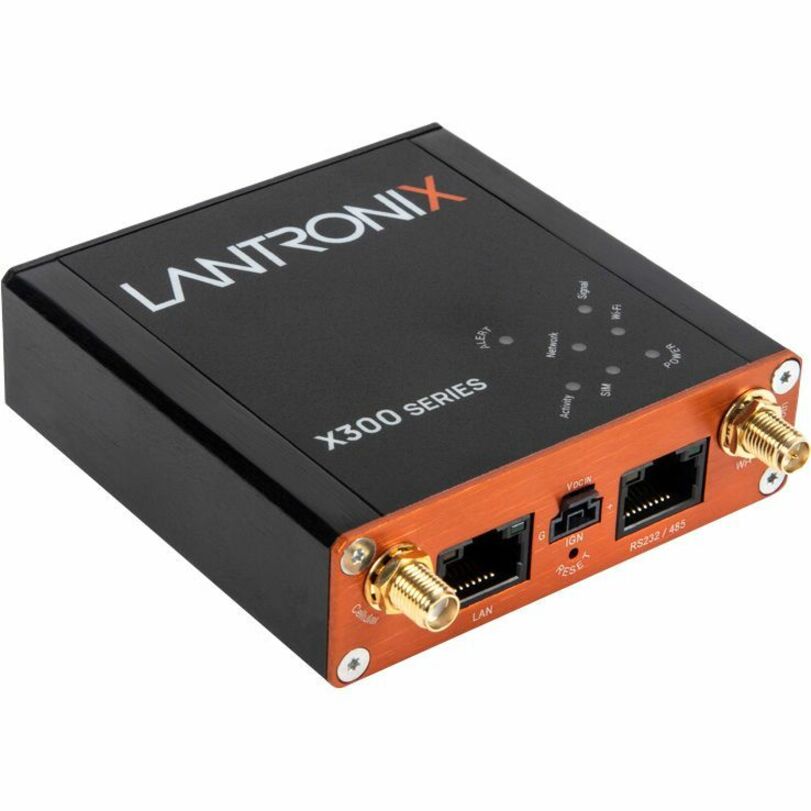

Lantronix X300 Series Industrial Serial, Wi-Fi and LTE Gateways
The X300 Series is a compact industrial gateway that connects serial PLCs, meters and controllers to SCADA and cloud systems over Wi-Fi 5, LTE-M or LTE Cat-1, with protocol conversion and VPN built in.
From $223.70
Overview
About the Lantronix X300 Series
The X300 Series gives legacy serial equipment a secure path onto modern networks. One software-switchable serial port (RS-232 or RS-485), a 10/100BASE-T Ethernet port and wireless WAN let a single small gateway sit beside a PLC, RTU or meter and carry its data to SCADA, MES or cloud platforms, with multi-WAN failover between cellular and Wi-Fi when a link drops.
Three hardware variants share the platform (written X300, X303 and X304, or X-300 in some listings): X300F202S is Wi-Fi only, X303F202S adds LTE Cat M1 with 2G fallback, and X304 models such as X304G00AS use LTE Cat-1 in regional builds. The gateway converts in real time between Modbus, DNP3, IEC 104, OPC-UA, MQTT and other industrial protocols. VPN options include WireGuard, ZeroTier, OpenVPN client/server/passthrough, PPTP client, L2TP, GRE and IPsec with up to four channels. The SIM slot is a mini-SIM holder with an optional MFF2 embedded SIM.
Security is handled by Lantronix InfiniShield, with signed firmware, a zone-based firewall and encrypted VPN transport, and Lantronix states compliance with FCC, CE, UL and recent CRA standards. Each gateway SKU includes antennas, a power supply, one year of the Percepxion IoT Edge platform for zero-touch provisioning and over-the-air updates, and LEVEL 2 technical services.
Key capabilities
- Industrial protocol conversion
- Real-time translation between Modbus, DNP3, IEC 104, OPC-UA and MQTT lets older field devices report into current SCADA and cloud systems.
- Software-switchable serial port
- The RJ-45 serial port runs RS-232 with six signals or RS-485 half or full duplex, selected in software rather than by jumper.
- Multi-WAN failover
- Wi-Fi 5 and 4G LTE can back each other up, keeping remote monitoring links up when one network goes down.
- Broad VPN support
- WireGuard, ZeroTier, OpenVPN, L2TP, GRE, PPTP client and IPsec with up to four channels cover most site-to-site and remote access designs.
- Percepxion included
- Every gateway part number bundles one year of Percepxion for zero-touch provisioning, configuration pushes and firmware updates across many sites.
How to choose the right X300 Series part number
Pick by WAN type, then region. X300F202S is the Wi-Fi only gateway. X303F202S is the worldwide LTE-M model with 2G fallback. X304 models are LTE Cat-1 by region: X304G00AS for USA/Canada, X304G000S for Latin America, X304G002S for EMEA/APAC, X304G007S for Japan/South Korea and X304G00CS for China, India, Thailand and Indonesia. All include antennas and a power supply. Spares and options: A31M0 (X303 LTE antenna), A33M0 (X304 LTE/GNSS antenna), A21H0 Wi-Fi dipole, ACC-520-0165-00 12 VDC supply, ACC-500-0420-00 bare-wire power cord and BR250/BR475 DIN clips.
Configure & order
Find your X300 Series part number
Every orderable X300 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
X300F202S
$223.70
Ships on backorder
X303F202S
$270.70
Ships on backorder
X304G00AS
$345.35
Ships on backorder
X304G000S
$353.98
Ships on backorder
X304G002S
$345.35
Ships on backorder
X304G007S
$345.35
Ships on backorder
X304G00CS
$344.48
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the X300 Series, organized by what it does — antennas, power, cables & adapters, mounting & enclosures— each with why you'd add it.
Antennas
6 items
A21H0
A21H0
2.4/5.8GHz dipole antenna for ISM and WLAN applications. It uses a hinged RP-SMA(M) connector and is listed for supported Lantronix gateway and router products.
$10.72
Ships on backorder
Antenna
A21H0
2.4/5.8GHz dipole antenna for ISM and WLAN applications. It uses a hinged RP-SMA(M) connector and is listed for supported Lantronix gateway and router products.
$10.72
Ships on backorder
X303 Only
A31M0
Single LTE adhesive remote antenna for cellular network use. It includes a 3000MM RG174 cable and is listed with (3) SMA male for X303 use.
$15.04
Ships on backorder
Antenna
A31M0
Single LTE adhesive remote antenna for cellular network use. It includes a 3000MM RG174 cable and is listed with (3) SMA male for X303 use.
$15.04
Ships on backorder
X304 Only
A33M0
Three-in-one LTE antenna with (2) LTE + GPS/GLONASS/BD support. It includes a 3000MM RG174 cable with (3) SMA male connectors and an adhesive mount.
$42.00
Ships on backorder
Antenna
A33M0
Three-in-one LTE antenna with (2) LTE + GPS/GLONASS/BD support. It includes a 3000MM RG174 cable with (3) SMA male connectors and an adhesive mount.
$42.00
Ships on backorder
Power
2 items
ACC-520-0165-00
ACC-520-0165-00
Wall cube power supply for compatible cellular gateway products. It provides 12VDC output at 12W with a 1X3 3.0MM latched connector output.
$49.00
Ships on backorder
Power Supply
ACC-520-0165-00
Wall cube power supply for compatible cellular gateway products. It provides 12VDC output at 12W with a 1X3 3.0MM latched connector output.
$49.00
Ships on backorder
Cables & adapters
1 itemCable
ACC-500-0420-00
Power cord for IoT gateways with a 3-pin Nano-Fit plug, 2.5 A fuse, and two 1-metre-long AWG20 stripped wires.
$13.56
Ships on backorder
Mounting & enclosures
2 itemsDin clip
BR250
DIN clip for X300 Series installations. It is a single-mount, 4½ U width metal mounting bracket.
$4.90
Ships on backorder
Din clip
BR475
BR475 is a Lantronix metal Din clip for the X300 Series Compact Cellular IoT Gateway Solution. It uses a single mount configuration with 4¾ U / 1¾ U widths.
$8.90
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the X300 Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the X300 Series is used
- PLC and HMI connectivity to SCADA over LTE
- Substation and transformer monitoring using DNP3 and Modbus
- Water, wastewater and oil and gas remote telemetry
- Modernizing legacy serial equipment with cloud and MQTT integration
X300 Series datasheets & documentation
- Check out the Product Brief for more DetailsPDF
- X303 (LTE-M) Quick Start Guide Rev CPDF
- X300 (Non-cellular) Quick Start Guide Rev BPDF
- X304 (LTE CAT-1) Quick Start Guide Rev BPDF
- X300 Series User Guide Rev DPDF
- PCN-1065 X303_X304 SERIES – FW- v2.6.0.3R6 ViewPDF
- PCN-1064 X300F202S NEW FW, 2.6.0.3R6 ViewPDF
- PCN-1051 – X300F202S NEW FW- 2.6.0.0R6 ViewPDF
X300 Series FAQ
What is the difference between the X300, X303 and X304?
X300 is the Wi-Fi only version with no cellular radio. X303 uses LTE Cat M1 with 2G fallback and is a single worldwide SKU. X304 uses LTE Cat-1, with 3G or 2G fallback options, and comes in regional part numbers.
Which industrial protocols can the X300 gateway convert?
Lantronix lists real-time conversion between Modbus, DNP3, IEC 104, OPC-UA, MQTT and other industrial protocols, so legacy serial equipment can integrate with SCADA, MES and cloud platforms.
Does the X300 support RS-485?
Yes. The serial port is software-switchable between RS-232 with six signals (Rx, Tx, RTS, CTS, DSR or DCD, DTR) and RS-485 in half or full duplex, presented on an RJ-45 header, so one SKU covers both interface types.
Which X304 part number should I order for the United States?
Order X304G00AS, the USA/Canada LTE Cat-1 model. Other X304 builds are regional: Latin America (X304G000S), EMEA/APAC (X304G002S), Japan/South Korea (X304G007S) and China/India/Thailand/Indonesia (X304G00CS). For a single worldwide SKU, the X303F202S uses LTE-M instead.
What comes with an X300 Series gateway?
Each gateway part number includes antennas, a power supply, one year of the Percepxion IoT Edge solution platform and LEVEL 2 technical services. DIN clips (BR250, BR475) and a bare-wire power cord (ACC-500-0420-00) are separate accessories.
