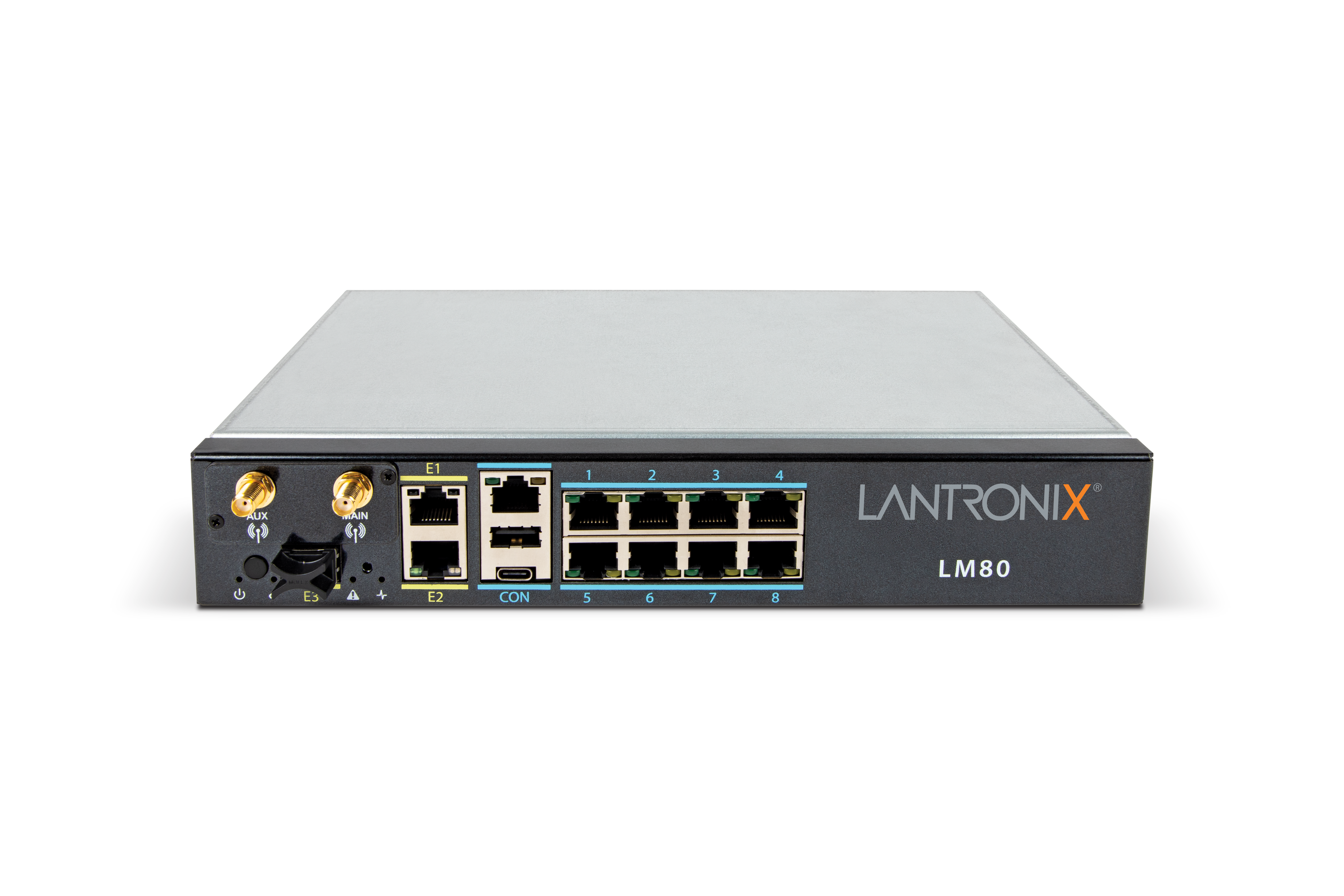

Lantronix LM80 Out-of-Band Console Server

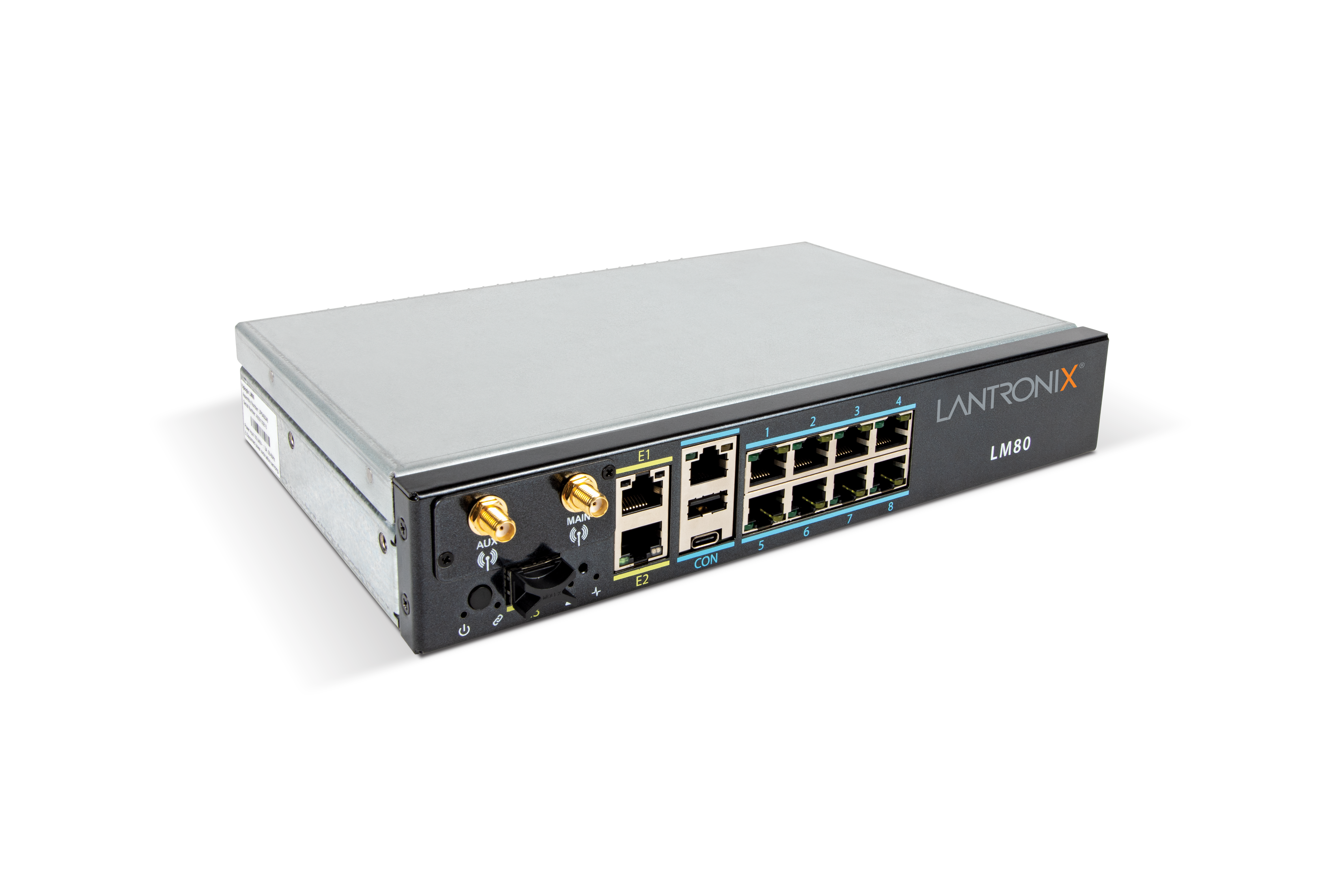

The LM80 is a compact out-of-band console server for branch offices and remote sites, managing up to eight serial-connected devices with the same LMOS automation software as the larger LM83X.
From $1,580.00
Overview
About the Lantronix LM80
The LM80 gives network teams an independent path into routers, switches, firewalls and managed power at small sites when the production network is down. Lantronix describes the LM-Series as the only state-aware console servers: an expert system that uses rules-based AI to recover and mitigate infrastructure problems automatically. The LM80 (also written LM-80) brings that LMOS software to a 1RU, 10-inch-wide chassis sized for branch racks.

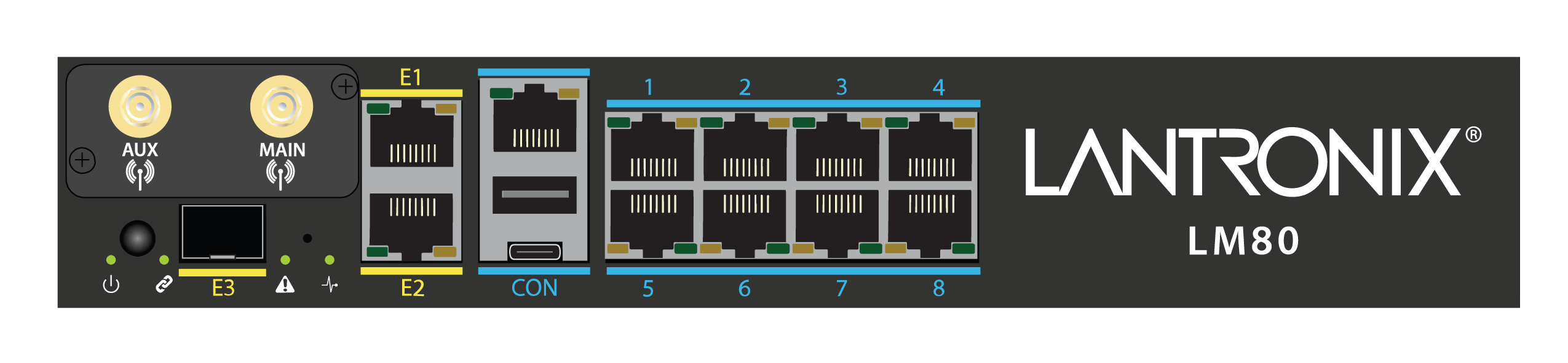

Each unit has 4, 6 or 8 fixed RS-232 serial ports, two 10/100/1000BASE-T Ethernet interfaces with failover, one SFP port, an RS-232 console port and USB-A and USB-C ports. Storage is a 256 GB NVMe drive with TCG Opal 2.0 and 256-bit AES encryption. One option slot accepts LTE Cat 4, HSPA+, V.92 dial-up, RS-232 or Fiber-E cards, and an Iridium modem kit provides LEO satellite out-of-band links. FIPS 140-2 Level 2 is available.
Beyond serial consoles, the LM80 manages virtual environments and SD-WAN deployments through virtual ports and port forwarding. Solution features include ROMmon recovery, configuration rollback, zero-touch deployment and out-of-band baseboard management. Units are managed from the CLI or from Lantronix Control Center, which applies automated actions across a deployment without scripting and produces compliance reports.
Key capabilities
- Automated recovery with LMOS
- Rules-based automation handles ROMmon recovery and configuration rollback on connected devices, recovering infrastructure without waiting for an engineer to connect.
- Modular out-of-band path
- One option slot takes LTE Cat 4 modems for AT&T, Verizon, EU/UK/AUS/NZ or global use, plus HSPA+, V.92 dial-up and fiber cards.
- Iridium satellite option
- The LEO-500 Iridium modem kit provides out-of-band access at sites with no usable cellular or wired connection.
- Encrypted onboard storage
- A 256 GB NVMe drive with TCG Opal 2.0 and 256-bit AES encryption holds logs and configurations; FIPS 140-2 Level 2 is available.
- Small-site form factor
- The 1RU chassis measures 254 mm wide by 163 mm deep, weighs 2 kg and runs on a 30 W internal 100-240 VAC supply.
How to choose the right LM80 part number
LM80 base models differ only in serial port count: 80-4S-NNN-NAA has 4 RS-232 ports, 80-6S-NNN-NAA has 6 and 80-8S-NNN-NAA has 8. All include two Gigabit Ethernet ports, an SFP port and LMS. Then add one option card for the out-of-band link: 88-CAT4ATTA (AT&T) or 88-CAT4VA (Verizon) for US LTE, 88-CAT4EUA for EU/UK/AUS/NZ, 88-CAT4GLOBAL elsewhere, 88-V92A for dial-up, or 88-FIBERMMA/88-FIBERMSA for multimode or single-mode fiber. Accessories include the 61-5010-01 temperature/humidity sensor and USB-CAA console adapter.
Configure & order
Find your LM80 part number
Every orderable LM80 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

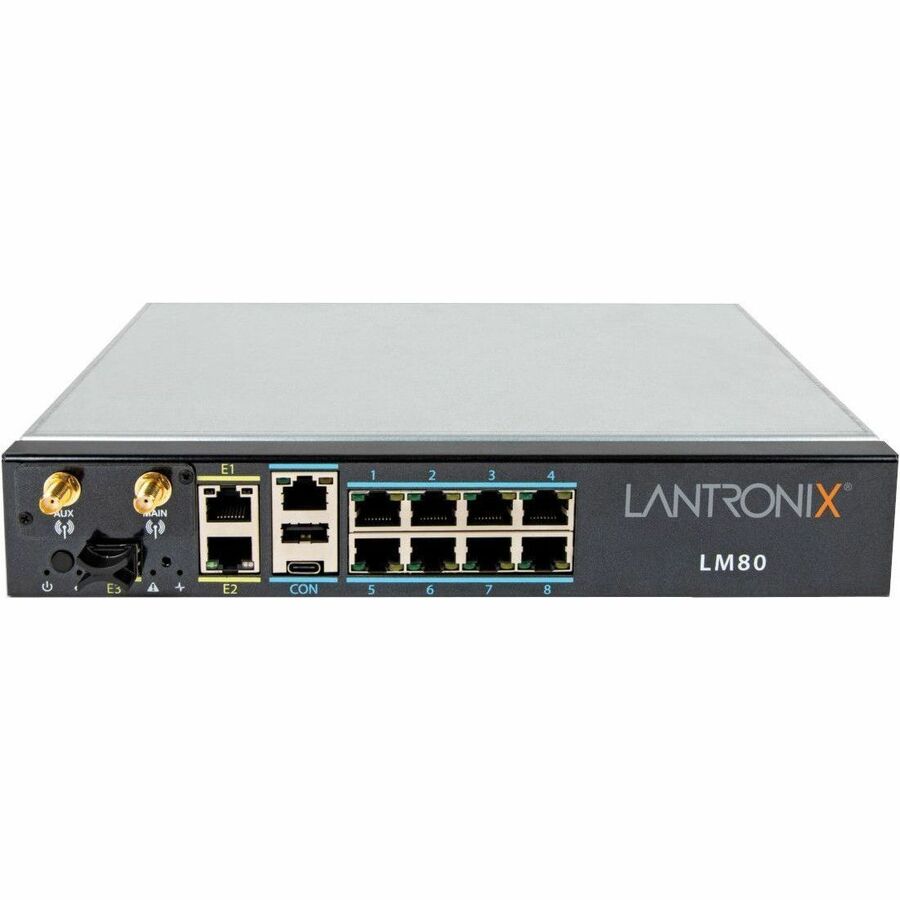

80-4S-NNN-NAA
$1,785.00
Ships on backorder

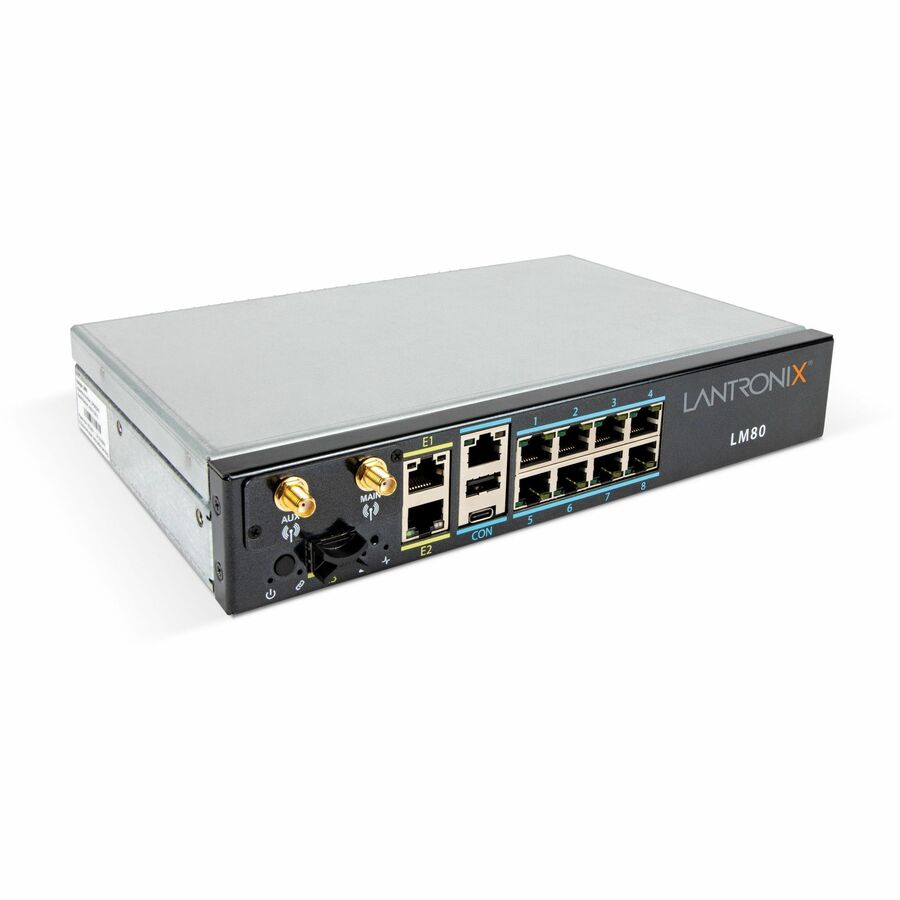

80-6S-NNN-NAA
$2,152.50
Ships on backorder
80-8S-NNN-NAA
$1,580.00
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the LM80, organized by what it does — cables & adapters, modules & option cards, other add-ons— each with why you'd add it.
Cables & adapters
2 items
ACC-500-103
ACC-500-103
6 ft RJ-45/Serial network/data transfer cable. It connects from RJ-45 Network male to DB-9 Serial female for DTE devices including terminals, printers and console ports.
$14.25
Ships on backorder
Adapter, USB Console
USB-CAA
USB Console Adapter for LM83X, LM80, LM4, 500 and 5000 systems.
$170.00
Ships on backorder
Modules & option cards
11 itemsV.92 WW Modem Module .R1
88-V92A
V.92 WW Modem Module .R1 for LM80/LM83X Local Manager platforms. It is listed as an Analog Modem Module for Data Networking.
$100.00
Ships on backorder
Fiber-E Carrier, w/o SFP
88-FIBERSMA
Fiber-E Carrier option card for Lantronix LM80/LM83X Local Manager systems. It is supplied without an SFP and lists 1 x Network interface for optical fiber media.
$165.00
Ships on backorder
Fiber-E Module, w/Single Mode Fiber SFP
88-FIBERMSA
Fiber-E option card for LM80 and LM83X Local Managers. It includes a single-mode fiber SFP for optical-network and data-networking use.
$195.00
9,999 in stock
Fiber-E Module, w/Multi-Mode Fiber SFP
88-FIBERMMA
Fiber-E Module with a multi-mode fiber SFP for LM80/LM83X systems. It provides a 1 x Network optical fiber interface for data networking and optical network applications.
$205.00
9,999 in stock
US LTE Cat 4 Internal modem for AT&T
88-CAT4ATTA
US LTE Cat 4 internal modem for AT&T for LM80/LM83X systems. This combo SKU includes an external antenna.
$308.00
Ships on backorder
US LTE Cat 4 Internal modem for Verizon (combo)
88-CAT4VA
US LTE CAT 4 internal modem option for Verizon deployments on LM80/LM83X platforms. It is supplied as a combo with an external antenna.
$308.00
Ships on backorder
Penta-band HSPA+ Cellular Modem
88-HSPA+A
Penta-band HSPA+ Cellular Modem option card for LM80/LM83X systems. It fits the LM-Series modular OOB modem architecture described for cellular option cards.
$308.00
9,999 in stock
LTE CAT4 internal modem for EU/UK/AUS/NZ
88-CAT4EUA
LTE CAT4 internal modem option for LM80/LM83X state-aware console servers in EU/UK/AUS/NZ. It includes an external high gain antenna.
$350.00
9,999 in stock
LTE CAT4 Global internal modem
88-CAT4GLOBAL
LTE CAT4 GLOBAL internal modem option card for LM80/LM83X deployments. It is supplied with an external high gain antenna for cellular out-of-band connectivity.
$350.00
Ships on backorder
LEO-500 Iridium Satellite Modem Kit
LEO-500
Iridium Satellite Modem Kit listed as a compatible accessory for the Lantronix LM80.
Other add-ons
2 itemsTemperature/Humidity Sensor
61-5010-01
Temperature/Humidity Sensor accessory for LM83X, LM80, and LM4 systems.
$145.00
Ships on backorder
Uplogix USB Handheld LCD/Keypad Module
USB-LCDA
USB Handheld LCD/Keypad Module for LM83X, LM80, LM4 and 500 systems. It provides the listed handheld LCD display and control module accessory for compatible Lantronix deployments.
$250.00
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the LM80. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the LM80 is used
- Branch office out-of-band access to routers and firewalls
- Automated ROMmon recovery and configuration rollback
- Cellular backup console access at low-signal remote sites
- Satellite out-of-band links for energy and DoD locations
- Managing SD-WAN appliances and virtual environments
LM80 datasheets & documentation
LM80 FAQ
What is the difference between the LM80 and LM83X?
Both run the same LMOS software for network management automation. The LM80 is the compact version for smaller deployments such as branch offices, with fixed RS-232 ports for up to eight devices and one modular option slot.
How many devices can the LM80 console server manage?
Up to eight devices over RS-232 serial, depending on the model: 4, 6 or 8 ports. It can also manage virtual environments and SD-WAN deployments through virtual ports and port forwarding.
Which cellular modems work with the LM80?
LTE Cat 4 internal modems are offered for AT&T (88-CAT4ATTA), Verizon (88-CAT4VA), EU/UK/AUS/NZ (88-CAT4EUA) and global use (88-CAT4GLOBAL), each with an external antenna. A penta-band HSPA+ modem (88-HSPA+A) is also listed.
What is the LM80 operating temperature and power?
The LM80 operates from 0°C to 45°C at 20% to 80% non-condensing humidity. It uses an internal universal 100-240 VAC, 50/60 Hz, 30 W power supply, which is included.
How is the LM80 managed centrally?
Access the LM80 and attached devices directly by CLI, or through Lantronix Control Center, which manages LM-Series units from one console, defines automated management actions without scripting and provides compliance reporting for the NOC.
