Lantronix SM12DP2XA Managed Gigabit Fiber Switch with 10G Uplinks
The SM12DP2XA is a managed Layer 2 fiber aggregation switch with twelve 100/1000 SFP slots, two 1G/10G SFP+ uplinks and two Gigabit copper ports, built for networks where most links arrive on fiber.
Overview
About the Lantronix SM12DP2XA
Most access switches are copper-first with a few fiber uplinks. The SM12DP2XA (also written SM-12DP2XA) reverses that: twelve 100/1000Base-X SFP slots terminate fiber runs from buildings, cabinets or floors, and two 1G/10GBase-X SFP+ slots carry the aggregated traffic upstream at 10 Gbps. Two 10/100/1000 RJ-45 ports cover local copper devices or management. Because the slots are dual speed, the same switch can take 100 Mbps and Gigabit optics.
The switch has a 68 Gbps backplane, a 32K MAC table and store-and-forward switching with 9K jumbo frames. Layer 2 features include 4K VLANs, Q-in-Q, LACP, MSTP, RSTP and Lantronix Rapid Ring, IGMP and MLD snooping, 8 QoS queues and IPv4/IPv6 static routing. Security covers RADIUS, TACACS+, 802.1X, L2/L3/L4 ACLs, DHCP snooping and IP Source Guard.

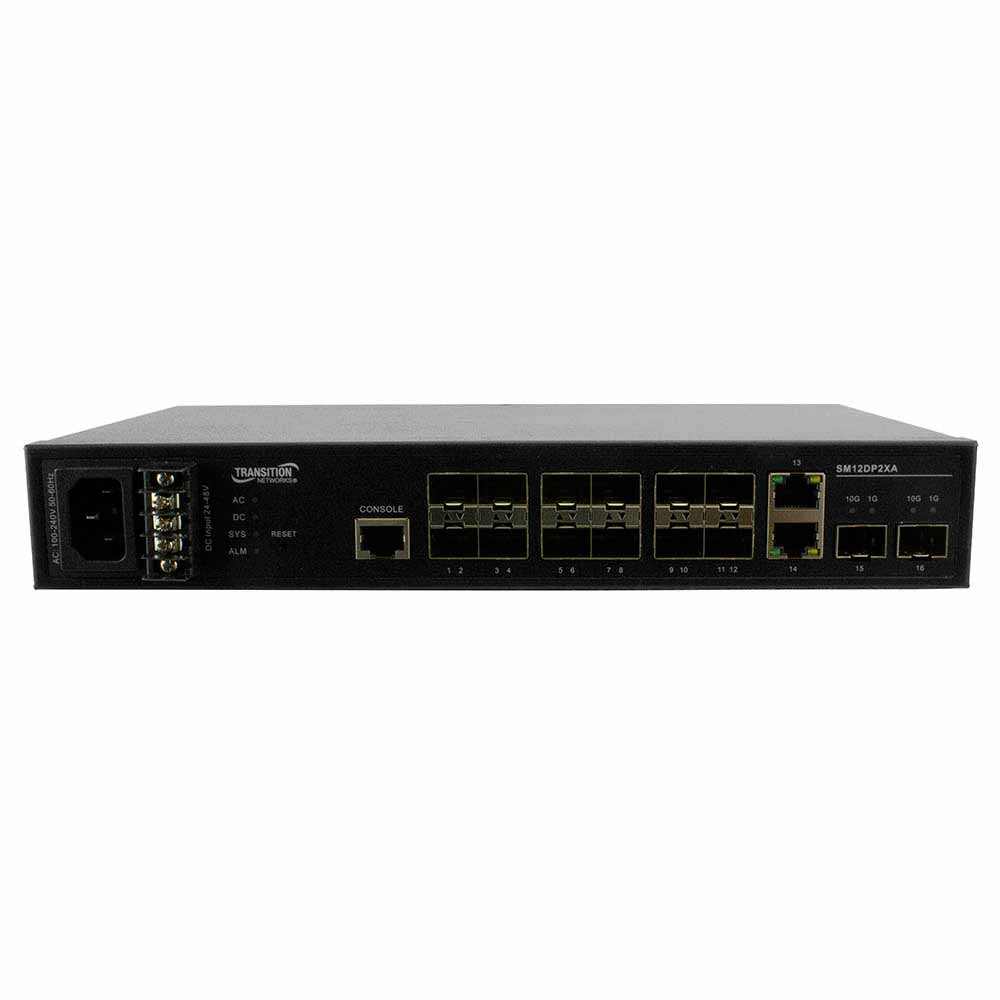

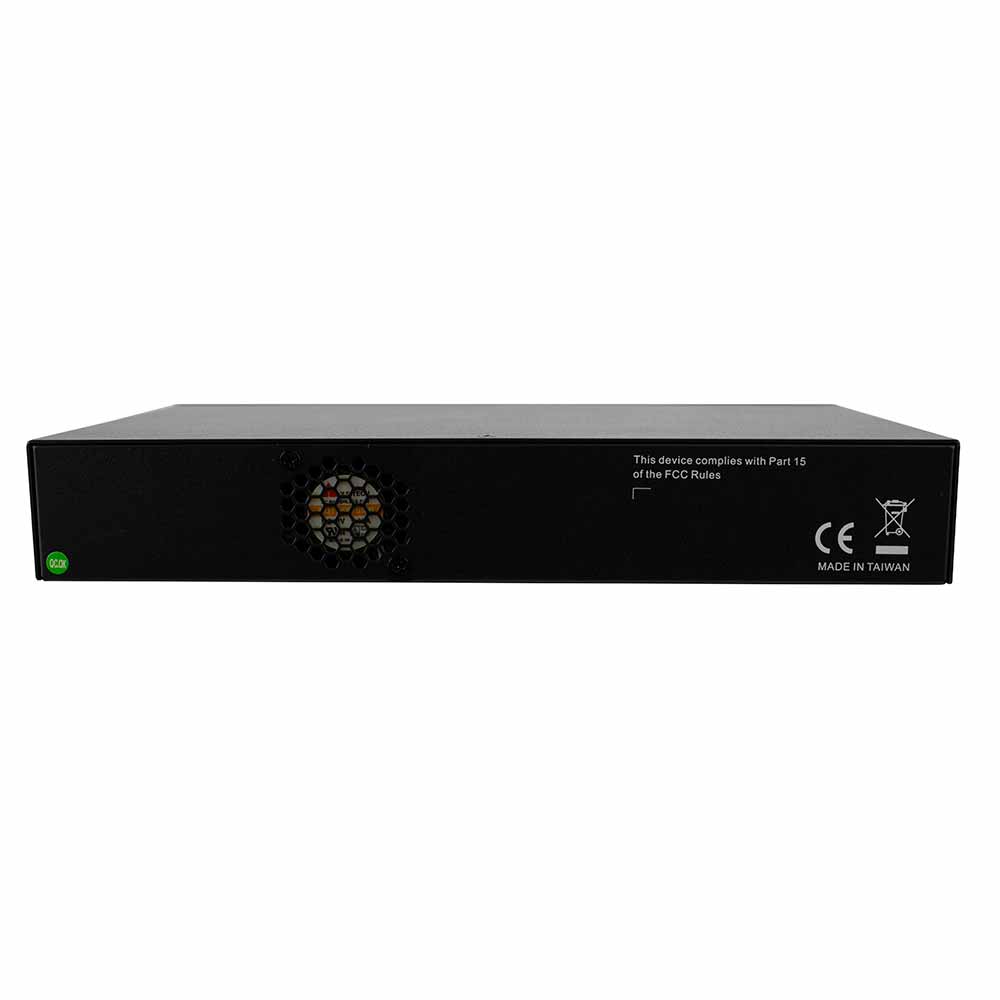

Power is 100-240 VAC on the front panel or 24/48 VDC, with 24 W maximum draw, and the switch operates from -20 to +60 C. It is 280 mm wide and 44 mm high, and 19 in. rack-mount brackets are included. Management is via web, CLI, SSH and SNMP v1/v2c/v3.
Key capabilities
- Twelve dual-speed SFP slots
- Twelve 100/1000Base-X SFP slots terminate Fast Ethernet or Gigabit fiber links, so mixed-speed fiber plants share one aggregation switch.
- Two 10G SFP+ uplinks
- Two 1G/10GBase-X SFP+ slots provide 10 Gbps uplinks to the core, or Gigabit uplinks where the upstream port is 1G.
- AC or DC power
- Use 100-240 VAC from the front panel or a 24/48 VDC source, which suits telecom rooms and industrial cabinets with DC plants.
- Extended -20 to +60 C
- The switch operates from -20 to +60 C at 10% to 90% non-condensing humidity, suiting telecom rooms and closets without tight climate control.
- Full Layer 2 security
- RADIUS, TACACS+, 802.1X with guest VLAN, L2/L3/L4 ACLs, DHCP snooping and IP Source Guard control access on every port.
- 68 Gbps backplane
- A 68 Gbps backplane and 32K MAC address table give headroom for twelve fiber access ports plus two 10G uplinks in one switch.
How to choose the right SM12DP2XA part number
SM12DP2XA is a single switch model, shipped with 19 in. rack-mount brackets, so the main choices are optics and power. SFP and SFP+ transceivers are ordered separately: pick 100Base-FX or 1000Base-X SFPs for the twelve access slots and 10G or 1G SFP+ modules for the two uplinks. For DC operation, the 25130 industrial DIN-rail supply provides 48 VDC at 39.8 W, which covers the switch's 24 W maximum draw.
Configure & order
Find your SM12DP2XA part number
Every orderable SM12DP2XA configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
SM12DP2XA
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the SM12DP2XA, organized by what it does — power — each with why you'd add it.
Power
1 item
25130
25130
Industrial DIN Rail Mounted Power Supply with 48VDC output and a 39.8 Watts power rating.
$92.40
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the SM12DP2XA. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the SM12DP2XA is used
- Fiber aggregation for campus building links
- Collecting fiber runs from outdoor cabinets in a hub
- 10G uplink of mixed 100 Mbps and Gigabit fiber
- DC-powered fiber switching in telecom rooms
SM12DP2XA datasheets & documentation
SM12DP2XA FAQ
What ports does the SM12DP2XA have?
The SM12DP2XA has twelve 100/1000Base-X SFP slots, two 1G/10GBase-X SFP+ slots and two 10/100/1000Base-T RJ-45 ports, for sixteen ports in total. Transceivers for the SFP and SFP+ slots are not included.
Can the SM12DP2XA run on DC power?
Yes. It accepts 100-240 VAC on the front panel or 24/48 VDC, and draws 24 W maximum. The 25130 DIN-rail power supply, rated 48 VDC at 39.8 W, is listed as a compatible accessory.
What is the operating temperature of the SM12DP2XA?
The SM12DP2XA operates from -20 C to +60 C with 10% to 90% non-condensing humidity. It weighs 1.0 kg and measures 280 x 134 x 44 mm, with 19 in. rack-mount brackets included.
Does the SM12DP2XA support ring redundancy?
Yes. It supports Lantronix Rapid Ring along with IEEE 802.1D STP, 802.1w RSTP and 802.1s MSTP, plus IEEE 802.3ad LACP and static trunking for link aggregation.
