Lantronix SM48TAT4XA-RP 48-Port Managed Gigabit PoE+ Switch

The SM48TAT4XA-RP is a 19-inch rack-mount managed switch with 48 Gigabit IEEE 802.3at PoE+ ports and four 1G/10G SFP+ uplinks, with hot-swappable power that scales the PoE budget from 820 W to 1640 W.

1 configuration1 accessories

See part numbers & pricing Accessories Volume Quote

Overview

About the Lantronix SM48TAT4XA-RP

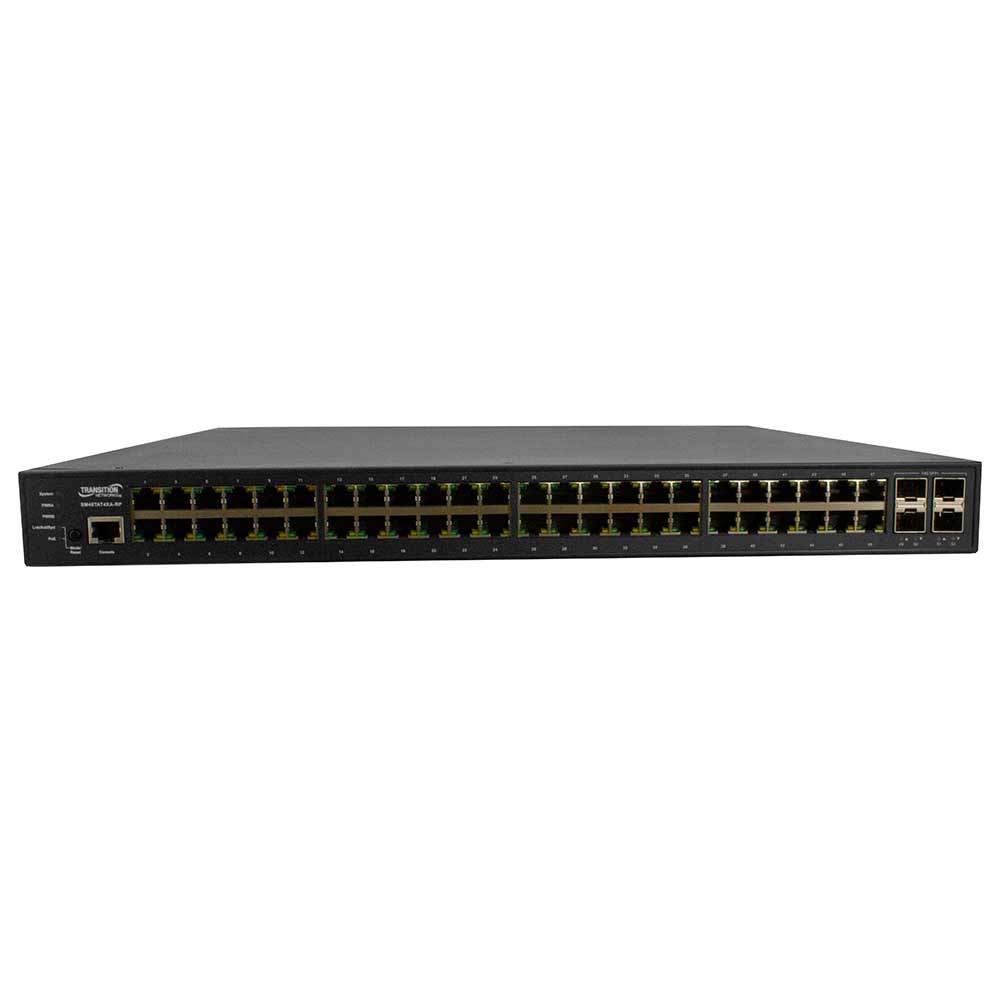

The SM48TAT4XA-RP (also searched as SM48TAT4XA) concentrates a large PoE+ access layer into one rack unit: 48 10/100/1000Base-T ports supporting IEEE 802.3at and 802.3af, plus four dual-speed 1G/10G SFP+ slots for 10 Gbps uplinks. A 176 Gbps backplane and 32K MAC table handle the traffic of dense camera, access point and VoIP deployments.

The switch ships with one AC power supply giving an 820 W PoE budget, enough for 30 W on 27 ports or 15.4 W on all 48. Adding the PS-AC-920 secondary supply raises the budget to 1640 W, delivering 30 W on all 48 ports at once, and the two hot-swappable supplies can run in redundant or burst mode. Auto Power Reset, Always on PoE and LLDP-MED keep powered devices manageable.

Management runs through web, CLI, Telnet and SNMP v1/v2c/v3, with RADIUS 802.1X, TACACS+, 512-entry ACLs, IPv4/IPv6 static routing, IEEE 1588v2 PTP transparent clock, G.8031/G.8032 protection, LACP with up to 26 groups and IGMP and MLD snooping. The Device Management System provides topology, floor and map views, and the switch integrates with Milestone XProtect.

Key capabilities

48 PoE+ ports: Every one of the 48 Gigabit copper ports supports IEEE 802.3at PoE+ and 802.3af PoE for cameras, phones and wireless access points.
Scalable 820 to 1640 W: One supply delivers 820 W of PoE; adding the PS-AC-920 brings 1640 W, enough for 30 W on all 48 ports simultaneously.
Four 10G SFP+ uplinks: Four dual-speed 1G/10G SFP+ slots provide high-bandwidth uplinks to the core and support link aggregation for added capacity and redundancy.

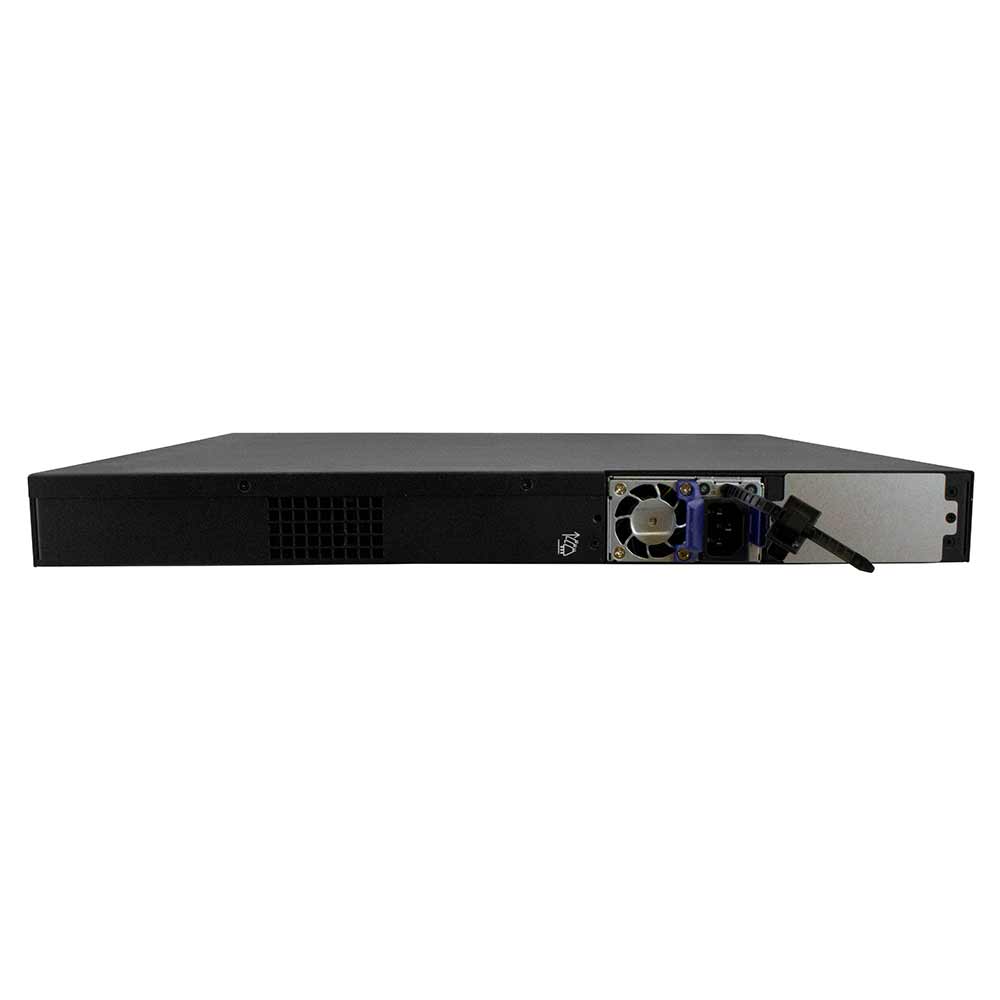

Hot-swappable power: Dual hot-swappable supplies run in redundant mode for failover or burst mode for maximum PoE, without taking the switch offline.
Precision time and rings: IEEE 1588v2 PTP transparent clock and ITU-T G.8031/G.8032 protection support time-sensitive and ring-based network designs.
Layer 3 static routing: IPv4 and IPv6 static routing lets the switch route between VLANs at the access layer alongside 8-queue QoS and DSCP classification.

How to choose the right SM48TAT4XA-RP part number

SM48TAT4XA-RP is a single base model: 48 10/100/1000Base-T PoE+ ports, four empty 1G/10G SFP+ slots, one RS-232 console port, one AC power supply and 19-inch rack-mount brackets. The SFP+ slots ship empty, so add SFP or SFP+ transceivers for your uplink fiber. Order the PS-AC-920 secondary 920 W AC supply if you need power redundancy or more than 820 W of PoE. Lantronix covers this switch and the 24-port SM24TAT4XB in the same installation and user guides.

Configure & order

Find your SM48TAT4XA-RP part number

Every orderable SM48TAT4XA-RP configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

Every modelTotal Ports 52 total portsCopper (RJ-45) Ports 48 copper portsCopper Port Speed 1 GbESFP / Fiber Uplinks 4 SFP uplinksUplink Speed 10G SFP+Power over Ethernet PoE+ (802.3at)PoE Power Budget 820 WPower Supply Dual-PSU capable (1 included)Management ManagedSwitching Layer Layer 2Mounting Rack mountOperating Temperature Commercial (0 °C and warmer)

SM48TAT4XA-RP

52 total ports · 48 copper ports · 1 GbE · 4 SFP uplinks

Quote only

Get quote

Complete the deployment

Accessories, renewals & add-ons

Everything sold for the SM48TAT4XA-RP, organized by what it does — power— each with why you'd add it.

Power

1 item

PS-AC-920

Secondary AC power supply rated at 920 Watts. It is listed with SM24TBT2DPA and SM48TAT4XA-RP switch products.

Quote

Compatibility taken from the Lantronix part-number tables for the SM48TAT4XA-RP. Don't see what you need? Request a quote — we can source the full Lantronix catalog.

Where the SM48TAT4XA-RP is used

Large IP surveillance deployments with up to 48 cameras
Enterprise wireless access point and VoIP phone closets
Milestone XProtect video networks using the Lantronix integration
Campus access layers with 10G fiber uplinks

SM48TAT4XA-RP datasheets & documentation

SM48TAT4XA-RP FAQ

What is the PoE budget of the SM48TAT4XA-RP?

With the single included power supply, the budget is 820 W: 30 W on 27 ports or 15.4 W on all 48 ports simultaneously. With a second PS-AC-920 supply, the budget is 1640 W, delivering 30 W on all 48 ports.

Does the SM48TAT4XA-RP include SFP+ modules?

No. The four 1G/10G SFP+ slots ship empty. The package includes the switch, one AC power supply and 19-inch rack-mount brackets. Add 1G SFP or 10G SFP+ transceivers to match your uplink fiber.

What is the difference between the SM48TAT4XA-RP and SM24TAT4XB?

Both are managed Gigabit PoE+ switches with four 1G/10G SFP+ uplinks, documented in shared guides. The SM48TAT4XA-RP has 48 PoE+ ports and dual hot-swappable power supply bays; the SM24TAT4XB has 24 PoE+ ports.

What is the operating temperature of the SM48TAT4XA-RP?

The switch operates from 0°C to 50°C at 5% to 90% non-condensing humidity. It is UL listed and carries FCC Class A and CE marks, and it measures 17.4 x 17.31 x 1.73 inches.
