Lantronix SM4T4DPA Managed Layer 2 Gigabit Ethernet Switch
The SM4T4DPA is a compact managed Layer 2 switch with four Gigabit copper ports and four dual-speed SFP slots, an even copper-to-fiber split for small enterprise closets and fiber-fed workgroups.
Overview
About the Lantronix SM4T4DPA
The SM4T4DPA (also written SM-4T4DPA) fits sites that need a managed switch but only a handful of ports, with as much fiber as copper. Its four 100/1000Base-X SFP slots accept Fast Ethernet or Gigabit optics for uplinks, rings or links to remote buildings, while four 10/100/1000 RJ-45 ports connect local devices. An internal 100-240 VAC supply means no external power brick.
Switching runs at 16 Gbps with an 8K MAC table and 9K jumbo frames. Layer 2 features include 4096 VLANs with 802.1Q, Q-in-Q, MAC-based, private and guest VLANs, LACP, MSTP, RSTP and a redundant ring protection protocol, IGMP snooping and proxy, 8 QoS queues and ingress and egress bandwidth allocation. Security covers RADIUS 802.1X, TACACS+, SSH/SSL, DHCP snooping with option 82, IP-MAC binding and ACLs.
Management is via web GUI, CLI, Telnet and SNMP v1/v2c/v3, with an RJ-45 console port, IPv4/IPv6 dual stack and single IP management. Firmware updates and configuration backup and restore run through the web GUI or TFTP, and SYSLOG and LLDP support monitoring. The switch operates from 0 to 40 C and weighs 1.75 kg.
Key capabilities
- Four copper, four fiber
- Four Gigabit RJ-45 ports and four dual-speed 100/1000 SFP slots give an equal split for mixed copper and fiber workgroups.
- Internal AC power supply
- A built-in 100-240 VAC supply removes the external adapter, simplifying installation on a wall or in a 19 in. rack with the optional brackets.
- Enterprise access security
- RADIUS 802.1X, TACACS+, SSH/SSL, DHCP snooping with option 82 and IP-MAC binding protect access on every port.
- Ring and spanning tree
- A redundant ring protection protocol plus MSTP, RSTP and STP keep fiber-linked switches running through a link failure.
- Granular traffic control
- Eight hardware queues with strict priority and WRR, plus per-port ingress and egress bandwidth allocation, let critical traffic take precedence on congested links.
How to choose the right SM4T4DPA part number
SM4T4DPA is a single switch model, so choices come down to mounting and optics. RMSM4-01 is the 19 in. rack-mount bracket for the SM4T4DPA and BRSM8-01 is its wall-mount bracket. SFP transceivers for the four 100/1000 slots are ordered separately; dual-speed slots accept either 100 Mbps or Gigabit modules, so match the module to the fiber type, distance and the device at the far end.
Configure & order
Find your SM4T4DPA part number
Every orderable SM4T4DPA configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the SM4T4DPA, organized by what it does — mounting & enclosures— each with why you'd add it.
Mounting & enclosures
2 items
RMSM4-01
RMSM4-01
19″ rack mount bracket for the SM4T4DPA network switch. Lantronix lists wall or desk fastening features and a Lifetime Warranty for this accessory.
$12.00
Ships on backorder

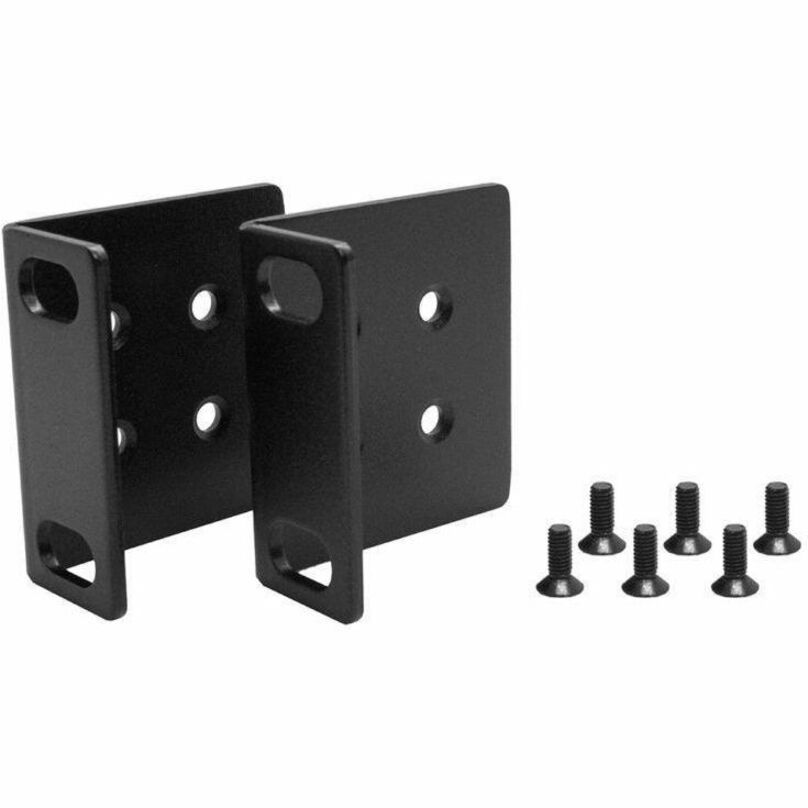

BRSM8-01
BRSM8-01
Wall mount bracket for the SM4T4DPA network switch. It securely fastens the switch to a wall or desk and carries a Lifetime Warranty.
$13.20
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the SM4T4DPA. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the SM4T4DPA is used
- Managed switching for small enterprise wiring closets
- Fiber-connected workgroups in remote buildings
- Small fiber rings linking several closets
- VLAN-segmented networks for voice and data
SM4T4DPA FAQ
What ports does the SM4T4DPA have?

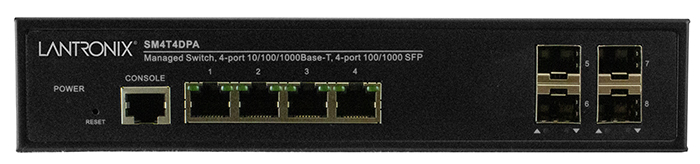

The SM4T4DPA has four 10/100/1000Base-T RJ-45 ports, four dual-speed 100/1000Base-X SFP slots and one RJ-45 console port for local CLI access. SFP transceivers are not included and are chosen to match the fiber.
How is the SM4T4DPA powered?

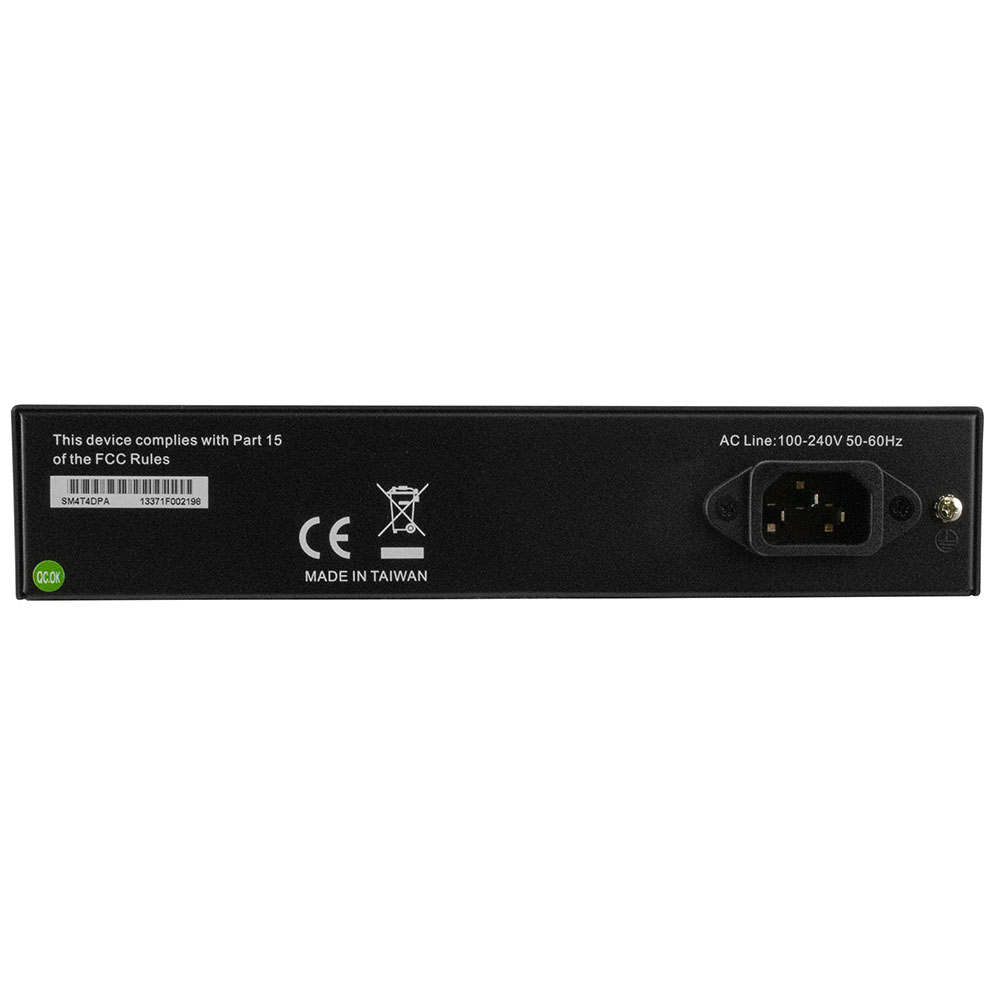

It has an internal power supply accepting 100-240 VAC, so no external adapter is needed. The switch operates from 0 to 40 C at 5% to 90% non-condensing humidity.
Can the SM4T4DPA be rack or wall mounted?
Yes. The RMSM4-01 is a 19 in. rack-mount bracket for the SM4T4DPA and the BRSM8-01 is a wall-mount bracket. The switch measures 220 x 159 x 44 mm and weighs 1.75 kg.
Does the SM4T4DPA support IPv6 and VLANs?
Yes. It supports an IPv4/IPv6 dual protocol stack and 4096 VLAN entries, including port-based, 802.1Q tagged, Q-in-Q double tag, MAC-based, private VLAN edge and guest VLANs.
