Lantronix XPress-Pro SW Hardened Unmanaged Industrial Switches
Unmanaged 8-port Fast Ethernet DIN-rail switches in an aluminum case, rated -34°C to 74°C with redundant DC inputs, for factory floors, traffic cabinets and hazardous locations.
From $230.72
Overview
About the Lantronix XPress-Pro SW
XPress-Pro SW (also written xPress Pro SW) is in Last Time Buy status; the source does not name a replacement. The orderable models are the XPress-Pro SW 92000 Series, plug-and-play unmanaged switches for industrial automation and field cabinets where a commercial switch would not survive the temperature, vibration or electrical noise.
The 92000 provides eight 10/100Base-TX ports with auto-negotiation and auto MDI/MDIX, and the 92012F version adds one 100Base-FX multimode SC fiber port (1310 nm, 62.5/125, 2 km typical, 15 dB budget). Switching is store-and-forward at full wire speed with a 2048-entry MAC table, 768 Kb buffer and latency under 7.1 μs. Dual redundant 10-48 VDC inputs feed the switch, and a relay output (1 A at 24 VDC) signals power or port link failure. Operating range is -34°C to 74°C in a hardened aluminum case.
The 92000 is UL 1604 classified for Class 1, Division 2, Groups A, B, C and D hazardous locations, meets NEMA TS1 and TS2 requirements for traffic control equipment, and complies with IEC 61000-6-2 industrial immunity. It mounts on DIN rail with the included kit or on a wall with the optional X9294PMKT-01 kit.
Key capabilities
- -34°C to 74°C operation
- Rated -34°C to 74°C (-29°F to 165°F) with 10% to 95% non-condensing humidity, in a hardened aluminum case rated for 5G vibration.
- Redundant DC power
- Dual 10-48 VDC inputs with a relay alarm output for power failure and port link failure. Max consumption is 18.48 W.
- Hazardous-location rated
- UL 1604 classified for Class 1, Division 2, Groups A, B, C and D, temperature code T4A.
- Traffic cabinet ready
- Meets NEMA TS1 and TS2 environmental requirements for traffic control equipment, plus IEC 60068 vibration, shock and free-fall tests.
- Optional fiber uplink
- The 92012F adds a 100Base-FX multimode SC port reaching 2 km typical at 1310 nm, with a 15 dB optical budget.
How to choose the right XPress-Pro SW part number
X92000001-01 is the XPress-Pro SW 92000: eight 10/100Base-TX copper ports. X92012011-01 is the 92012F: the same eight copper ports plus one 100Base-FX multimode SC fiber port for runs up to 2 km typical on 62.5/125 fiber. Both share the -34°C to 74°C rating, redundant 10-48 VDC inputs and relay alarm. If the cabinet has only AC mains, add the X3024DR00-01, a hardened 24 VDC 1.5 A DIN-rail power supply. Both switches are Last Time Buy.
Configure & order
Find your XPress-Pro SW part number
Every orderable XPress-Pro SW configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
X92000001-01
$230.72
Ships on backorder
X92012011-01
$316.23
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the XPress-Pro SW, organized by what it does — power— each with why you'd add it.
Power
1 item

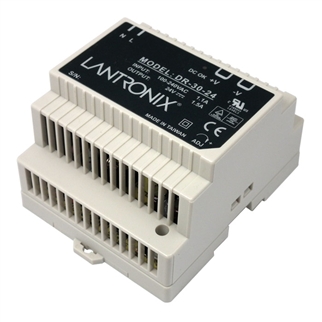

X3024DR00-01
X3024DR00-01
Hardened DIN Rail power supply with 30 Watts 24VDC output. It is a Power Supply accessory for the XPress-Pro SW series.
$126.93
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the XPress-Pro SW. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the XPress-Pro SW is used
- Traffic signal cabinets requiring NEMA TS1/TS2 compliance
- Class 1 Division 2 hazardous-location control panels
- PLC and HMI networks on factory-floor DIN rails
- Fiber link between distant cabinets up to 2 km
XPress-Pro SW datasheets & documentation
XPress-Pro SW FAQ
Is the Lantronix XPress-Pro SW discontinued?
XPress-Pro SW is in Last Time Buy status. The source does not name a successor, so plan remaining quantities accordingly. The orderable models are the 92000 (X92000001-01) and 92012F (X92012011-01).
What is the difference between X92000001-01 and X92012011-01?
X92000001-01 has eight 10/100Base-TX ports. X92012011-01 (the 92012F) adds one 100Base-FX multimode fiber port with an SC connector, rated 2 km typical at 1310 nm on 62.5/125 fiber.
What power input does the XPress-Pro SW 92000 need?
Redundant 10 to 48 VDC inputs, with maximum consumption of 18.48 W. The X3024DR00-01 DIN-rail supply provides 24 VDC from 85-264 VAC or 120-370 VDC.
Is the XPress-Pro SW 92000 managed?
No. It is an unmanaged plug-and-play switch with auto-negotiation and auto MDI/MDIX. It provides per-port link, speed and fault LEDs and a relay alarm output.
Can the XPress-Pro SW 92000 be used in hazardous locations?
Yes. It is UL 1604 classified for Class 1, Division 2, Groups A, B, C and D hazardous locations with temperature code T4A. It also meets NEMA TS1 and TS2 for traffic control equipment.
