Lantronix C3110-1040 — 1000Base-T to SFP Media Converter
$413.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-X SFP Slot (empty)
- 1000 Mbps Layer 1 conversion passes data through at line speed
- Copper and fiber auto-negotiation
- Auto-MDI/MDIX on TP port
- Transparent Link Pass Through, Remote Fault Detect, Loopback, and Pause
- ION Platform Chassis support for use in any ION Platform Chassis
- Chassis management reporting for copper and fiber link/receive status, hardware switch settings, and receive error count

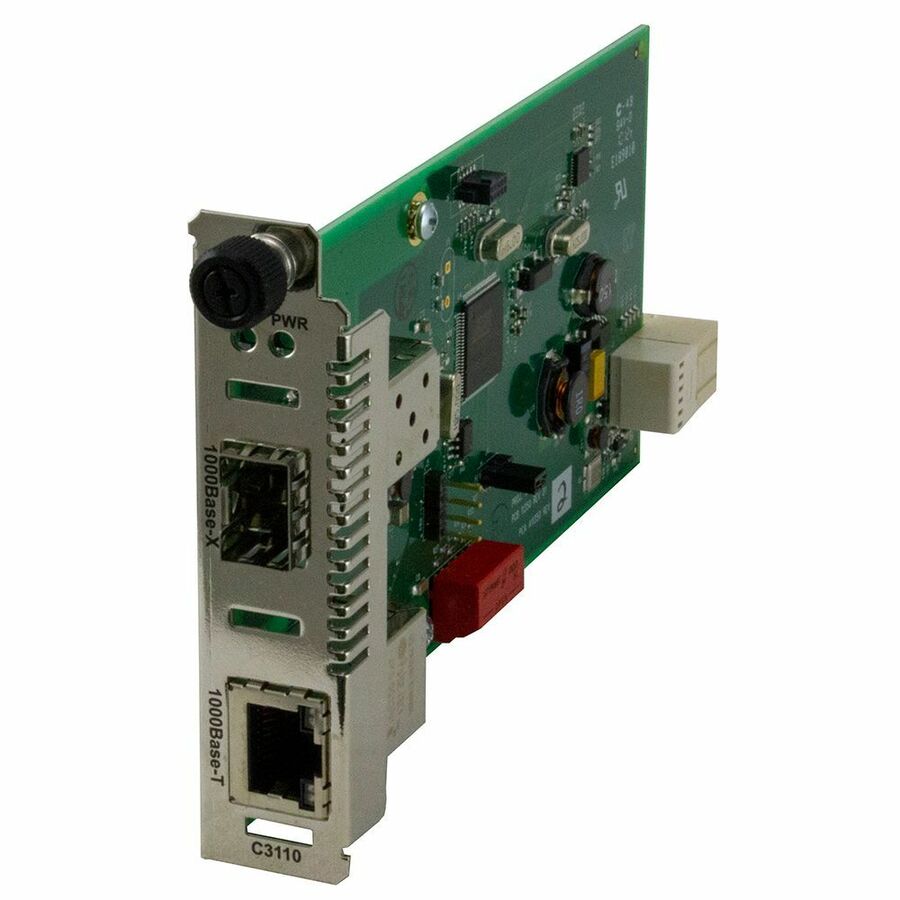

The Lantronix C3110 Series is an ION Gigabit Ethernet media converter module for integrating fiber optic cabling into 1000Base-T copper environments. The C3110-1040 configuration provides 1000Base-T (RJ-45) [100 m/328 ft.] to a 1000Base-X SFP Slot (empty). Operating at Layer 1, the physical layer, the ION C3110 passes data through the converter at line speed. It is manageable when installed in a managed ION chassis. The module supports copper and fiber auto-negotiation, Auto-MDI/MDIX on the TP port, Transparent Link Pass Through, Remote Fault Detect, Loopback, Pause, Automatic Link Restoration, and field-upgradeable firmware. Manageable features are available when used in an ION Platform chassis along with an ION Management Module.
Ideal For
- Integrating fiber optic cabling into 1000Base-T copper environments
- Pairing C3110 with lower cost 1000Base-T switches for fiber deployment
- Managed ION chassis deployments that report link/receive status and receive error count
- Layer 1 media conversion for applications where low latency is essential
Specifications
| Layer | Layer 1 |
| Series | C3110 Series |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 1000 Mbps |
| Interface | 1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-X SFP Slot (empty) |
| SFP+ Slots | 1 |
| Standards | IEEE 802.3ab; IEEE 802.3z; IEEE 802.3 2000 |
| Environment | Environment specs are dependent on the chassis chosen |
| MTBF Bellcore | Greater than 667,500 hours |
| Network Ports | 1 |
| Pwr Power LED | On = Connection to powered backplane |
| Certifications | CISPR/EN55022 Class A, FCC Class A, CE Mark, EN55024 |
| Power Consumption | 3.6 Watts, 300mA @ 112 VDC |
| Lkf Fiber Link LED | On = Fiber Link, blinking activity |
| MTBF Mil-hdbk-217f | Greater than 250,000 hours |
| Expansion Slot Type | SFP |
| Dimensions W X D X H | 0.86” [22 mm] x 6.5” [165 mm] x 3.4” [86 mm] |
| Tp LED 1 Copper Link | On = Link, blinking activity |
| Operating Temperature | 0°C to 50°C |
| Tp Led2 Copper Duplex | On = Full-Duplex |
Frequently Asked Questions
Is an SFP included with C3110-1040?▾
No. The C3110-1040 part row lists a 1000Base-X SFP Slot (empty).
What chassis does the C3110 Series module use?▾
Lantronix lists the C3110 as usable in any ION Platform Chassis. Manageable features are available when used in an ION Platform chassis along with an ION Management Module.
What media does this converter connect?▾
It provides an interface between 1000Base-T ports and 1000Base-SX/LX ports. This SKU is listed as 1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-X SFP Slot (empty).
What manageable status information is available?▾
In a managed ION chassis, it can report copper and fiber link/receive status, hardware switch settings, and receive error count to chassis management software.
