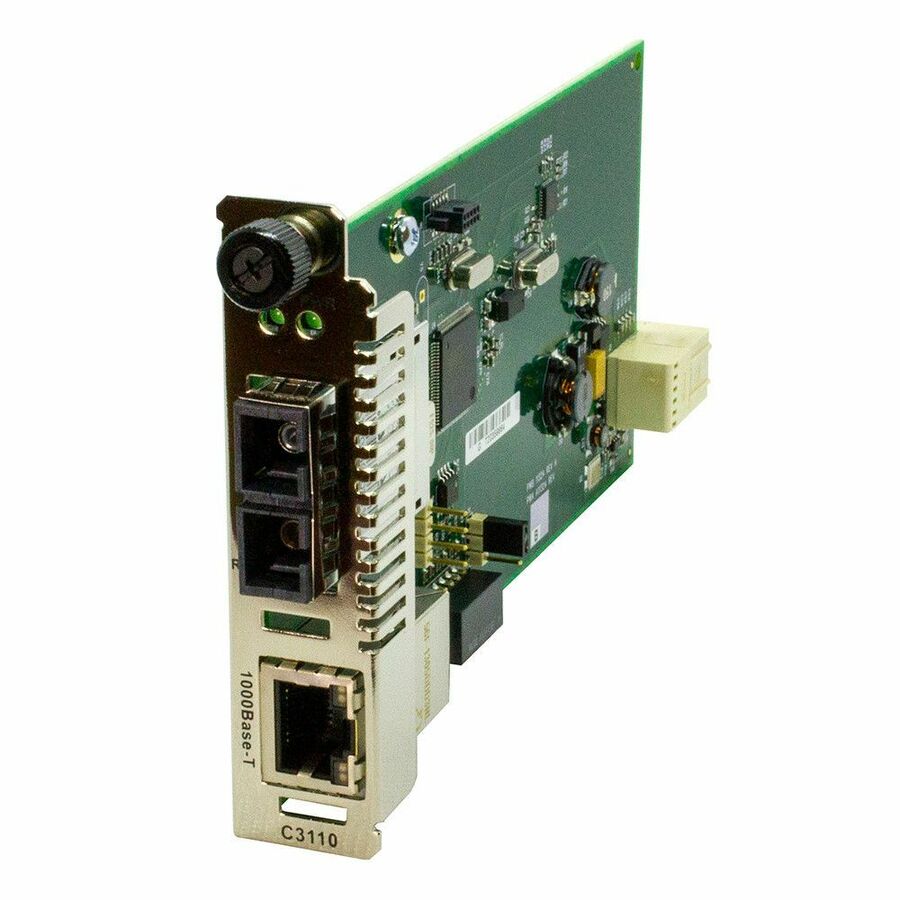

Lantronix C3110-1014 — 1000Base-T to 1000Base-LX Media Converter
$465.38$693.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-T to 1000Base-LX conversion between RJ-45 copper and 1310nm single-mode SC fiber
- 10 km/6.2 mi. fiber reach with 10.5 dB link budget
- 1000 Mbps Layer 1 operation for line-speed data pass-through
- Copper and Fiber Auto-Negotiation with Auto-MDI/MDIX on the TP port
- Transparent Link Pass Through, Remote Fault Detect, Loopback, Pause and Automatic Link Restoration
- ION Platform Chassis support with manageable features when used with an ION Management Module
The Lantronix C3110-1014 is an ION C3110 Series Gigabit Ethernet media converter module for integrating fiber optic cabling into 1000Base-T copper environments. This SKU converts 1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-LX 1310nm single mode (SC) [10 km/6.2 mi.]. The module operates at Layer 1, the physical layer, and passes data through the converter at line speed. It supports Copper and Fiber Auto-Negotiation, Auto-MDI/MDIX on the TP port, Transparent Link Pass Through, Remote Fault Detect, Loopback, Pause, Automatic Link Restoration and field upgradeable firmware. The ION C3110 is a manageable device when installed in a managed ION chassis. Manageable features are available when used in an ION Platform chassis along with an ION Management Module.
Ideal For
- Adding 1000Base-LX single-mode fiber to 1000Base-T copper environments
- Pairing C3110 with 1000Base-T switches for fiber deployment
- Low-latency Layer 1 media conversion applications
- Managed ION chassis deployments that need converter status reporting
Specifications
| MTBF | Greater than 250,000 hours (MIL-HDBK-217F); Greater than 667,500 hours (Bellcore) |
| Depth | 6.5” [165 mm] |
| Width | 0.86” [22 mm] |
| Height | 3.4” [86 mm] |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 1000 Mbps, Layer 1 |
| Operating | 0°C to 50°C |
| Standards | IEEE 802.3ab; IEEE 802.3z; IEEE 802.3 2000 |
| Link Budget | 10.5 dB |
| Fiber Interface | 1000Base-LX 1310nm single mode (SC) [10 km/6.2 mi.] |
| Copper Interface | 1000Base-T (RJ-45) [100 m/328 ft.] |
| Power Consumption | 3.6 Watts, 300mA @ 112 VDC |
Frequently Asked Questions
What media does the C3110-1014 convert?▾
It converts 1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-LX 1310nm single mode (SC) [10 km/6.2 mi.].
Is this media converter manageable?▾
Yes. The ION C3110 is a manageable device when installed in a managed ION chassis. Manageable features are available when used in an ION Platform chassis along with an ION Management Module.
Can it be used in an ION Platform Chassis?▾
Yes. The C3110 Series can be used in any ION Platform Chassis.
What operating temperature is specified?▾
The operating range is 0°C to 50°C. The source notes that environment specs are dependent on the chassis chosen.
