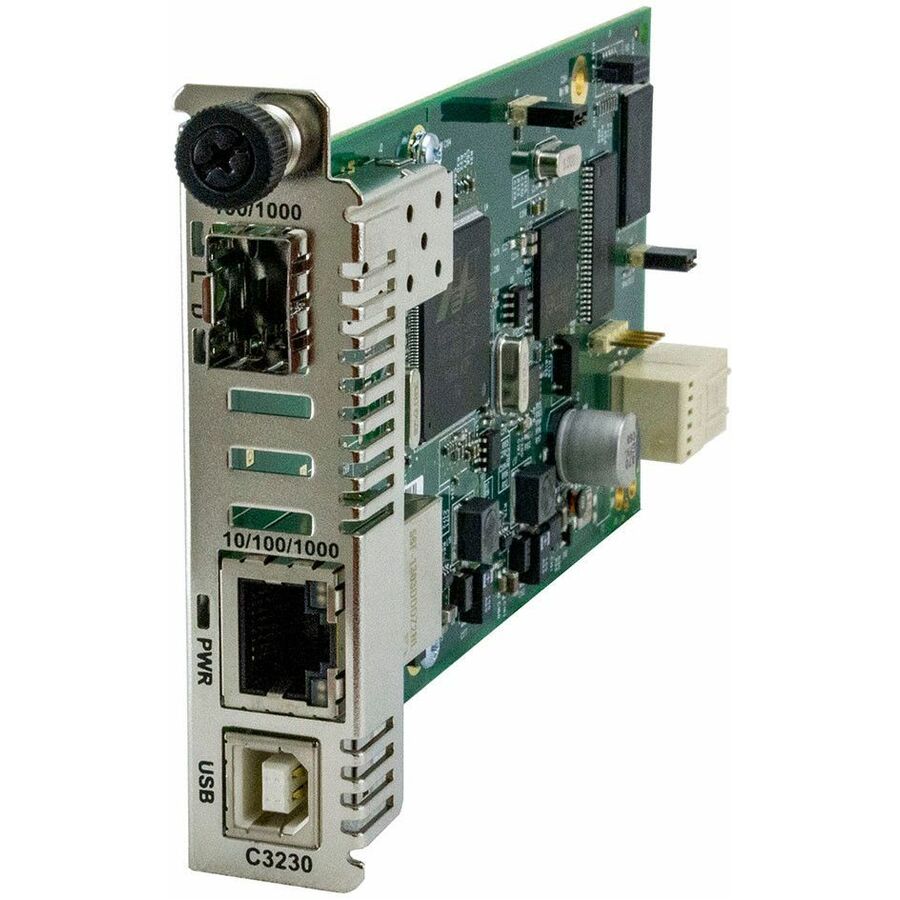

Lantronix C3230-1040 — Media Converter 1 SFP Slot
$867.41$1,292.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T (RJ-45) [100 m] to (1) 100/1000Base-X SFP Slot (empty)
- IP-Based Remote Management In-Band (remote device managed by local peer)
- IEEE 802.3ah Link OAM and IEEE 802.1ag Service OAM
- ITU Y.1731 Performance Monitoring
- 10K Jumbo Frame Support
- IEEE 802.1Q VLAN and double VLAN tagging with 4096 VIDs
- USB port for basic setup
Lantronix C3230-1040 is an ION Gigabit Ethernet remotely managed NID module for 10/100/1000Base-T to 1000Base-X media conversion with OAM/IP-Based Management. The module provides 10/100/1000Base-T (RJ-45) [100 m] to (1) 100/1000Base-X SFP Slot (empty). It supports IEEE 802.3ah Link OAM, IEEE 802.1ag Service OAM, ITU Y.1731, 10K Jumbo Frame Support, VLAN, QoS, bandwidth profiling and DMI Optical Management. As a remotely managed device, the C3230 can be managed individually via an IP address or by the ION Management Module when installed in a managed ION chassis.
Ideal For
- Integrating fiber optic cabling into 10/100/1000 copper environments
- Providing SLA-assurance and advanced fault management on a managed multi-service NID module
- Managing a remote device in-band through a local peer
- Using USB for basic setup of the C3230 module
Specifications
| Depth | 6.5” [165 mm] |
| Width | 3.25” [82 mm] |
| Height | 1″ [25 mm] |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Standard | IEEE 802.3; IEEE 802.3ah; IEEE 802.1p; IEEE 802.1Q; IEEE 802.1ag |
| Warranty | Lifetime |
| Environment | Environment specs are dependent on the chassis chosen |
| Power Input | 100-240 VAC,1A |
| Power Output | 12 VDC, 1.25A |
| Certifications | EN55022 Class A, EN55024, UL60950,CE Mark |
| Max Frame Size | 10,240 bytes |
| Fiber Data Rate | 1000 Mbps |
| Fiber Interface | (1) 100/1000Base-X SFP Slot (empty) |
| Copper Data Rate | 10/100/1000 Mbps |
| Copper Interface | 10/100/1000Base-T (RJ-45) [100 m] |
| Filtering Addresses | 8K MAC Addresses |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
Does C3230-1040 include an SFP module?▾
No. The Lantronix part row describes this SKU as having (1) 100/1000Base-X SFP Slot (empty).
What interfaces does C3230-1040 provide?▾
It converts 10/100/1000Base-T (RJ-45) [100 m] to (1) 100/1000Base-X SFP Slot (empty).
How is the C3230 managed?▾
The C3230 can be managed individually via an IP address or by the ION Management Module when installed in a managed ION chassis.
What warranty is listed for the C3230 Series?▾
The C3230 Series tech specs list a Lifetime warranty.
