Lantronix C3231-1040 — C3230 Series NID Module
$912.04$1,358.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T (RJ-45) [100 m] copper interface
- 2 100/1000Base-X SFP Slots (empty)
- OAM/IP-Based Management for the C3230 Series NID module
- MEF 9, 14 and 21 certified C3230 Series platform
- IEEE 802.3ah Link OAM, IEEE 802.1ag Service OAM, and ITU Y.1731 support
- 10K Jumbo Frame Support
- SSH, Telnet, Command Line Interface (CLI), Web management, Focal Point Management, and SNMP v1, v2c, and v3

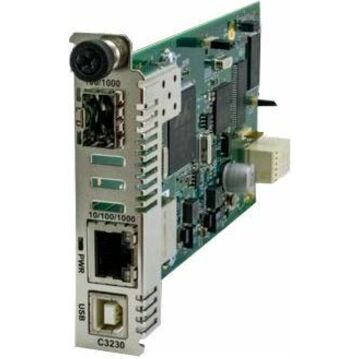

The Lantronix C3231-1040 is a C3230 Series ION Gigabit Ethernet Remotely Managed NID Module. This SKU provides 10/100/1000Base-T (RJ-45) [100 m] to (2) 100/1000Base-X SFP Slots (empty). The C3230 Series supports OAM/IP-Based Management, IEEE 802.3ah Link OAM, IEEE 802.1ag Service OAM, and ITU Y.1731. It is MEF 9, 14 and 21 certified and is designed for business Ethernet and mobile backhaul deployments. Management features listed for the series include SSH, Telnet, Command Line Interface (CLI), Web management, Focal Point Management, and SNMP v1, v2c, and v3. The series also supports IEEE 802.1Q VLAN and double VLAN tagging with 4096 VIDs, RMON counters for each port, bandwidth profiling, DMI Optical Management, and cable diagnostics for copper ports.
Ideal For
- Business Ethernet deployments using C3230 Series NID modules
- Mobile backhaul deployments using Gigabit Ethernet NIDs
- Remote OAM/IP-Based Management of copper-to-fiber Ethernet links
- SLA-assurance and advanced fault management for MEF and IEEE standards-based networks
Specifications
| Depth | 6.5” [165 mm] |
| Width | 3.25” [82 mm] |
| Height | 1″ [25 mm] |
| Series | C3230 Series |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Standard | IEEE 802.3; IEEE 802.3ah; IEEE 802.1p; IEEE 802.1Q; IEEE 802.1ag |
| Warranty | Lifetime |
| Power Input | 100-240 VAC,1A |
| Power Output | 12 VDC, 1.25A |
| Certification | EN55022 Class A; EN55024; UL60950; CE Mark |
| Max Frame Size | 10,240 bytes |
| Fiber Data Rate | 1000 Mbps |
| Fiber Interface | (2) 100/1000Base-X SFP Slots (empty) |
| Copper Data Rate | 10/100/1000 Mbps |
| Copper Interface | 10/100/1000Base-T (RJ-45) [100 m] |
| Filtering Addresses | 8K MAC Addresses |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
Are SFP modules included with C3231-1040?▾
No. The Lantronix part row lists (2) 100/1000Base-X SFP Slots (empty). SFP Modules are listed as compatible accessories.
What copper interface does this module provide?▾
The listed copper interface is 10/100/1000Base-T (RJ-45) [100 m].
What management options are listed for the C3230 Series?▾
The C3230 Series lists OAM/IP-Based Management, IEEE 802.3ah Link OAM, IEEE 802.1ag Service OAM, ITU Y.1731, SSH, Telnet, CLI, Web management, Focal Point Management, and SNMP v1, v2c, and v3.
What operating temperature is listed?▾
The listed operating range is 0°C to 50°C. Lantronix notes that environment specs are dependent on the chassis chosen.
