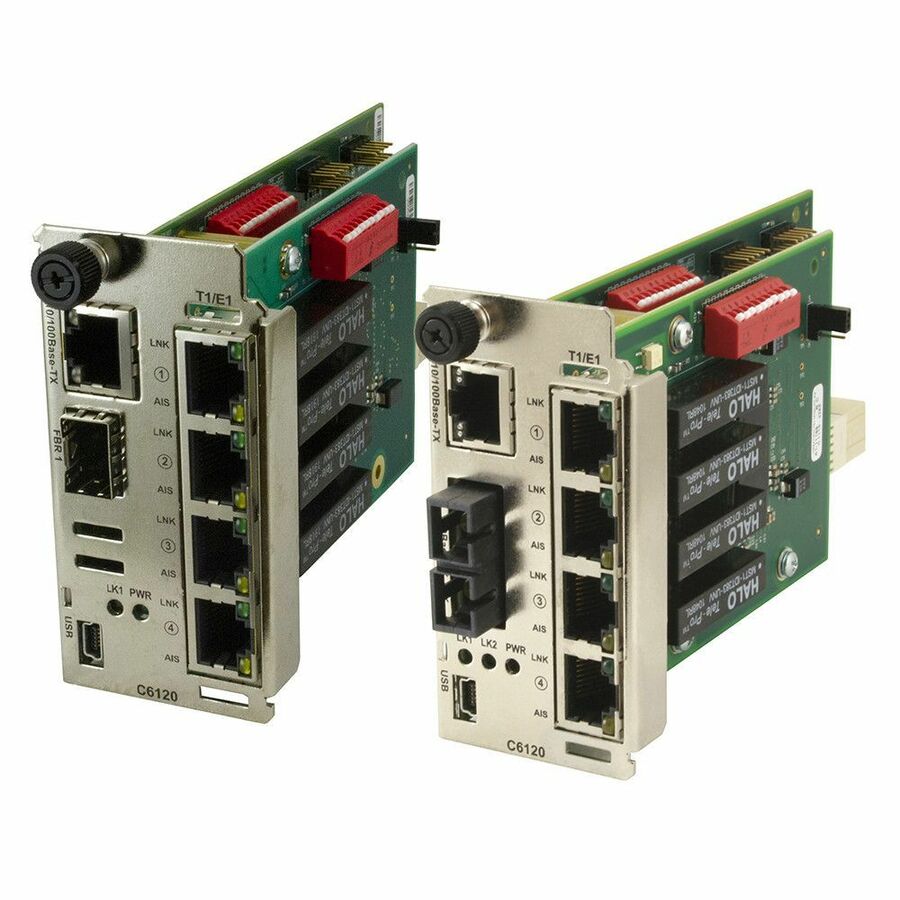

Lantronix C6120-1014 — T1/E1/J1 Media Converter Module
$973.53$1,450.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 4 RJ-48 copper interfaces for DS1 – T1/E1/J1 connections
- 1 RJ-45 10/100Mbps Ethernet port with Auto-MDI/MDIX
- 1310nm single mode (SC) fiber interface with 20 km/12.4 mi. distance
- 16.0 dB link budget for the listed fiber connection
- Local and remote loopbacks plus loopback via test set
- Remote management and remote firmware upgrade
- Power, Port Status, Loopback and AIS LEDs for device status and troubleshooting
The Lantronix C6120-1014 is an ION C6120 Series managed T1/E1/J1 mux media converter module. It extends multiple T1/E1/J1 connections, along with a 10/100 Ethernet connection, over fiber. This SKU provides 1310nm single mode (SC) fiber with a listed 20 km/12.4 mi. distance and 16.0 dB link budget to (4) RJ-48 [1.5 km/0.9 mi.] plus 10/100Base-TX (RJ-45) [100m]. The C6120 converter must be used in pairs. A typical installation includes a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6120 in a remote location. The C6120 Series supports local and remote loopbacks, settings for line code, line build out, loopbacks and Alarm Indication Signal (AIS), access to complete status and configuration on local and remote device, remote firmware upgrade, and remote management.
Ideal For
- Extending multiple T1/E1/J1 connections over fiber
- Carrying DS1 – T1/E1/J1 plus 10/100 Ethernet over the same fiber link
- Linking a modular card in a managed ION chassis to a stand-alone S6120 in a remote location
- Using local and remote loopbacks for service testing and troubleshooting
Specifications
| MTBF | 687,500 hours (Bellcore) |
| Series | C6120 Series |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Loopback | Loopback via test set |
| Warranty | Lifetime |
| Dimensions | 1.72” [44 mm] x 6.5” [165 mm] x 3.4” [86 mm] |
| Link Budget | 16.0 dB |
| Status Leds | Power, Port Status, Loopback and AIS |
| E1 Data Rate | 2.048Mb/s |
| Flow Control | Pause (Flow Control on Ethernet port) |
| Auto-mdi Mdix | Supported |
| Ethernet Port | (1) RJ-45 10/100Mbps Ethernet port |
| Certifications | EN55022 Class A, EN55024, CE mark |
| Fiber Distance | 20 km/12.4 mi. |
| RJ-45 Distance | 100m |
| Rj-48 Distance | 1.5 km/0.9 mi. |
| Fiber Interface | 1310nm single mode (SC) |
| Switch Settings | Line coding, line build out, loopback and AIS |
| Power Consumption | 6 Watts (max: dual fiber model); 5.5 Watts (max: single fiber model) |
| Remote Management | Supported |
| Pairing Requirement | Must be used in pairs |
| Copper Port Data Rate | T1(J1) = 1.544Mb/s |
| Operating Temperature | 0°C to 50°C |
| Ethernet Port Data Rate | 10/100Mbps |
| Remote Firmware Upgrade | Supported |
| Rj-48 Copper Interfaces | (4) RJ-48 |
| Network Interface Device | ION DS1 – T1/E1/J1 |
| Local And Remote Loopbacks | Supported |
Frequently Asked Questions
What interfaces does C6120-1014 include?▾
C6120-1014 includes (4) RJ-48 ports, (1) 10/100 Ethernet port, and (1) fiber port. The part row lists 10/100Base-TX (RJ-45) [100m] and 1310nm single mode (SC) fiber.
Does the C6120 converter need to be used in pairs?▾
Yes. The C6120 converter must be used in pairs.
What fiber type and distance does this SKU support?▾
This SKU is listed as 1310nm single mode (SC) with a 20 km/12.4 mi. distance and a 16.0 dB link budget.
Does the C6120 Series support remote management?▾
The C6120 Series supports remote management and remote firmware upgrade, with access to complete status and configuration on the local and remote device.
