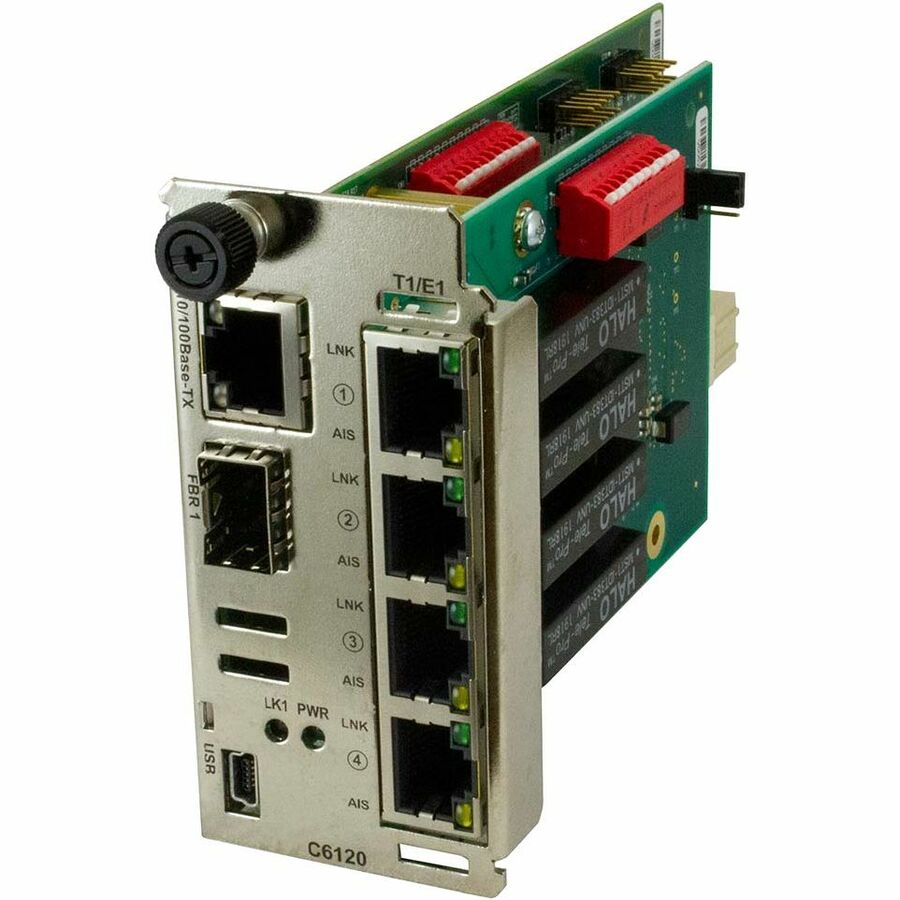

Lantronix C6120-1040 — Media Converter Module
$789.68$1,176.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 4 RJ-48 copper interfaces for T1/E1/J1 connections
- 1 SFP port, empty, for the fiber interface
- 1 RJ-45 10/100Mbps Ethernet port with Auto-MDI/MDIX
- Local and remote loopbacks for testing
- LEDs for Power, Port Status, Loopback and AIS
- Remote management with remote firmware upgrade
- Line code, line build out, loopback and AIS settings
The Lantronix C6120-1040 is a managed T1/E1/J1 mux media converter module for extending multiple T1/E1/J1 connections, along with a 10/100 Ethernet connection, over fiber. This C6120 Series configuration provides 1 SFP port (Empty) to 4 RJ-48 ports [1.5 km/0.9 mi.] plus 10/100Base-TX (RJ-45) [100m]. It is designed for the ION platform and must be used in pairs. A typical installation includes a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6120 in a remote location. SFP Modules are listed as compatible accessories.
Ideal For
- Extending multiple T1/E1/J1 connections over fiber
- Carrying 10/100 Ethernet with T1/E1/J1 connections over fiber
- Pairing a managed ION chassis module with a stand-alone S6120 at a remote location
- Adding remote management and remote firmware upgrade to a C6120 Series link
Specifications
| MTBF | 687,500 hours (Bellcore) |
| Series | C6120 Series |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| SFP+ Port | 1 SFP port (Empty) |
| Warranty | Lifetime |
| Standards | ANSI T1.102; T1.403; T1.408; ITU I.431; G.703; G.736; G.775; G.823; ETSI 300-166; ETSI 300-233; TBR 12/13; AT&T Pub 62411; IEEE 802.3™-2008 |
| Environment | Environment specs are dependent on the chassis chosen |
| Module Type | ION DS1 – T1/E1/J1 Network Interface Device Module |
| RJ-45 Reach | 100m |
| Rj-48 Reach | 1.5 km/0.9 mi. |
| Status Leds | Power, Port Status, Loopback and AIS |
| E1 Data Rate | E1 = 2.048Mb/s |
| Compatibility | ION Chassis |
| Ethernet Port | (1) RJ-45 10/100Mbps Ethernet port |
| Certifications | EN55022 Class A, EN55024, CE mark |
| Fiber Interface | (1) fiber interface (fixed or SFP) |
| Switch Settings | Line coding, line build out, loopback and AIS |
| SFP+ Port Data Rate | 100Base-X/OC-3 |
| Copper Port Data Rate | T1(J1) = 1.544Mb/s |
| Operating Temperature | 0°C to 50°C |
| Width X Depth X Height | 1.72” [44 mm] x 6.5” [165 mm] x 3.4” [86 mm] |
| Ethernet Port Data Rate | 10/100Mbps |
| Rj-48 Copper Interfaces | (4) |
| Dual Fiber Model Power Consumption | 6 Watts (max: dual fiber model) |
| Single Fiber Model Power Consumption | 5.5 Watts (max: single fiber model) |
Frequently Asked Questions
Does the C6120-1040 need to be used in pairs?▾
Yes. The C6120 Series features state that the C6120 converter must be used in pairs.
Does C6120-1040 include an SFP module?▾
No. The part row lists C6120-1040 with 1 SFP port (Empty). SFP Modules are listed as compatible accessories.
What interfaces are on the C6120-1040?▾
C6120-1040 includes 4 RJ-48 ports, 1 RJ-45 10/100Mbps Ethernet port and 1 SFP port (Empty).
What data rates does the C6120 Series support?▾
The RJ-48 copper ports support T1(J1) = 1.544Mb/s and E1 = 2.048Mb/s. The RJ-45 Ethernet port supports 10/100Mbps, and the empty SFP port supports 100Base-X/OC-3.
