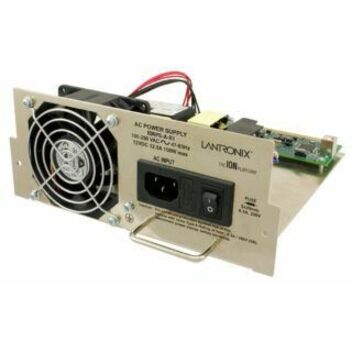

Lantronix IONPS-A-R1-NA — AC Power Supply Module
$346.18$509.00
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Monday, Oct 19
New, with full manufacturer warranty
Key Features
- 100 – 240 VAC power input with 47 – 63 Hz operation
- Up to 10 Watts power consumption
- Up to 2 power supply modules in the ION219-A 19-slot chassis
- Instant fail-over operation when used as a second power supply
- 0°C to 50°C operating range
- Lifetime warranty
- Keep Lantronix ION systems running with dedicated AC power delivery
- Support modular infrastructure deployments with a platform-matched supply
The Lantronix IONPS-A-R1-NA is an AC power supply module for the ION 19-slot chassis, ION219-A. The ION Platform supports a variety of network interface devices for carrier class and enterprise network applications. The ION 19-slot chassis can support up to two power supply modules mounted in the rear of the chassis. A single power supply can power all devices installed in the chassis. For redundant power, a second power supply can be added. In that configuration, the power supplies operate in an instant fail-over mode and can be installed in either an AC or DC powered chassis.
Ideal For
- Powering devices installed in a Lantronix ION219-A 19-slot chassis
- Adding a second power supply for instant fail-over redundancy
- Supporting carrier class network applications using the ION Platform
- Supporting enterprise network applications with multiple points of fiber integration
Specifications
| MTBF | Greater than 25,000 hours (MIL-HDBK-217F); Greater than 68,750 hours (Bellcore7 V5.0) |
| Depth | 3” [76.2 mm] |
| Width | 1.63″ [41.4 mm] |
| Height | 9.75” [247.7 mm] |
| Weight | 3.4 lbs. [1.5 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Power Input | 100 – 240 VAC, 47 – 63 Hz, 3.5 A @ 100 VAC |
| Product Type | Power Supply |
| Certification | UL Listed (UL60950); FCC Class A; CISPR Class A; CE Mark |
| Power Consumption | Up to 10 Watts |
| Compatible Chassis | 19-slot ION chassis, ION219-A |
| Operating Temperature | 0°C to 50°C |
| Power Supply Modules Per Chassis | Up to 2 |
Documentation
Frequently Asked Questions
What chassis is the IONPS-A-R1-NA used with?▾
It is an AC power supply module for the Lantronix ION 19-slot chassis, ION219-A.
How many power supply modules can be used in the ION219-A chassis?▾
Up to 2 power supply modules can be used in the 19-slot ION chassis, ION219-A.
What AC input does this power supply support?▾
Its power input is 100 – 240 VAC, 47 – 63 Hz, 3.5 A @ 100 VAC.
Can this power supply support redundant operation?▾
Yes. The ION 19-slot chassis can be made redundant with a second power supply, and the power supplies operate in an instant fail-over mode.
